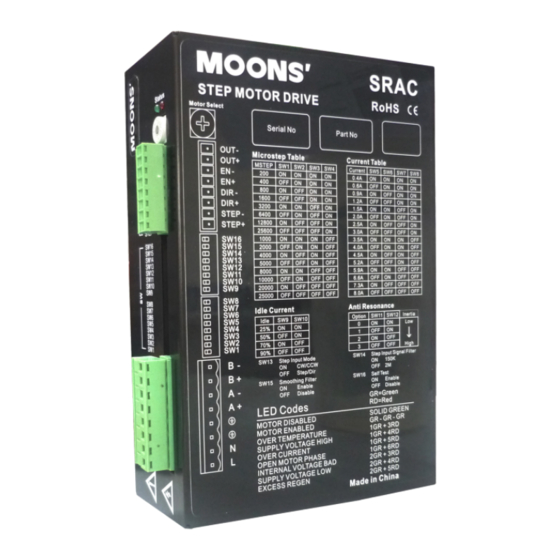

SRAC8
AC Input Step Motor Drive

Requirements

To use the SRAC8 Step Drive, the following items
are needed:
• Universal AC input of 80 to 265 VAC
• Pulse & Direction signal
• A compatible step motor

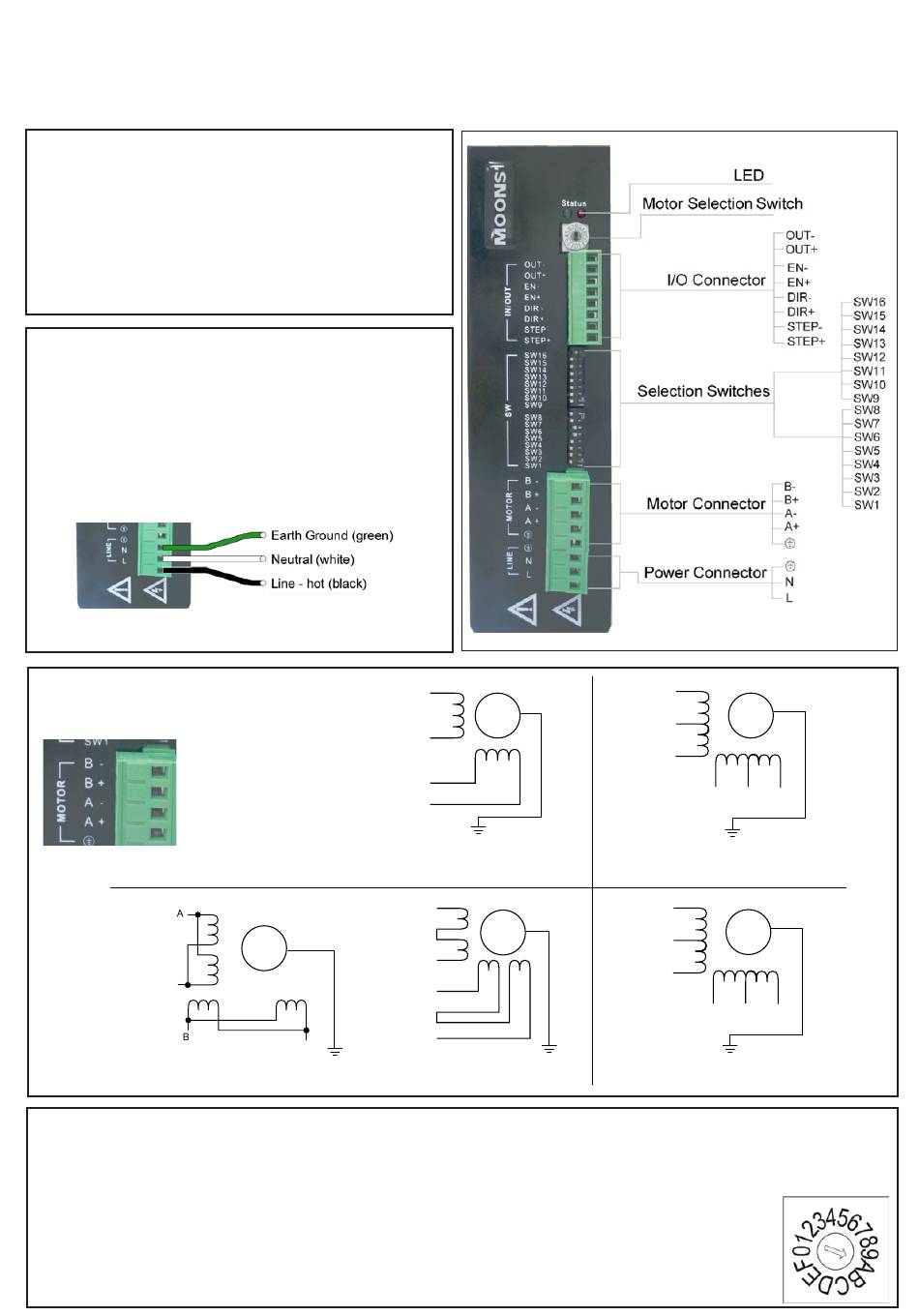

Connect to Power

Use the supplied connector to connect to the AC
supply according to the diagram below. Use 16
AWG wire for Line (L) and Neutral (N). Use 14 AWG
for Earth Ground (G).
The SRAC8 has an internal 10A fast acting fuse.
Care should be taken when working with high voltages.

Connecting to a Motor

Connect the drive to the motor. Four lead
motors can be connected
in only one way. If using a
non MOONS' motor,
consult the motor specs
for wiring information.
Green
Brown
C
Yellow
Gray
8-Lead Parallel Connected

Selecting the Motor

Each position of the 16-bit rotary selects a different motor, automatically setting the configuration parameters
in the drive. The SRAC8 drive comes programmed with up to 16 typical motors as factory defaults. Drives
can be customized with specially selected motors when required. Available options are listed
on the drive label. Each motor in the loaded database has unique settings to optimize the anti-
resonance.
If the motor selection is changed, the drive power supply will need to be cycled.
1
2
3
White
8 LEAD
MOTOR
Red
Blue
Pink
D
Black A+
4 LEAD
MOTOR
Green A-
Red B+
Blue B-
4-Lead Biploar Motor
White A
8 LEAD
Brown
MOTOR
Green
Yellow C
Gray B
Pink
Blue
Red D
8-Lead Series Connected
4
Quick Set-Up Guide
Black A+
6 LEAD
MOTOR
Yellow A-
Green NC
B+
Red
6-Lead Center Tap Connected
Black A+
6 LEAD
MOTOR
Yellow NC
Green A-
B+
Red
6-Lead Series Connected
B-
NC
White
Blue
NC
B-
White
Blue
