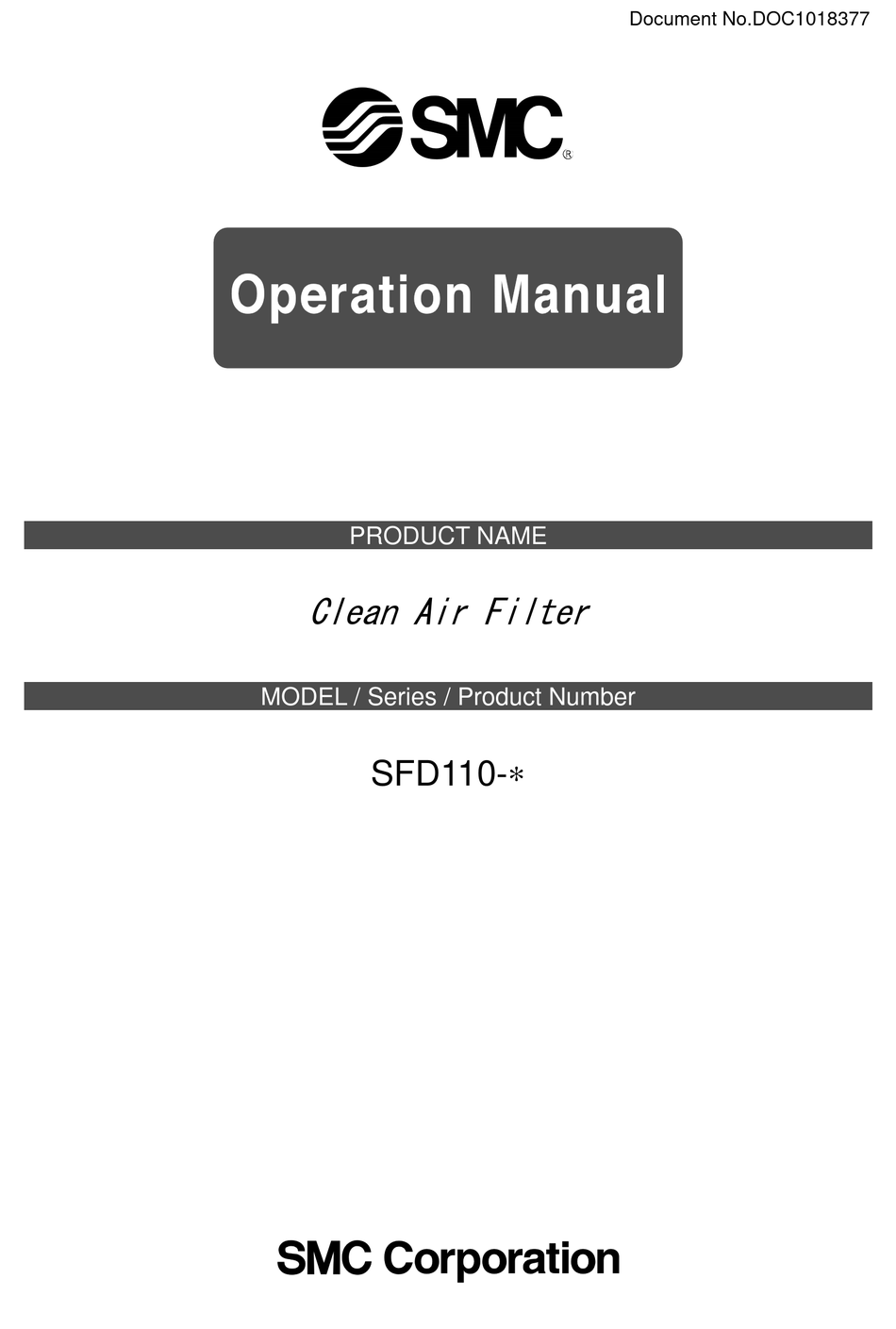

- Page 1 Document No.DOC1018377 PRODUCT NAME Clean Air Filter MODEL / Series / Product Number SFD110-∗...
-
Page 2: Table Of Contents
Document No.DOC1018377 Contents Safety Instructions 1. Application 2. Standard specification 3. How to order 4. Construction and Replacement parts 5. Maintenance 6. How to mount 7. Dimensions... -
Page 3: Safety Instructions
Document No.DOC1018377 Safety Instructions These safety instructions are intended to prevent hazardous situations and/or equipment damage. These instructions indicate the level of potential hazard with the labels of “Caution,” “Warning” or “Danger.” They are all important notes for safety and must be followed in addition to International Standards (ISO/IEC) , and other safety regulations. - Page 4 Document No.DOC1018377 Safety Instructions Caution The product is provided for use in manufacturing industries. The product herein described is basically provided for peaceful use in manufacturing industries. If considering using the product in other industries, consult SMC beforehand and exchange specifications or a contract if necessary.
- Page 5 Document No.DOC1018377 Selection Warning (1) Thoroughly and carefully confirm the purpose of use, required specifications and operating conditions (fluid, pressure, flow rate, nominal filtration rating and environment) then select a model within the specifications. (2) The product is not certified under the High Pressure Gas Safety law, so for nitrogen, its maximum operating pressure will be 0.99 MPa (gauge pressure).
- Page 6 Document No.DOC1018377 Caution (1) If the pressure difference (pressure drop) between the inlet and the outlet exceeds 0.1 MPa, it can cause damage to the product. (2) Do not install the product in a place where it can be affected by a pulsation (including surge pressure) of over 0.1 MPa.
- Page 7 Document No.DOC1018377 Maintenance Warning (1) Follow the maintenance procedures in the operation manual. If handled incorrectly equipment or device can be damaged or cause a malfunction. (2) When removing the product, exhaust the air and ensure the air is released to atmosphere before removing it.
-
Page 8: Application
Document No.DOC1018377 1. Application This product aims at eliminating solid foreign matter in the air line. 2. Standard specification Model SFD110 One-touch fittings φ 4, φ 6, φ 8 Port size Rc, NPT, G1/4 Air flow capacity Up to 120L/min(ANR) Fluid Air, Nitrogen Note1) -
Page 9: Construction And Replacement Parts
Document No.DOC1018377 4. Construction and Replacement parts SFD110-C** SFD110-*02* Component Parts Description Material － Element Cover O-ring HNBR Clean One-touch fittings PP, EPDM, Stainless steel Bracket Replacement Parts Description Material Note Bracket set SFD-BR100 With 2 countersunk head screw (M3) 5. -
Page 10: Dimensions
Document No.DOC1018377 7. Dimensions SFD110-C** SFD110-C** dimensions Model SFD110- SFD110-*02* Bracket mounting dimensions Hole shape for bracket mounting *Use a countersunk head screw (M3) for bracket mounting... - Page 11 Document No.DOC1018377 Revision history 4-14-1, Sotokanda, Chiyoda-ku, Tokyo 101-0021 JAPAN Tel: + 81 3 5207 8249 Fax: +81 3 5298 5362 https://www.smcworld.com Note: Specifications are subject to change without prior notice and any obligation on the part of the manufacturer. ©...
