INSTALLATION

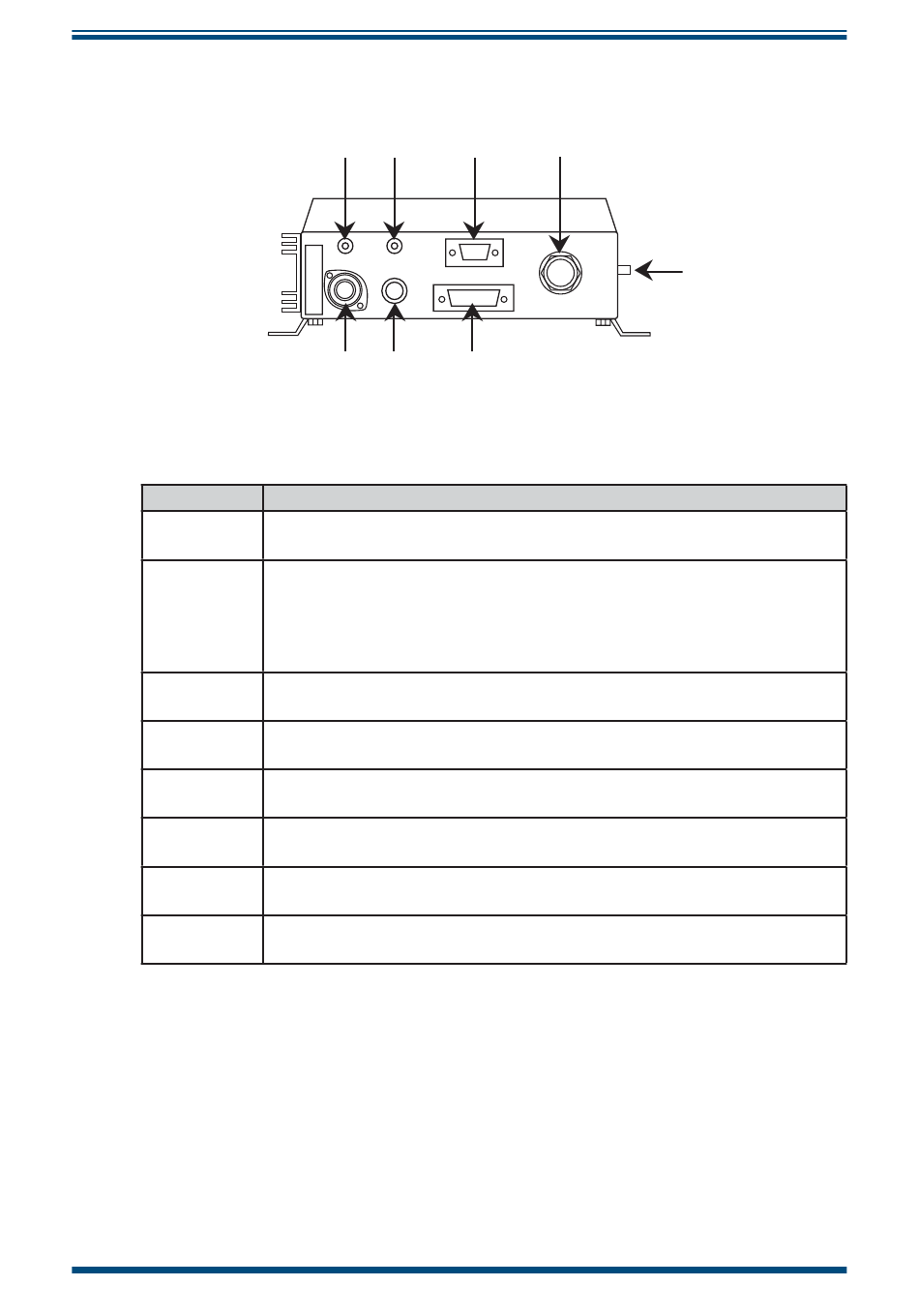

Bottom Panel
Number
1
2
3
4
5
6
7
8
4
1
2
6
7
Description
Power LED
Indicates that the Optidew is powered.
Status LED
Lit to indicate instrument is in DCC or DATA HOLD mode.
Flashes in the event of an Optics fault. This normally means the mirror
needs cleaning, followed by resetting the mirror condition during a DCC
cycle. Refer to Section 5 for more details.
Serial Connector
For digital serial communications. Refer to Section 2.4.
Sensor Connector
Used for connecting the Optidew sensor via the sensor cable.
Mounting Point
For integral sensor version.
Power Connector
Universal power input 90 to 264 V AC OR 127 to 370 V DC, 47 to 440 Hz
Temperature Connector
For connection of remote PT100 temperature probe.
Output Connector
Two current outputs, and two relay connections. Refer to Section 2.3.
Optidew Series User's Manual
3
4
8
97430 Issue 2, March 2017
5
