INSTALLATION

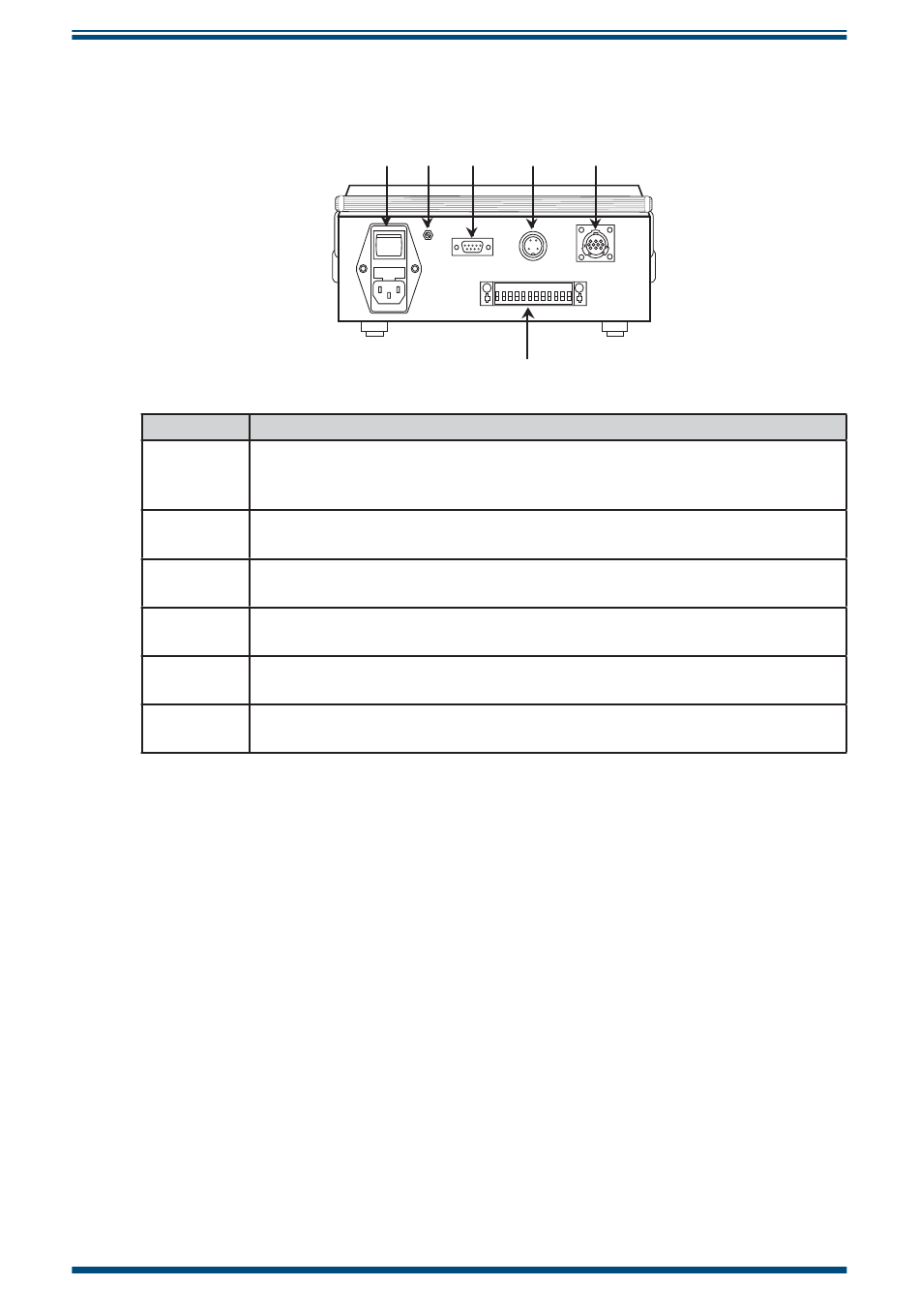

Rear Panel
Number
1
2
3
4
5
6
6
1
2
Description
Universal power input 90 to 264 V AC OR 127 to 370 V DC, 47 to 440 Hz
Features integrated ON/OFF switch, and fuse holder.
Fuse Type: 2A, Quick blow, Glass, 20 x 5mm
Mirror Condition Potentiometer
Used to adjust mirror condition during a DCC cycle. Refer to Section 3.3.7.
Serial Connector
For digital serial communications. Refer to Section 2.4.
Temperature Connector
For connection of remote PT100 temperature probe.
Sensor Connector
Used for connecting the Optidew sensor via the sensor cable.
Output Connector
Two current outputs, and two relay connections. Refer to Section 2.3.
Optidew Series User's Manual
3
4
5
6
97430 Issue 2, March 2017
