Optidew Vision

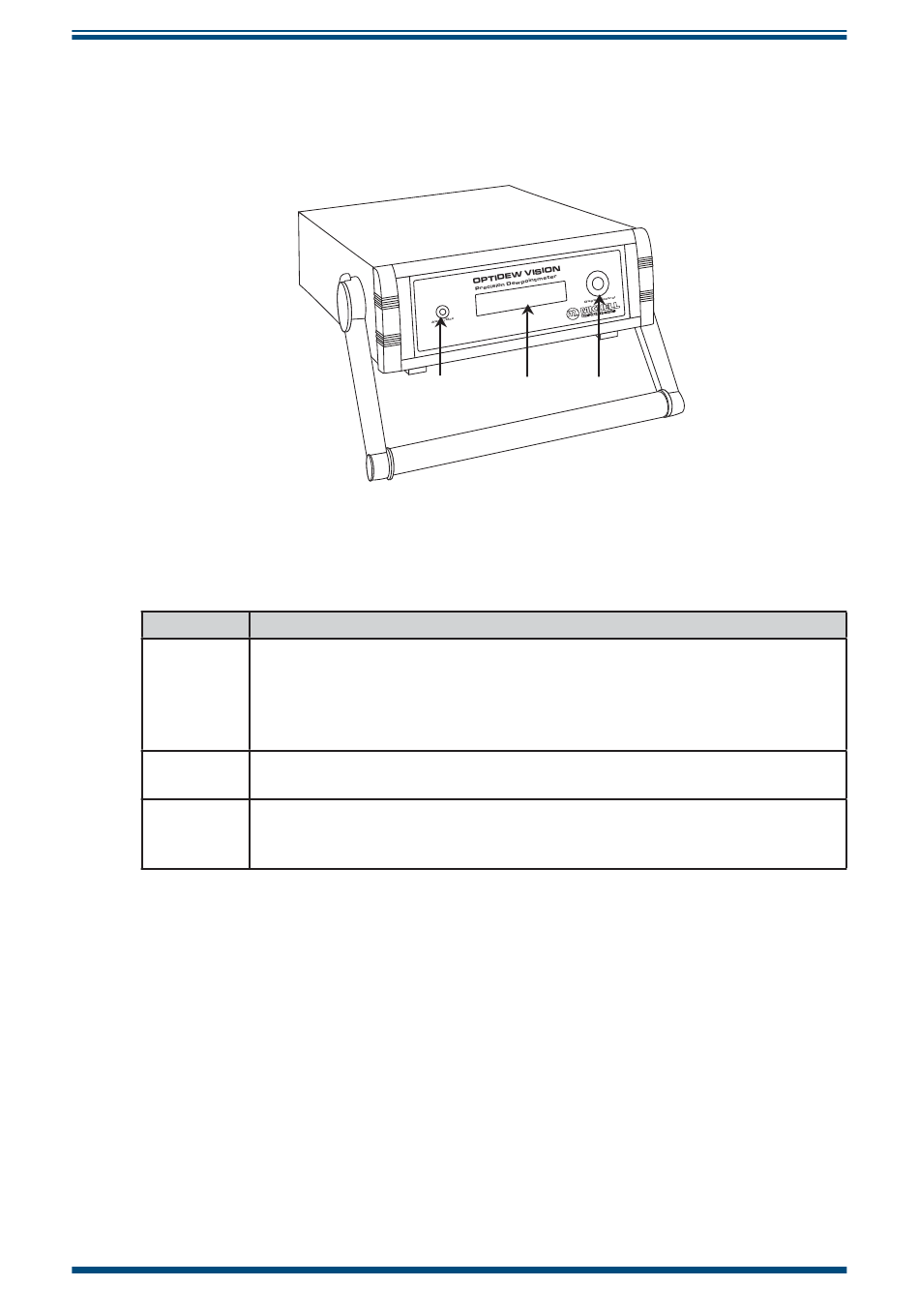

Front Panel
Number
1
2
3
Michell Instruments
Description
Status LED
Lit to indicate instrument is in DCC or DATA HOLD mode.
Flashes in the event of an Optics fault. This normally means the mirror
needs cleaning, followed by resetting the mirror condition during a DCC
cycle. Refer to Section 5 for more details.
Display
Shows measured or calculated instrument parameters. Refer to Section 3.1.
Display Control
Switches between different display screens, and puts the instrument in
REMOTE Mode. Refer to Section 3.2.
1
2 3
INSTALLATION
5
