5. Software Control - Lightware Device Controller
5.12. The Built-in Miniweb

DEFINITION: The miniweb is a dedicated location in the memory where an HTML file can be uploaded
to. If the http://<IP_address>/index.html page or the http://<host_name>/index.html is
opened in a web browser the file is displayed.

ATTENTION! The Miniweb is available from FW package v1.1.1b8. The default control page can installed
in the device during the first firmware update process by the user if the necessary parameter is enabled.
See the Step 3. Check the update parameters.
The default control page allows the followings:
▪ Source selection: This block can be used to select an input or enable/disable the Autoselect remotely
e.g. from a mobile device.
▪ Action triggers: The action trigger buttons can be used to perform a configured Event Action without
waiting for the condition to occur. This can be done remotely by a mobile device, too.

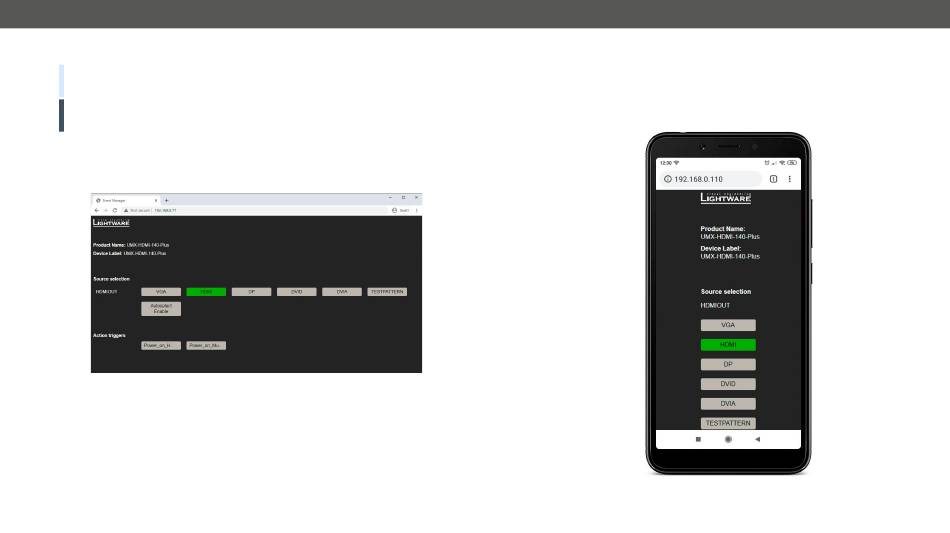

The Control Page Displayed in a Desktop Browser (with Action Trigger Buttons)
#miniweb #builtinweb #web
section.
Applied firmware package: v1.3.0b5 | LDC software: v2.5.6b2
UMX-HDMI-140 series– User's Manual
5.12.1. Opening the Miniweb
The Miniweb is available by:
Opening a web browser and typing the http://<IP_address>.index.html or the http://<IP_address> in the
▪
address line, or
▪ Launching the LDC, connecting to the device, navigating to Settings/Status and pressing the Open
miniweb button.
▪ The host name can be used instead of the IP address; see the Setting the Host Name
The Control Page Displayed in a Smartphone Browser
63
section.
