5.5.5. Video Output
Click on the output port to display its properties. The most important information and settings are available
from the panel. #mute #unmute #lock #unlock #autoselect #colorspace #power5v #hdcp #signaltype
#portstatus

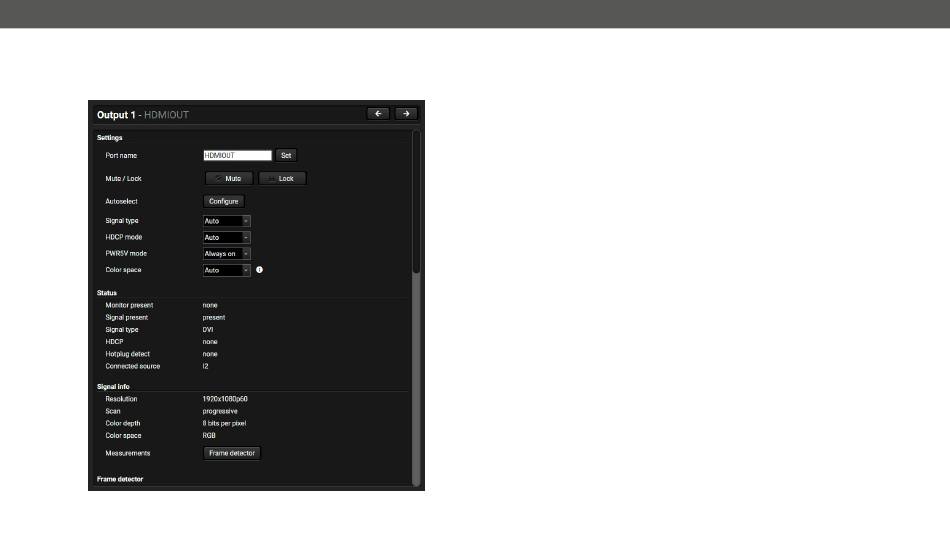

Port properties window of the HDMI video output
UMX-HDMI-140 series– User's Manual
Available settings:
▪
▪
▪
▪
▪
▪
▪
▪
▪
▪
Only in case of UMX-HDMI-140-Plus model:
▪
Applied firmware package: v1.3.0b5 | LDC software: v2.5.6b2
Mute/unmute the port;
Lock/unlock the port;
Autoselect settings: enable / disable, mode, and priorities. (See more details about Autoselect feature in
the The Autoselect Feature section);
Signal type: Auto / DVI / HDMI 24 bit / HDMI 30 bit / HDMI 36 bit - The outgoing signal format can be
selected by a drop-down menu;
HDCP mode: Auto / Always - The switcher forces the source sent the signal without encryption if the
content allows when Auto mode is selected;
Power 5V mode: Auto / Always on / Always off - The setting lets the source and the sink devices be
connected – independently from the transmitted signal;
Color space: Auto / RGB / YCbCr 4:4:4 / YCbCr 4:2:2 - The outgoing signal color space can be selected
by a drop-down menu;
#new
Connected source
Frame Detector;
Reloading factory default settings for the selected port.
CEC: See more details about the CEC feature in CEC (on HDMI Ports)
41
section.
