Connecting the System to a GPS

Your satellite TV system has a built-in GPS. If the internal GPS doesn't

operate properly, you can directly connect your boat's NMEA 0183GPS

tothesystemthroughtheACU's external GPS connector.To do this you will

need a suitable cable to connect your GPS system and the green 2-way

ACU GPS connector supplied with your Intellian i4 Inland Satellite TV

System.

To Connect the System to a GPS

1. Strip back the insulation of each cable and connect a cable to each

terminal of the 2-way connector.

2. Tighten the locking screws.

3. Connect the cable from the + (positive) terminal of the ACU GPS

connector to the NMEA OUT wire of the vessel's GPS system.

4. Connect the cable from the – (negative) terminal of the ACU GPS

connector to the Ground Wire of the vessel's GPS system.

5. Refit the ACU GPS connector to the rear of the ACU.

DC 24V

ANT RF1

RECEIVER

NMEA OUT (+)

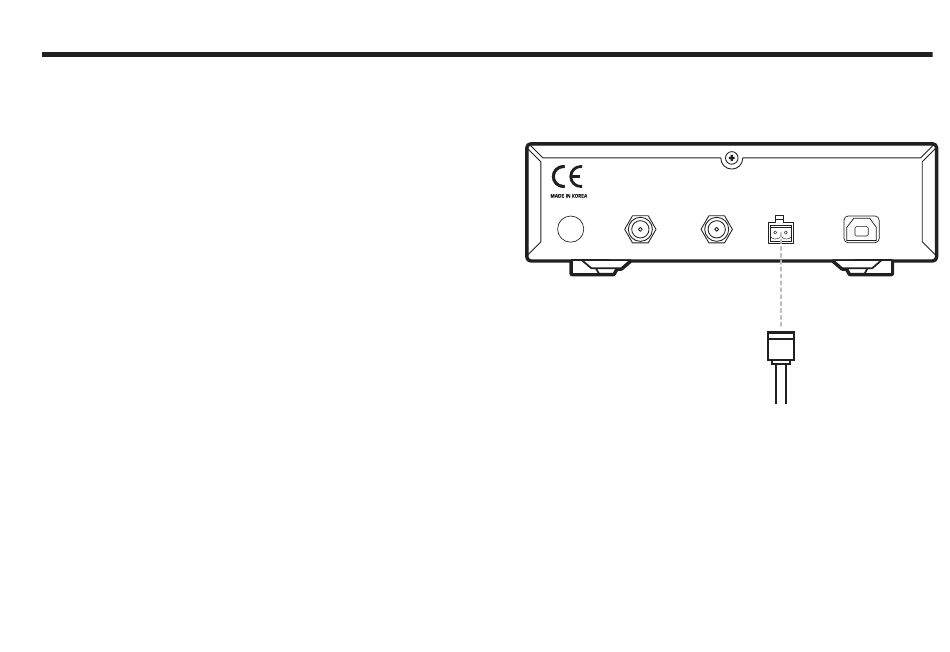

Figure 18 : NMEA 0183 GPS Connection

NMEA

PC INTERFACE

GROUND (-)
