Mark of the Antenna Mounting Position
Referring to the mounting template, mark where the antenna is to be
mounted on board the ship (it must be a flat surface) or on a separate
power tower by the drawing on the right.
Note: If a power tower is not used to mount the antenna, separate
cable shocks and waterproofing measures must be taken to protect
the RF connector from being exposed to sea water and external
shocks. An exposed cable may cause electric shock and cause serious
damage to the equipment.
14
RF1 RF2
RF3 RF4
22.86 cm (9")

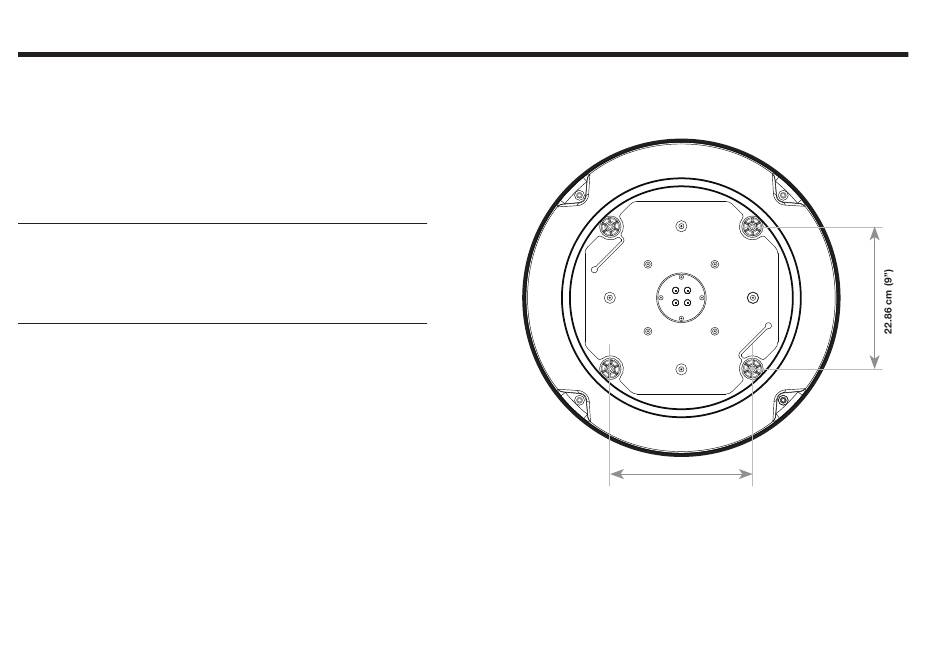

Figure 9 : Mounting Hole Position of i4 Inland
