Setting up ZyPer4K in Many to Many Environment

A many to many, or switched environment involves connecting many sources to many displays.

ZyPer4K allows you a ﬂexible and scalable amount of input-output options without limitations. 

For example, in a 24-port conﬁguration, you can conﬁgure a 1x23, 6x18, or 4x20 (and so on)

system. A network switch is needed in these many to many conﬁgurations. These environments

also require conﬁguration through the ZyPer4K management software.

To set up ZyPer4K in a multipoint environment, you have to:

• Connect the ZyPer4K Management Platform hardware to the network switch

• Determine the IP Address of the ZMP (See the Management Platform User Guide

for details)

• Connect all Encoders and Decoders to the 10Gb network switch

• Connect a PC or Laptop to the network switch.

• Make sure laptop is on same "network" as the MP

• Open a Chrome browser and point it to the IP Address of the MP. (This opens ZyPer

Management Platform (ZMP))

• Login to the MP using the default username and password. "admin" / "admin"

• All devices (encoders and decoders) will automatically appear in ZMP

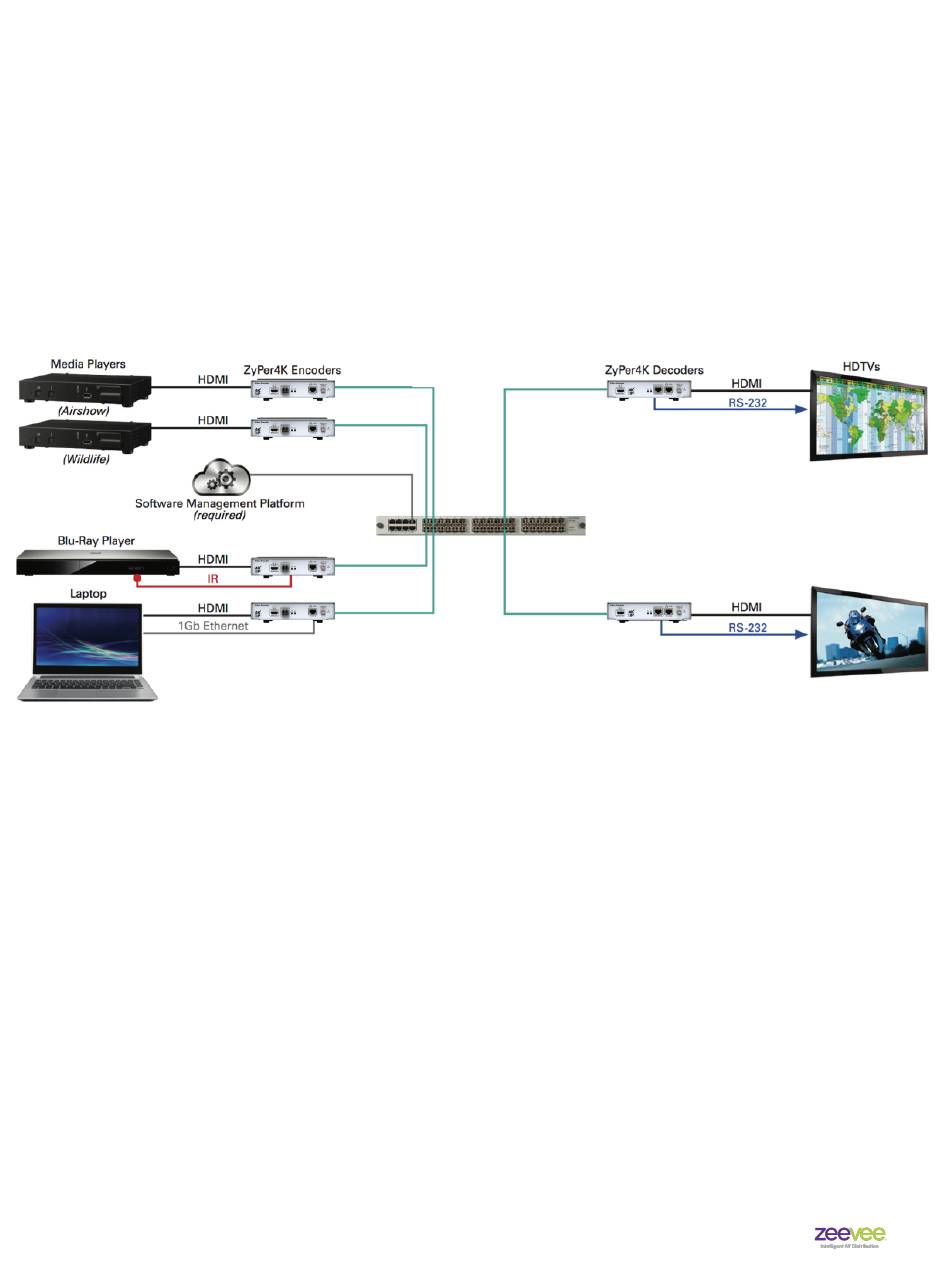

Z4K Quad Encoder

Fiber or Copper

Page

10 Gigabit

Ethernet Switch
