ZyPer4K

Encoder Function

The function of the ZyPer4K Encoder Device (Encoder) is to accept audio and video data over a
variety of interface types, and translate that data to a format suitable for transmission over a
standard 10Gb Ethernet network. The encoder supports inputs up to 4K resolution including full
HDMI 2.0 support. (4K resolution 4:4:4 at 60Hz)
Video data is segmented, encrypted, prepared for transmission, and sent by the Encoder unit.
No unit other than those so designated by the control entity shall be able to receive the video
stream sent by an Encoder.
The format of the IP data is fully in compliance with industry-standard IEEE 802.3 Ethernet
networking practices. Any switch or device capable of passing 10G Ethernet traffic can be
employed to carry ZyPer4K A/V traffic.

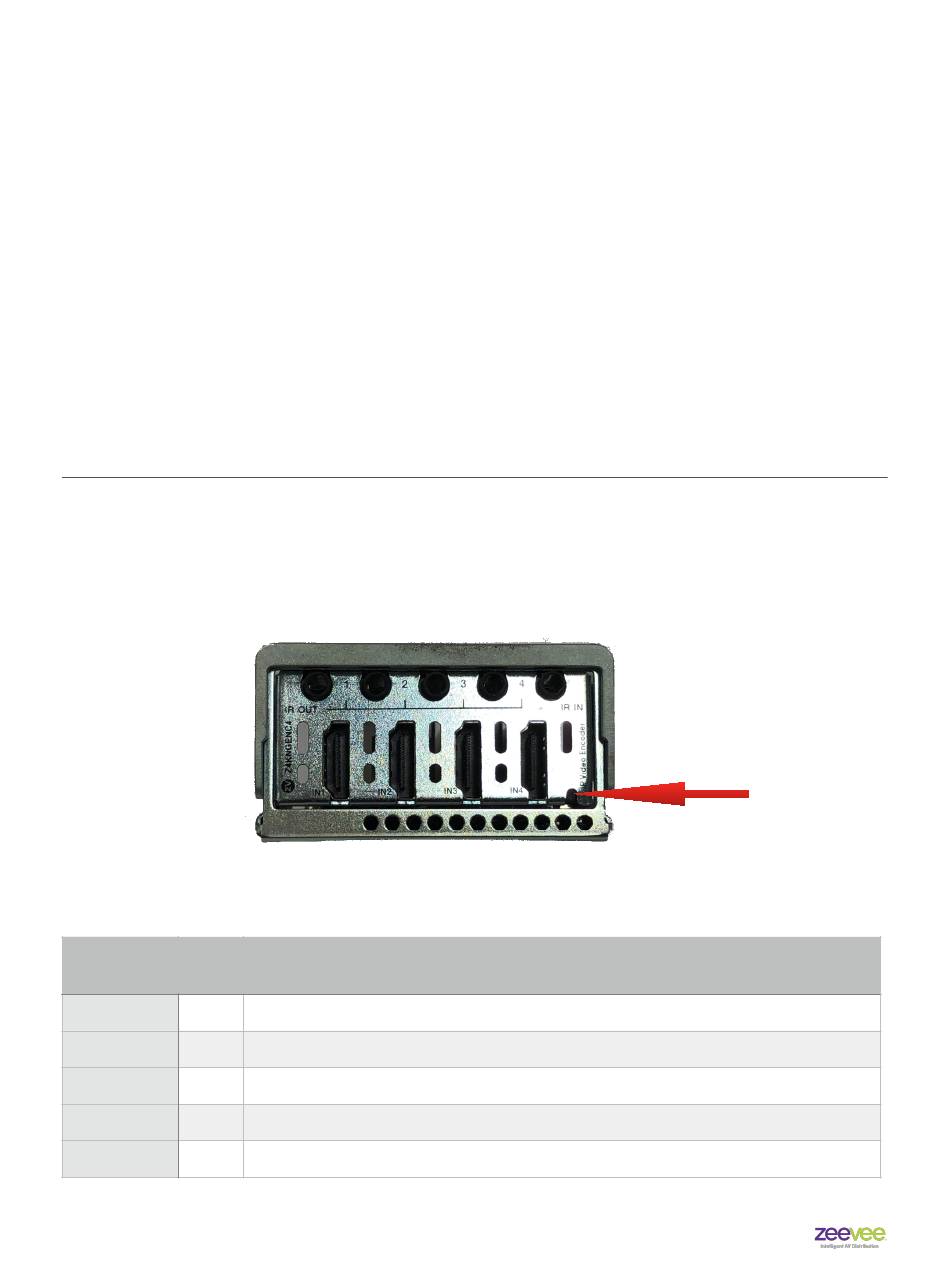

Quad Encoder for Netgear M4300-96X

Designed exclusively for use with the Netgear M4300-96X, the ZyPer4K Quad Encoder Card
provides four HDMI 2.0 inputs and the full functionality of four independent encoders.
Port Name Port Name Index Definition
HDMI Port 1 A
HDMI Port 2 B
HDMI Port 3 C
HDMI Port 4 D
IR-OUT E
Z4K Quad Encoder
E F G
A B
HDMI 2.0 Input port. Capable of up to 4K60 with HDCP2.2 encryption.
HDMI 2.0 Input port. Capable of up to 4K60 with HDCP2.2 encryption.
HDMI 2.0 Input port. Capable of up to 4K60 with HDCP2.2 encryption.
HDMI 2.0 Input port. Capable of up to 4K60 with HDCP2.2 encryption.
Infrared Commands passed back FROM decoders as configured by ZMP.
Page
H J
C D
1 of 11
K
