Setting Up ZyPer4K in a Many to Many Environment

A many to many, or switched environment involves connecting many sources to many displays.
ZyPer4K allows you a flexible and scalable amount of input-output options without limitations.
For example, in a 24-port configuration, you can configure a 1x23, 6x18, or 4x20 (and so on) system.
A network switch is needed in these many to many configurations. These environments also require
configuration through the ZyPer4K management software.
Media Players
HDMI
(Airshow)
HDMI
(Wildlife)
Software Management Platform
(required)
Blu-Ray Player
HDMI
IR
Laptop
HDMI
1Gb Ethernet
|
Page 6 Zy Pe r 4K C o n f ig u r a t i o n G u id e

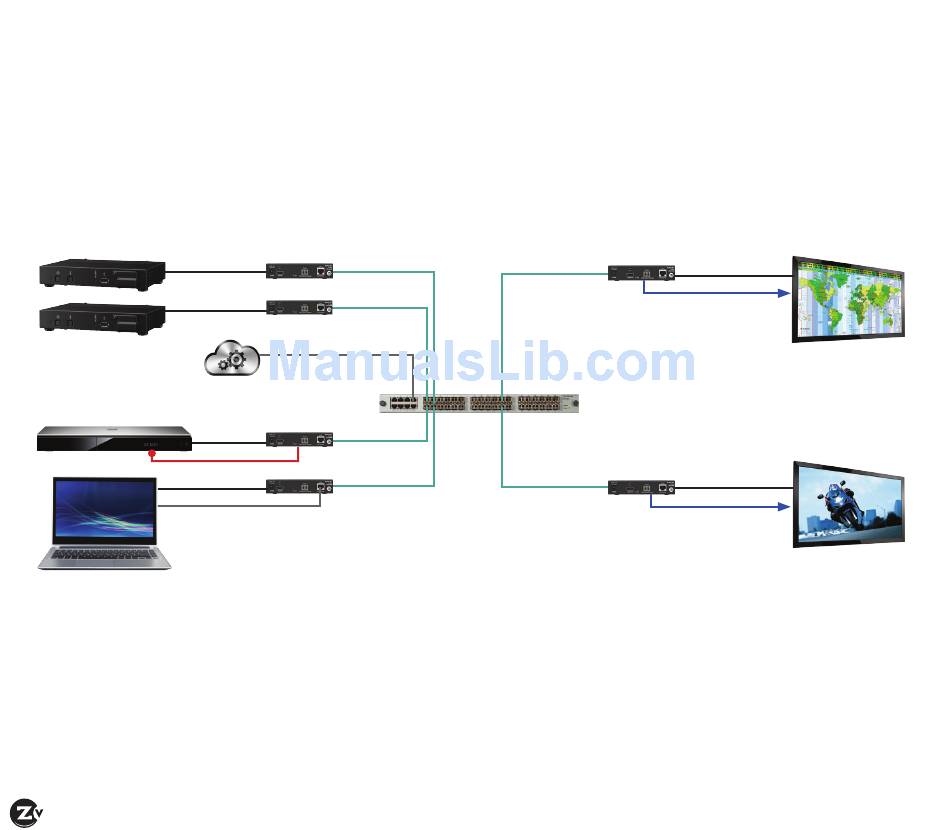

ZyPer4K Encoders
To set up ZyPer4K in a many to many environment, you have to:
• Install ZyPer4K management software
• Connect all Encoders and Decoders to the 10Gb network switch
• Switch (or route) video from sources to displays
Fiber
ZyPer4K Decoders
Multi-Mode
10 GigaBit Ethernet
Fiber Switch
HDTVs
HDMI
RS-232
HDMI
RS-232
