ZyPer4K

Appendix A

Resetting the Z4KNGENC4 Card

The process to completely reset the Z4KNGENC4 card comprises multiple steps as detailed

below:

Note the Netgear M4300-96X remains powered on for all of these steps.

1. Remove the Z4KNGENC4 from the Netgear M4300-96X switch

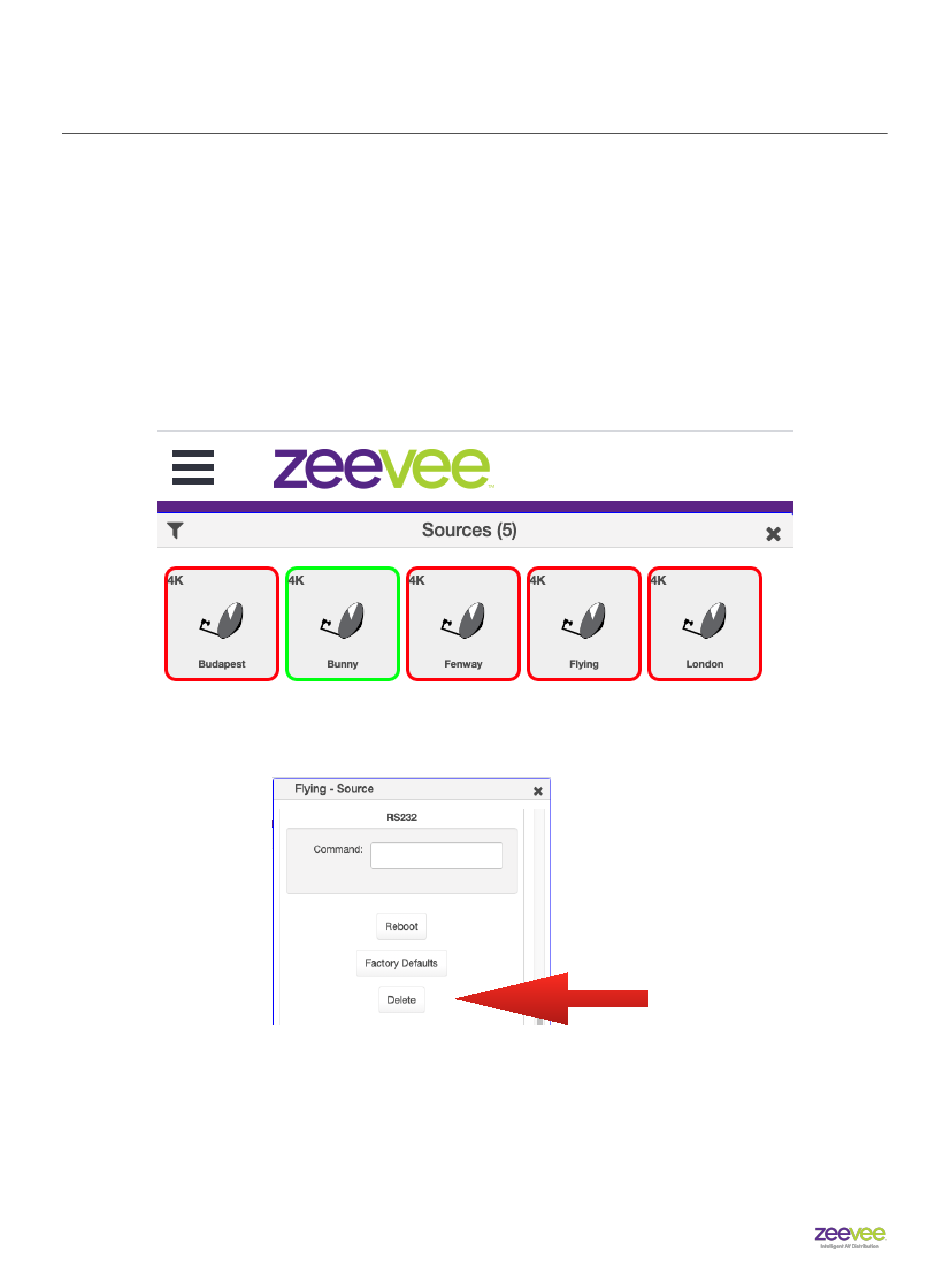

2. Open the ZyPer Management Platform and ﬁnd all 4 encoders associated with the

Z4KNGNEC4 card. They should appear in red indicating they are no longer seen by the

Management Platform.

3. Manually delete each of 4 encoders from the Management Platform.

4. Using a paperclip or other device; press and hold the reset button on the Z4KNGENC4 for

approximately 25 seconds while simultaneously inserting the Z4KNGENC4 back into the

Netgear M4300-96X switch. (Keep the management platform open, you will know process

is complete when the units reappear. It is okay then to release reset button) 

Z4K Quad Encoder
