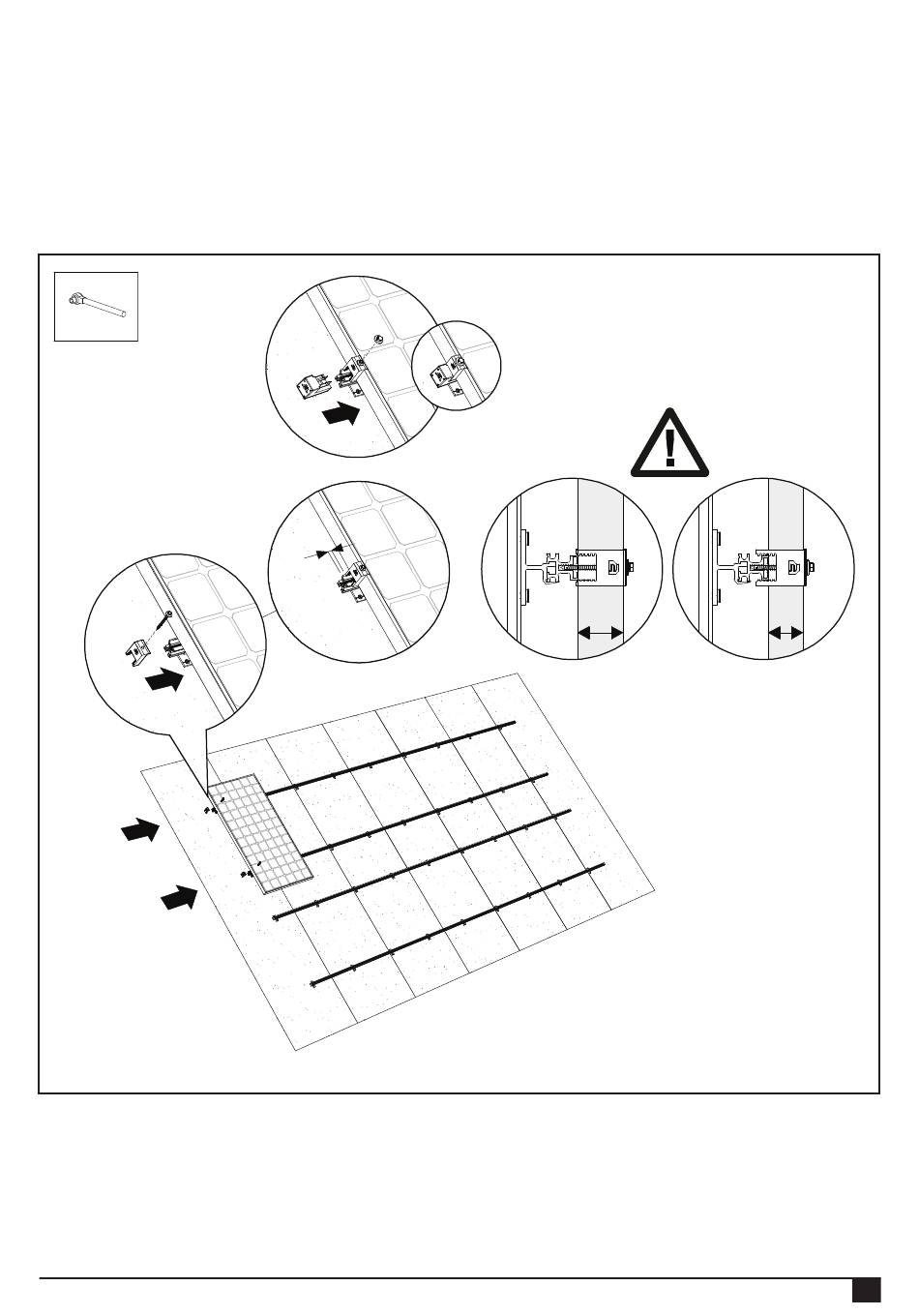

6.6 Mounting 1st solar panel on mounting rail
Slide the first solar panel to the side of the mounting rail.
Then slide the end clamp onto the mounting rail. Choose the correct recess so that the end clamp connects to the solar
panel. Leave about 1 cm rail visible protrude next to the end clamp. Then tighten the end clamp with the mounting screw.
The tightening torque of the screw connections is 4,5Nm.
Option: Slide the black end caps in the side of the mounting rails and place the color caps onto the mounting screws.
OPTION
2
1 cm
1
X
Y
Rev. 10.06.15
MANUAL MOUNTING SYSTEM FOR PITCHED ROOF WITH BITUMEN
11
