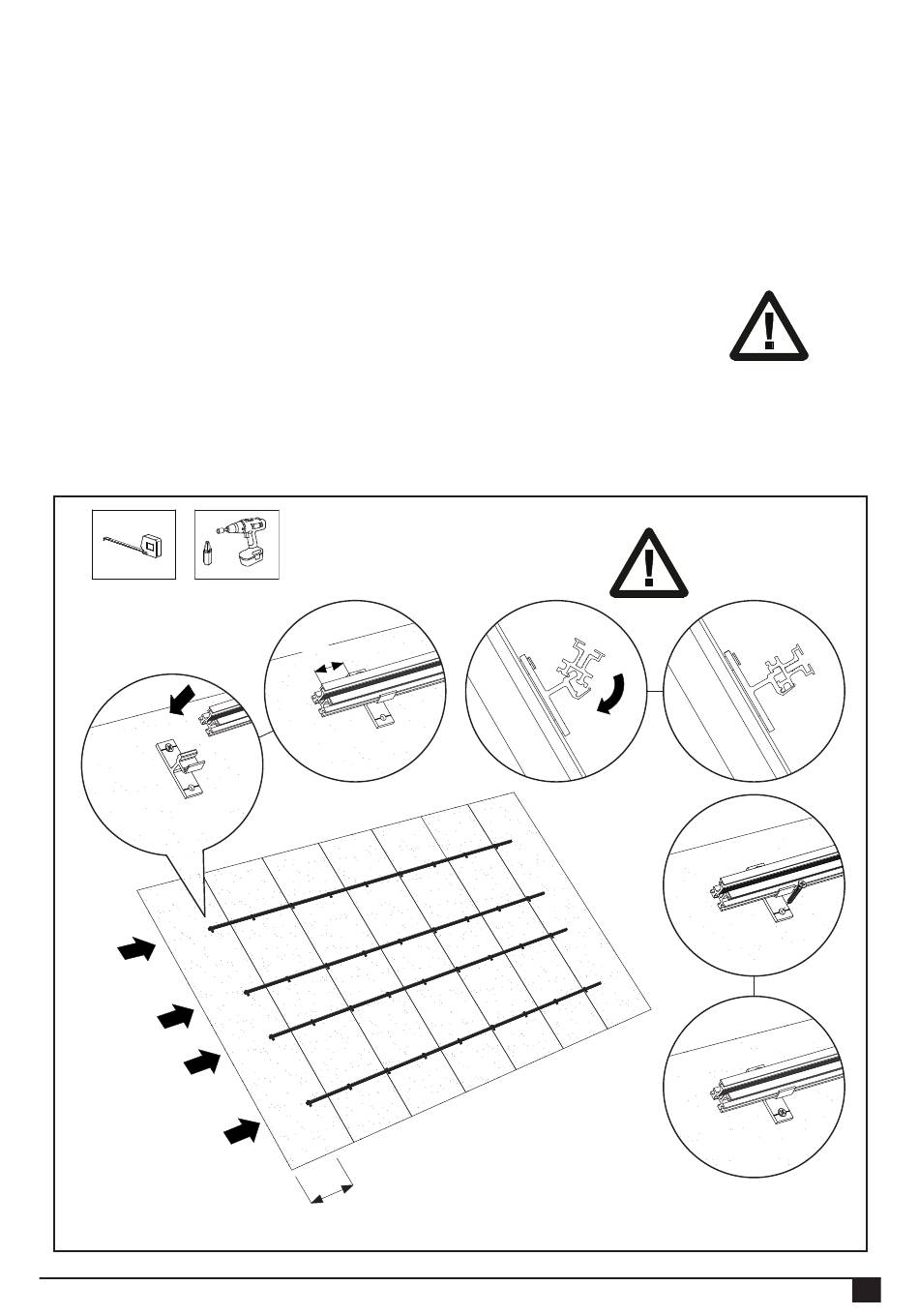

6.4 Attaching mounting rail

1. Position the mounting rail on the mounting brackets. Make sure the mounting bracket are completely perpendicular to the
mounting rail. It is still possible to turn the mounting bracket something because it is only screwed with the top screw.
2. Make sure the tip of the mounting rail protrudes app. 5 cm against to the last mounting bracket.
3. Then click the mounting rail piece by piece to the mounting brackets. Make sure it clicks properly! The mounting brackets
can be sprayed with silicone spray in order to facilitate the clicking.
4. Make sure that the mounting rails are mutually aligned.
5. Screw the lower chipboard screw 5,0x40mm into the mounting brackets.
6. Check that all chipboard screws are tightly screwed.
Make sure the mounting rails are right above each other in connection with the alignment of the
solar panels!
1
4
e
3
e
2
e
1
Rev. 10.06.15
6
5
4
3
2
1
2
5 cm
e
min. 30 cm
MANUAL MOUNTING SYSTEM FOR PITCHED ROOF WITH BITUMEN
3
Click !
4
5
6
