6.8 Final assembly / multiple rows under each other

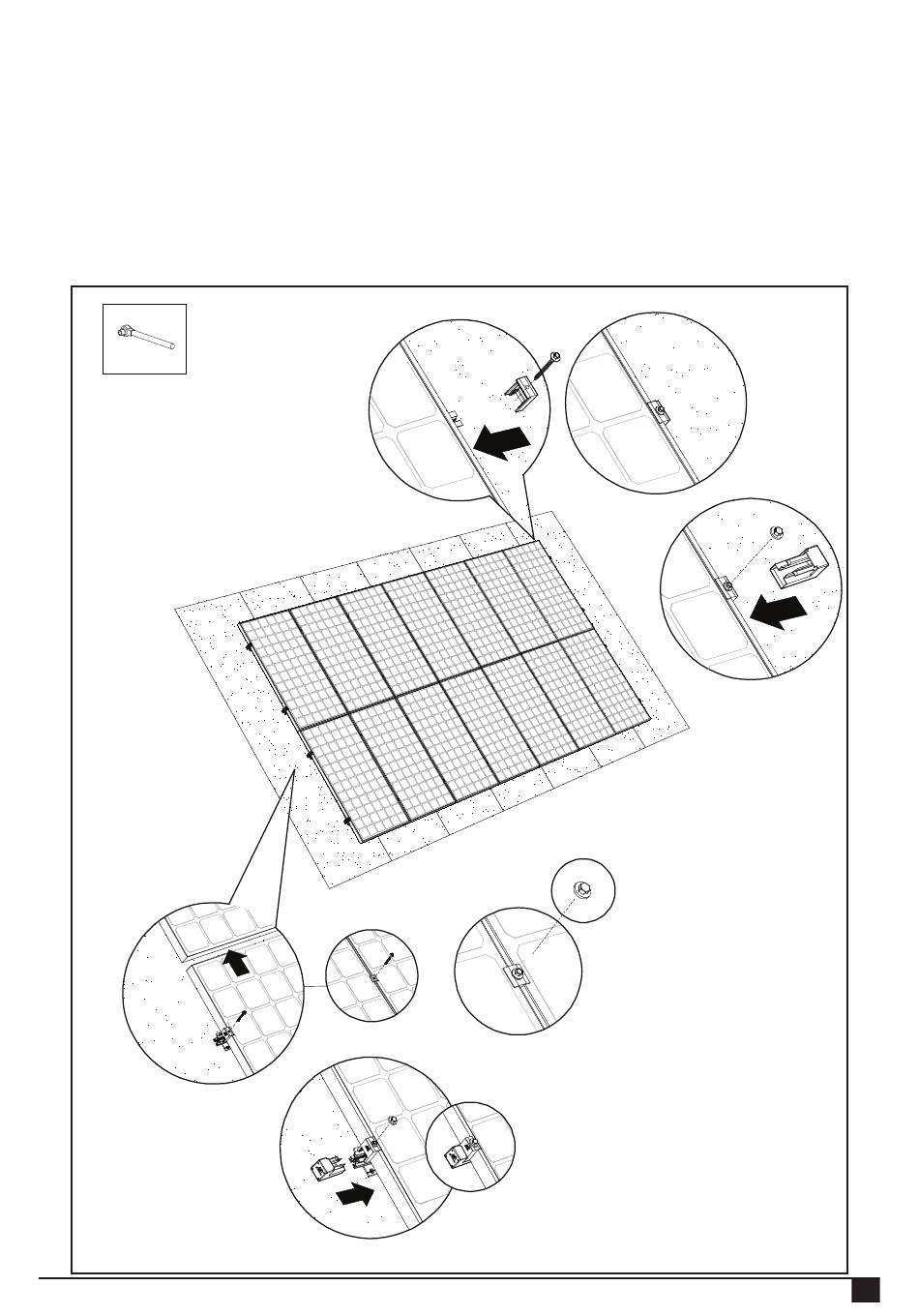

1. Slide the end clamp onto the mounting rail. Choose the correct recess so that the end clamp connects to the solar panel.
2. Then tighten the end clamp using the mounting screw. (tightening torque 4,5Nm)
3. To obtain an interconnected panel surface you slide the underlying solar panels after you hung them with the suspension
sockets onto the mounting rail against the upper row of solar panels with a gap of 1-2 cm.
Then you secure the solar panels firmly using the mounting screws, end clamps and module clamping plates to the
mounting rails.
Option: Slide the black end caps in the side of the mounting rails and place the color caps onto the mounting screws.
1 2
OPTION
OPTION
3
OPTION
Rev. 10.06.15 MANUAL MOUNTING SYSTEM FOR PITCHED ROOF WITH BITUMEN
13
