6. Installation

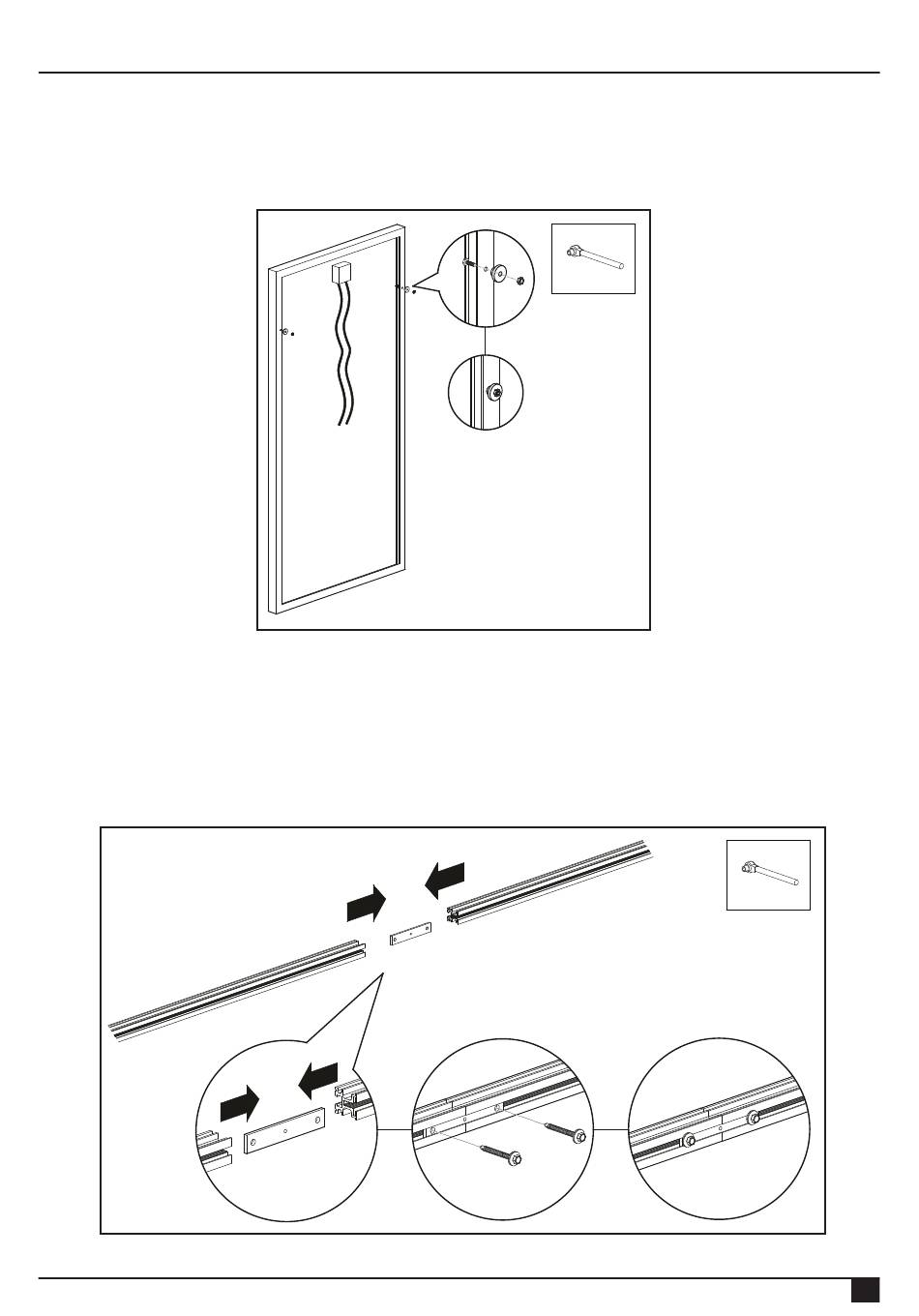

6.1 Preinstall suspension on solar panels (only with portrait)
Install per solar panel 2 suspension sockets at the rear of the solar panel (= same side as the connection box). First insert
the RVS hex bolts M6x20 in the available holes in the frame and affix thereon the suspension sockets. Then install the M6
nuts.

6.2 Preinstall connecting strips

You can attach the mounting rails to each other with the supplied connection strips.
Slide the connection strip in the side of the mounting rail and fix this using the supplied mounting screws 6,5x19.
The tightening torque of the screw connections is 4,5Nm.
When the total length of the coupled mounting rails is longer than 20m, a dilation of a number of mm is advisable.
