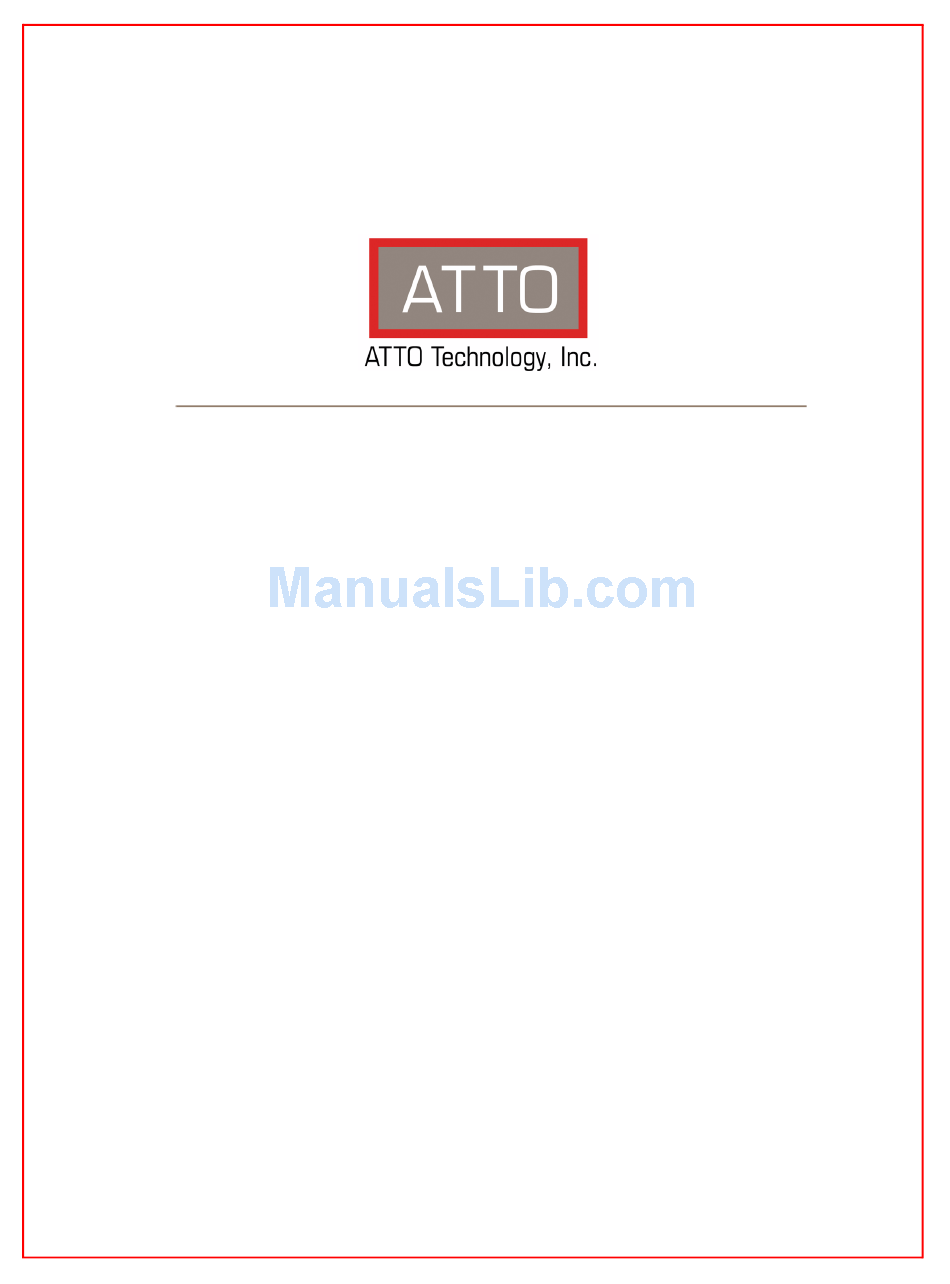

ATTO FibreBridge
Installation and Operation Manual
ATTO FibreBridge 2370E
ATTO FibreBridge 2390C/R/D
ATTO FibreBridge 2400C/R/D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FibreBridge 2370E and is the answer not in the manual?

Questions and answers

Related Manuals for ATTO Technology FibreBridge 2370E

Summary of Contents for ATTO Technology FibreBridge 2370E

  • Page 1 ATTO FibreBridge Installation and Operation Manual ATTO FibreBridge 2370E ATTO FibreBridge 2390C/R/D ATTO FibreBridge 2400C/R/D...
  • Page 2 © 2007 ATTO Technology, Inc. All rights reserved. All brand or product names are trademarks of their respective holders. No part of this manual may be reproduced in any form or by any means without the express written permission of ATTO Technology, Inc.

  • Page 3: Table Of Contents

    1.0 ATTO FibreBridge provides storage options ...1 ATTO FibreBridge 2370E features, benefits ATTO FibreBridge 2390C/R/D features, benefits ATTO FibreBridge 2400C/R/D features, benefits 1.1 ATTO FibreBridge 2370E ...3 Board dimensions Cooling and airflow Power Fibre Channel port SCSI ports Management access LED indicators 1.2 ATTO FibreBridge 2390R/D ...5...
  • Page 4 2.0 Installing the FibreBridge ...13 Unpack the packing box; verify contents Install the FibreBridge Discover the IP address Internet Explorer setup Begin initial configuration 3.0 Configuring the FibreBridge ...15 Preliminary steps Port configurations Modify passwords Enhance performance 3.1 Map devices ...17 FibreBridge mapping SCSI device mapping Mapping devices automatically...
  • Page 5 Appendix D Warranty information ...xix Manufacturer limited warranty...

  • Page 6: Atto Fibrebridge Provides Storage Options

    The ATTO FibreBridge 2370E is a Fibre Channel-to-SCSI bridge that offers a high- performance architecture supporting next- generation storage media. The FibreBridge 2370E allows users with SCSI storage to add Fibre Channel connectivity, enabling SAN connectivity for the storage system. With industry-leading support for 4-Gigabit Fibre...

  • Page 7: Atto Fibrebridge 2390C/R/D Features, Benefits

    ATTO FibreBridge 2390C/R/D features, benefits The ATTO FibreBridge 2390C/R/D is a 4-Gigabit Fibre Channel-to-SCSI bridge configured with a single 4-Gb Fibre Channel port and dual-stacked Ultra320 SCSI buses featuring VHDCI interfaces. Designed to integrate industry-leading performance and SAN capabilities into advanced storage solutions, the FibreBridge 2390 uses a high performance architecture suited for tape automation OEMs who wish to integrate high...

  • Page 8: Atto Fibrebridge 2370E

    1.1 ATTO FibreBridge 2370E The ATTO FibreBridge 2370E is a 4-Gigabit Fibre Channel to SCSI bridge offering the ability to add 4-Gigabit Fibre Channel connectivity to Ultra320 SCSI devices. The FibreBridge 2370E is available in an embeddable card for easy integration into storage devices.
  • Page 9 4 VDD 3.3 5 Fault LED Cathode 6 VDD 3.3 7 NC 8 NC Exhibit 1.1-1 FibreBridge 2370E board layout LED Header P6 Pins 1 SCSI Port 1 Activity LED Cathode 2 VDD 3.3 3 SCSI Port 2 Activity LED Cathode 4 VDD 3.3...

  • Page 10: Atto Fibrebridge 2390R/D

    110/230V AC, with operating input Input voltage: range of 90-132V AC or 175-264V AC, 100-240 VAC; 1.7-.7A, 50-60Hz. ATTO Technology Inc. FibreBridge Installation and Operation Manual Battery-backed event log SRAM & Real-Time- A rechargeable Lithium ion battery cell holds Clock: the memory in a 512KB SRAM for up to 30 days.

  • Page 11: Manual Reset Switch

    Manual reset switch A manual reset switch reboots the FibreBridge. To reset the FibreBridge, depress the reset button for no more than three seconds. To restore factory defaults, press the reset button for more than four seconds until the green Ready LED blinks.

  • Page 12: Atto Fibrebridge 2390C

    The battery is fully charged after 24 hours of continuous power application. ATTO Technology Inc. FibreBridge Installation and Operation Manual Fibre Channel port The 4-Gb Fibre Channel port uses a Small Formfactor Pluggable (SFP) interface.
  • Page 13 Embedded in the Ethernet port connector: lighted green LED shows a valid link; off indicates that no link is present. A separate blinking yellow LED indicates activity. Exhibit 1.3-1 The FibreBridge 2390C connectors and LEDS. Exhibit 1.3-2 The FibreBridge 2390C board layout. A bicolor Ready/Fault LED ready, lights yellow to show a faulted condition, and is off to indicate not ready.FibreBridge 2400C bracket...

  • Page 14: Atto Fibrebridge 2400R/D

    Battery-backed event log SRAM & Real-Time- A rechargeable Lithium ion battery cell holds Clock: the memory in a 512KB SRAM for up to 30 days. ATTO Technology Inc. FibreBridge Installation and Operation Manual WARNING WARNING Risk of explosion if the battery is removed and/or replaced by an incorrect type.

  • Page 15: Manual Reset Switch

    Manual reset switch A manual reset switch reboots the FibreBridge. To reset the FibreBridge, depress the reset button for no more than three seconds. To restore factory defaults, press the reset button for more than four seconds until the green Ready LED blinks.

  • Page 16: Atto Fibrebridge 2400C

    The battery is fully charged after 24 hours of continuous power application. ATTO Technology Inc. FibreBridge Installation and Operation Manual Fibre Channel port The dual independent 4-Gb Fibre Channel ports can...
  • Page 17 Exhibit 1.5-1 FibreBridge 2400C bracket detail and board layout mounting hole 10-pin serial header Ready/Fault LED Ethernet port FC activity & link LEDs cPCI connector Fibre Channel ports SCSI ports SCSI activity LEDs 6.1939 inches m ounting hole cPC I connector 10-pin Pow er serial...

  • Page 18: Installing The Fibrebridge

    2400C, power is already connected if you have installed the unit using the cPCI connection. ATTO Technology Inc. FibreBridge Installation and Operation Manual • For the FibreBridge 2390R/D and the FibreBridge 2400R/D, connect the AC power cord from the FibreBridge to the proper AC source outlet and turn on the power using the power switch.

  • Page 19: Internet Explorer Setup

    If you do not have a DHCP server, get an IP address and subnet mask from your network administrator, type it into the area provided, and click on Next . Click on Launch Browser Your browser points to the ATTO ExpressNAV splash screen.

  • Page 20: Configuring The Fibrebridge

    • View all settings to ensure they are appropriate for your configuration. ATTO Technology Inc. FibreBridge Installation and Operation Manual • Keep the automatic settings created when you powered up your Fibre Bridge and do nothing, accepting all the default settings for all ports.

  • Page 21: Enhance Performance

    Enter the Administrator ( Admin ) password where indicated. Enter appropriate information into the New Admin Password, Confirm New Admin Password or New Read Only Password and Confirm New Read Only Password text boxes. Click Submit. If you have completed all changes for this session, go to the Restart page and restart the Fibre Bridge.

  • Page 22: Map Devices

    Adding new devices to an arbitrated loop may change the address assigned to the FibreBridge. ATTO Technology Inc. FibreBridge Installation and Operation Manual 3.1 Map devices Hard addressing to be assigned to the FibreBridge. The FibreBridge tries to acquire the desired hard address.

  • Page 23: Mapping Devices Automatically

    Mapping devices automatically If you are not already in the ExpressNAV interface, type the IP address of your FibreBridge in a standard browser as Using found in ExpressNAV on page 25, click Enter Here, type in your user name and password, and click OK .

  • Page 24: Remote Monitoring, Management

    Exhibit 3.0-3 The Remote Management page in the ExpressNAV interface ATTO Technology Inc. FibreBridge Installation and Operation Manual You may designate which warning level a recipient receives. For example, a recipient with a critical severity level only receives critical messages and not warning or informational messages.

  • Page 25: Snmp-Based Monitoring

    SNMP-based monitoring The Simple Network Management Protocol (SNMP) facilitates the exchange of management information between network devices. An agent resides in the FibreBridge which takes information from the FibreBridge and translates it into a form compatible with SNMP. If certain conditions arise, the agent sends asynchronous notifications (traps) to a client.

  • Page 26: Email Messages Provide Error Notification

    SMTP header information as shown in Exhibit 3.0- If you are not already in the ExpressNAV interface, type the IP address of your ATTO Technology Inc. FibreBridge Installation and Operation Manual Extended Traps enabled Unit’s internal temperature has increased to at or within the unit’s maximum operating temperature...
  • Page 27 Exhibit 3.0-5 The Email messages sent by the FibreBridge follow this format. Subject: [The Type of Event that Occurred] Message Body: This is a status message from [FibreBridge name]. Identifying information as well as the most recent entries from the event log appear below. *************** Unit Information Serial Number : [Serial Number] IP Addresses:...

  • Page 28: Update Firmware

    .ima file and can be obtained from the ATTO web site. Preliminary step The FibreBridge firmware is distributed as an .ima file from the ATTO Technology web site at or from the CD included with www.attotech.com your bridge. Download the file and note the filename.
  • Page 29 In the Send File box, enter the current FibreBridge .ima file or click the browse button to find it. Click Send File The FibreBridge acknowledges receiving the file and displays a message not to interrupt power for 90 seconds. Once the download is complete, cycle power on the FibreBridge to start the new firmware.

  • Page 30: Interface Options

    Fibre Bridge. For example, if you are using HyperTerminal on a computer running a Windows operating system, a. Type Fibre Bridge in the New Connection dialog box. ATTO Technology Inc. FibreBridge Installation and Operation Manual 5.0 Interface options passwords. Refer to page 15. The Status page appears.

  • Page 31: Using Telnet

    • Flow Control: None • Terminal type: ASCII • Echo: on f. Click OK. After you connect to the Fibre Bridge, start-up messages are displayed. These messages are only displayed at start-up. The last line in the start-up message sequence is Ready . In serial port sessions, there is no prompt on the line below the word Ready .

  • Page 32: Appendix A Cabling

    (LVD) Ultra160 SCSI Low Voltage Differential (LVD) Ultra320 SCSI Low Voltage Differential (LVD) ATTO Technology Inc. FibreBridge Installation and Operation Manual Appendix A Cabling Fibre Channel connections Fibre Channel technology offers a variety of cabling options. The type of cable required varies depending upon the application, environment and distance.

  • Page 33: Appendix B Cli Provides Ascii-Based Interface

    Appendix B The command line interface (CLI) provides access to the ATTO FibreBridge Services through a set of ASCII commands. CLI commands may be entered while in CLI mode. FibreBridge Services provide configuration and monitoring for the FibreBridge. The command line interface (CLI) is a set of ASCII-based commands which perform these tasks.

  • Page 34: Cli Error Messages

    DumpEventLog DumpTraceLog EmailFromAddress EmailNotify EmailNotifyAddress EmailPassword EmailServerAddress EmailUsername ATTO Technology Inc. FibreBridge Installation and Operation Manual have no default values associated with them have a blank entry in that column of the table. Default Example disabled set autologsense enabled automap...
  • Page 35 Command EthernetSpeed EventLog EventLogFilter Exit FCConnMode FCDataRate FCHard FCHardAddress FCMultiNode (FB2400 only) FCPortErrors FCPortList FCSCSIBusyStatus FCSpeedLED2G (FB2370 only) FCWWName FirmwareRestart Help IdentifyBridge Info IPAddress IPDHCP IPDNSServer IPGateway IPSubnetMask IsReserved LogicalUnitAddressing MaxOpTemp (FB2390, FB2400} MinOpTemp (FB2390, FB2400} OpTempWarn (FB2390, FB2400} Password Performance Ping ReadOnlyPassword...
  • Page 36 TimeZone TraceLog TraceLogFilter Username VerboseMode VirtualDriveResponse VirtualRobotResponse Voltage (FB2390, FB2400} WrapEventLog WrapTraceLog zModem ATTO Technology Inc. FibreBridge Installation and Operation Manual Default Example scsidomainvalidation 0x07 set scsiinitid 2 12 ultra320 set scsiportbusspeed 2 ultra160 scsiportlist scsiportreset 1 enabled set scsiportresetonstartup 1 disabled...

  • Page 37: Command Explanations

    Command explanations AutoLogSense Controls whether current data from log pages in a SCSI target device is available automatically. Default: disabled set AutoLogSense [enabled|disabled] Requires a SaveConfiguration command get AutoLogSense AutoMap Automatically assigns a subset of source protocol LUNs to a subset of target destination devices visible to the FibreBridge.
  • Page 38 LUN: hexadecimal SCSI logical unit number CDB: each Cx character represents the hexadecimal byte-wise contents of the command’s SCSI ATTO Technology Inc. FibreBridge Installation and Operation Manual Command Descriptor Block. SCSI CDBs with less than 16 bytes are padded with zeros Stat: hexadecimal byte-wise SCSI status return code.
  • Page 39 EmailNotifyAddress Configures notification addresses. Index is a number 1-5. Full Email address is a fully qualified Internet Email address, not more than 128 characters long. Warning level can be All, Warning, Critical or None. None means no Emails are sent; Critical means only critical severity events sends an Email;...
  • Page 40 Link Failure: Number of times link has failed due to loss of signal, loss of synchronization for greater than ATTO Technology Inc. FibreBridge Installation and Operation Manual 100ms, link fault, LIPs not being recognized for 45 ms or more in the normal-initialize state, or bad...
  • Page 41 FirmwareRestart Causes the FibreBridge to reboot, then re-initialize its firmware.Use the forced option to override any CLI reservation held by other sessions. FirmwareRestart <forced> Help Displays a list of available commands. If command name is specified, displays detailed command-specific information. Help [command name] IdentifyBridge Enabling this option causes the Ready LED on the...

  • Page 42: Restore Configuration

    Performance <fp> Ping Sends an ICMP echo request to the specified host. Ping [mp1] [xxx.xxx.xxx.xxx] <count <size>> ATTO Technology Inc. FibreBridge Installation and Operation Manual ReadOnlyPassword Specifies password for all non-serial sessions: Telnet, FTP and ExpressNAV interface. ReadOnlyPassword is case sensitive, 0 to 32 characters, and cannot contain spaces.
  • Page 43 Route Assigns a Fibre Channel address to a target destination device. If you try to map a new SCSI BTL to the same FC LUN, the new BTL overwrites the previous map. Using the delete identifier removes the map from its table. If VerboseMode has been enabled, overwriting an existing map requires secondary confirmation.
  • Page 44 FibreBridge board’s number. get SerialNumber xiii ATTO Technology Inc. FibreBridge Installation and Operation Manual SerialPortBaudRate Configures/reports the baud rate for the FibreBridge RS- 232 serial port or header. The number of data bits per character is fixed at 8 with no parity.
  • Page 45 SNMPTrapAddress Sets/displays the IP trap addresses and levels.Consult your network administrator for further assistance with SNMP. Index: value between 1 and 6 IPAddress: standard IP address for the host receiving messages; must be in the same subnet as the FibreBridge Trap Level: severity required for an event to trigger a trap: None: no traps are sent to the address...
  • Page 46 Default: enabled (returns have parameter information) set VerboseMode [enabled | disabled] get VerboseMode ATTO Technology Inc. FibreBridge Installation and Operation Manual VirtualDriveResponse is disabled. Provides proxy responses to SCSI INQUIRY and TEST UNIT READY commands if a SCSI device is in a timeout SNTP or busy.
  • Page 47 zModem Allows transfer of a firmware image to or from the FibreBridge using the zModem file transfer protocol. Available only through the RS232 interface. zModem [Send filename | Receive] CAUTION CAUTION After a firmware image is downloaded to the FibreBridge, the image is placed into flash memory.

  • Page 48: Appendix C Standards And Compliances

    Application of Council Directive: 89/336/EEC Standard(s) to which conformity is declared: EN55022, EN50082-1, EN60950 xvii ATTO Technology Inc. FibreBridge Installation and Operation Manual Standards and compliances FCC Standards: Radio and Television Interference This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.

  • Page 49: Certification For The Fibrebridge 2400 Only

    CE approved devices and when the entire system is tested to the applicable CE standards and found to be compliant. The ATTO FibreBridge 2370E, 2390 and 2400 comply with Directive 2002/95/EC on the Restriction of the Use of Hazardous Substances in Electrical and Electronic Equipment (RoHS).

  • Page 50: Appendix D Warranty Information

    Damage resulting from incorrect connection or an inappropriate application of this product shall not be the responsibility of Manufacturer. Manufacturer’s liability is limited ATTO Technology Inc. FibreBridge Installation and Operation Manual Warranty information to Manufacturer’s product(s); damage to other equipment connected to Manufacturer’s product(s) will be the customer’s responsibility.
