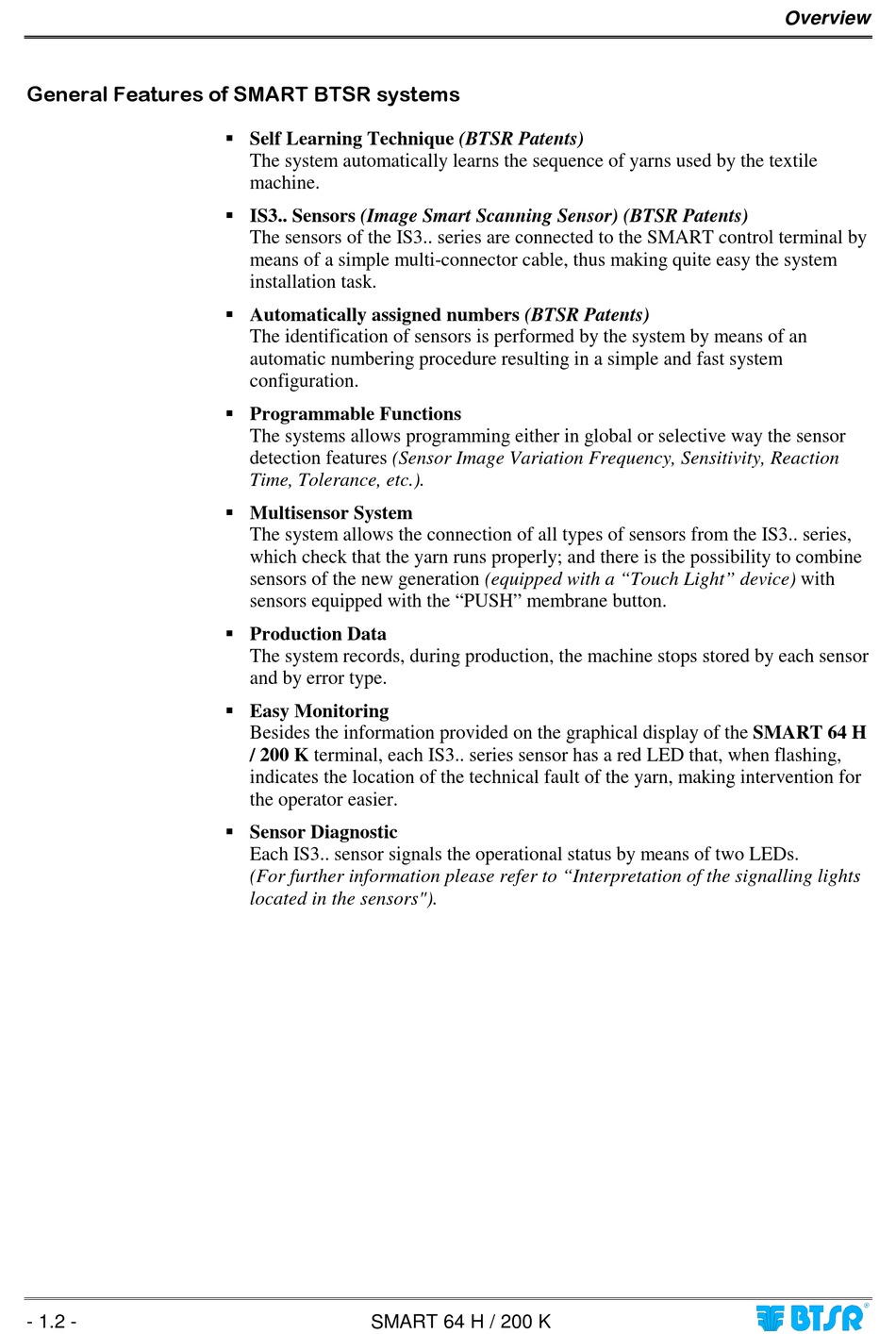

*HQHUDO#)HDWXUHV#RI#60$57#%765#V\VWHPV#
- 1.2 -
ƒ#Self Learning Technique (BTSR Patents)
The system automatically learns the sequence of yarns used by the textile
machine.
ƒ#IS3.. Sensors (Image Smart Scanning Sensor) (BTSR Patents)
The sensors of the IS3.. series are connected to the SMART control terminal by
means of a simple multi-connector cable, thus making quite easy the system
installation task.
ƒ#Automatically assigned numbers (BTSR Patents)
The identification of sensors is performed by the system by means of an
automatic numbering procedure resulting in a simple and fast system
configuration.
ƒ#Programmable Functions
The systems allows programming either in global or selective way the sensor
detection features (Sensor Image Variation Frequency, Sensitivity, Reaction
Time, Tolerance, etc.).
ƒ#Multisensor System
The system allows the connection of all types of sensors from the IS3.. series,
which check that the yarn runs properly; and there is the possibility to combine
sensors of the new generation (equipped with a "Touch Light" device) with
sensors equipped with the "PUSH" membrane button.
ƒ#Production Data
The system records, during production, the machine stops stored by each sensor
and by error type.
ƒ#Easy Monitoring
Besides the information provided on the graphical display of the SMART 64 H
/ 200 K terminal, each IS3.. series sensor has a red LED that, when flashing,
indicates the location of the technical fault of the yarn, making intervention for
the operator easier.
ƒ#Sensor Diagnostic
Each IS3.. sensor signals the operational status by means of two LEDs.
(For further information please refer to "Interpretation of the signalling lights
located in the sensors").
SMART 64 H / 200 K
Overview
