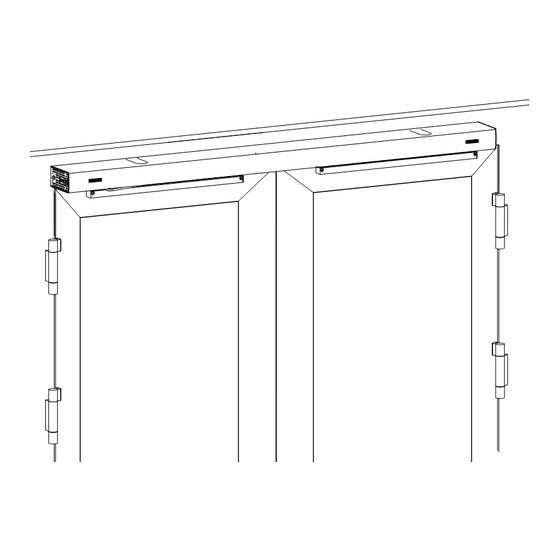

Slimdrive EMD
EN Additional installation instructions
F-IS
164990-00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Slimdrive EMD F-IS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GEZE Slimdrive EMD F-IS

Summary of Contents for GEZE Slimdrive EMD F-IS

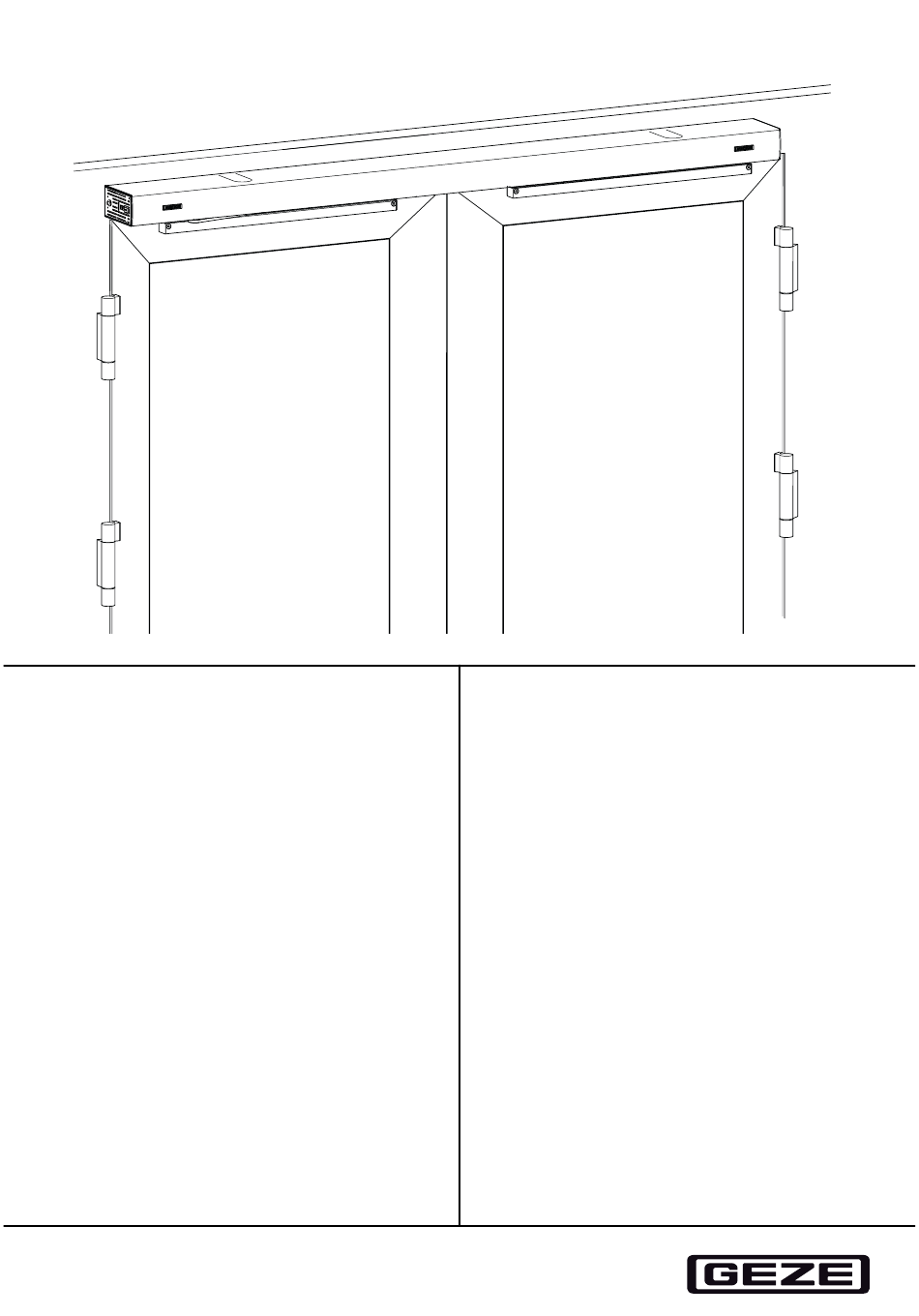

  • Page 1 Slimdrive EMD EN Additional installation instructions F-IS 164990-00...

  • Page 2: Table Of Contents

    Replace brake unit on the active leaf drive ............................13 CE mark according to EN 1158 ........................19 Commissioning ..............................19 Service and maintenance ..........................19 Maintenance requirements ..................................19 Additional service work for Slimdrive EMD F-IS systems ........................ 19 Troubleshooting ......................................19...

  • Page 3: Symbols And Illustrations

    Safety Proper use The door closing sequence control Slimdrive EMD F-IS has been designed for automatic control during the closing of double-leaf single-action swing doors. The components required supplement the Slimdrive EMD-F drive and must be installed according to these instructions.

  • Page 4: Safety Notices

    Product description Areas of application See installation instructions EMD-F for mechanical and electrical data. Basic structure and extension 2.2.1 Drive Slimdrive EMD F-IS – active leaf transom installation hinge side Wire rope guide Ventilation lever brake K-BS IS-Brake...
  • Page 5 Product description 2.2.2 Drive Slimdrive EMD F-IS – passive leaf transom installation hinge side Trip rocker Wire rope guide 2.2.3 Drive Slimdrive EMD F-IS – active leaf transom installation opposite hinge side Ventilation lever brake K-BGS Wire rope guide IS-Brake...
  • Page 6 Product description Slimdrive EMD F-IS 2.2.4 Drive Slimdrive EMD F-IS – passive leaf transom installation opposite hinge side Trip rocker 2.2.5 Accessories Wire rope Side part for continuous hood Side part for intermediate cover kit For other accessories see installation instructions Slimdrive EMD-F.

  • Page 7: Types Of Installation

    Slimdrive EMD F-IS Types of installation Types of installation Use of the roller lever types depending on the type of installation Also heed the marking on the roller lever. Type of installation Installation side Roller lever Transom installation hinge side...

  • Page 8: Installation Of The Drives And Is Connection Of Active And Passive Leaves

    Types of installation Slimdrive EMD F-IS Installation of the drives and IS connection of active and passive leaves Installation of the drives and levers see Slimdrive EMD-F installation instructions. 3.4.1 Transom installation hinge side Move active leaf to open position.
  • Page 9 Slimdrive EMD F-IS Types of installation Connect the wire rope (2) with the wire rope tighten- er (5) and headless pin (6) to the ventilation lever (4) so that the rope is taut but the ventilation lever is not yet deflected. Shorten the projecting wire rope to a suitable length.
  • Page 10 Types of installation Slimdrive EMD F-IS 3.4.2 Transom installation opposite hinge side Move active leaf to open position. Fix the passive leaf with approx. 10° door angle. Hook the wire rope (3) with the spherical button (1) in the trip rocker (2) of the passive leaf drive.
  • Page 11 Slimdrive EMD F-IS Types of installation Correct wire rope setting à The rope must be slightly tensioned in the given door position, but must not actuate the ventilation lever. à The ventilation lever must return to its starting position when opening the passive leaf and must not lock in a self-locking position.
  • Page 12 Types of installation Slimdrive EMD F-IS 3.4.4 Type of installation transom installation hinge side 3.4.5 Type of installation transom installation opposite hinge side...

  • Page 13: Replace Brake Unit On The Active Leaf Drive

    Slimdrive EMD F-IS Types of installation Replace brake unit on the active leaf drive 3.5.1 Drive for transom installation hinge side Loosen the wire rope attachment in the ventilation lever Loosen headless pin (1) with an Allen key SW 1.5 mm in the wire rope tightener.
  • Page 14 Types of installation Slimdrive EMD F-IS Dismantle brake unit Loosen hex screw SW 5.5 mm (1) on the retaining plate (2). Turn retaining plate (2) to one side. Remove brake unit (3) with ventilation lever (4) from the motor shaft.
  • Page 15 Slimdrive EMD F-IS Types of installation Loosen M4 countersunk screw (6) with Allen key SW 2.5 mm and remove ventilation lever (4) from the brake unit (3). Fit the ventilation lever (4) in the correct position with M4 countersunk screw (6) on the new brake unit. Tightening torque 2.5 Nm Insert new brake unit (3) in the correct position...
  • Page 16 Types of installation Slimdrive EMD F-IS 3.5.2 Drive for transom installation opposite hinge side Loosen the wire rope attachment in the ventilation lever Loosen headless pin (1) with an Allen key SW 1.5 mm in the wire rope tightener. Remove wire rope (3) from the wire rope tighten- er, ventilation lever (2) and side part.
  • Page 17 Slimdrive EMD F-IS Types of installation Dismantle brake unit Loosen hex screw SW 5.5 mm (1) on the retaining plate (2). Turn retaining plate (2) to one side. Remove brake unit (3) with ventilation lever (4) from the motor shaft.
  • Page 18 Types of installation Slimdrive EMD F-IS Loosen M4 countersunk screw (6) with Allen key SW 2.5 mm and remove ventilation lever (4) from the brake unit (3). Fit the ventilation lever (4) in the correct position with M4 countersunk screw (6) on the new brake unit. Tightening torque 2.5 Nm Insert new brake unit (3) in the correct position...

  • Page 19: Ce Mark According To En 1158

    Slimdrive EMD F-IS CE mark according to EN 1158 CE mark according to EN 1158 The Slimdrive EMD F-IS has the following classification according to EN 1158:1997 + A1:2002: Reinhold-Vöster-Str. 21-29 D-71229 Leonberg 0672-CPR-0109 EN 1158:1997 + A1:2002 ID 168079 Affix the CE mark sticker on the inside of the cover.
  • Page 20 E-Mail: danmark.se@geze.com Tel. +49 (0) 7152 203 594 www.geze.at www.geze.hu www.geze.dk E-Mail: leonberg.de@geze.com Baltic States Iberia Singapore GEZE GmbH Baltic States office GEZE Iberia S.R.L. GEZE (Asia Pacific) Pte, Ltd. GEZE GmbH E-Mail: office-latvia@geze.com E-Mail: info@geze.es E-Mail: gezesea@geze.com.sg Niederlassung Süd-Ost www.geze.com www.geze.es...
