• The Search and Mark buttons (← (Previous), → (Next), and Set/Clear), and the Multipurpose knob, let you add
marks (tags) to points on a signal of interest waveform, and quickly jump to those marks. This is very useful when
examining long record length waveforms.

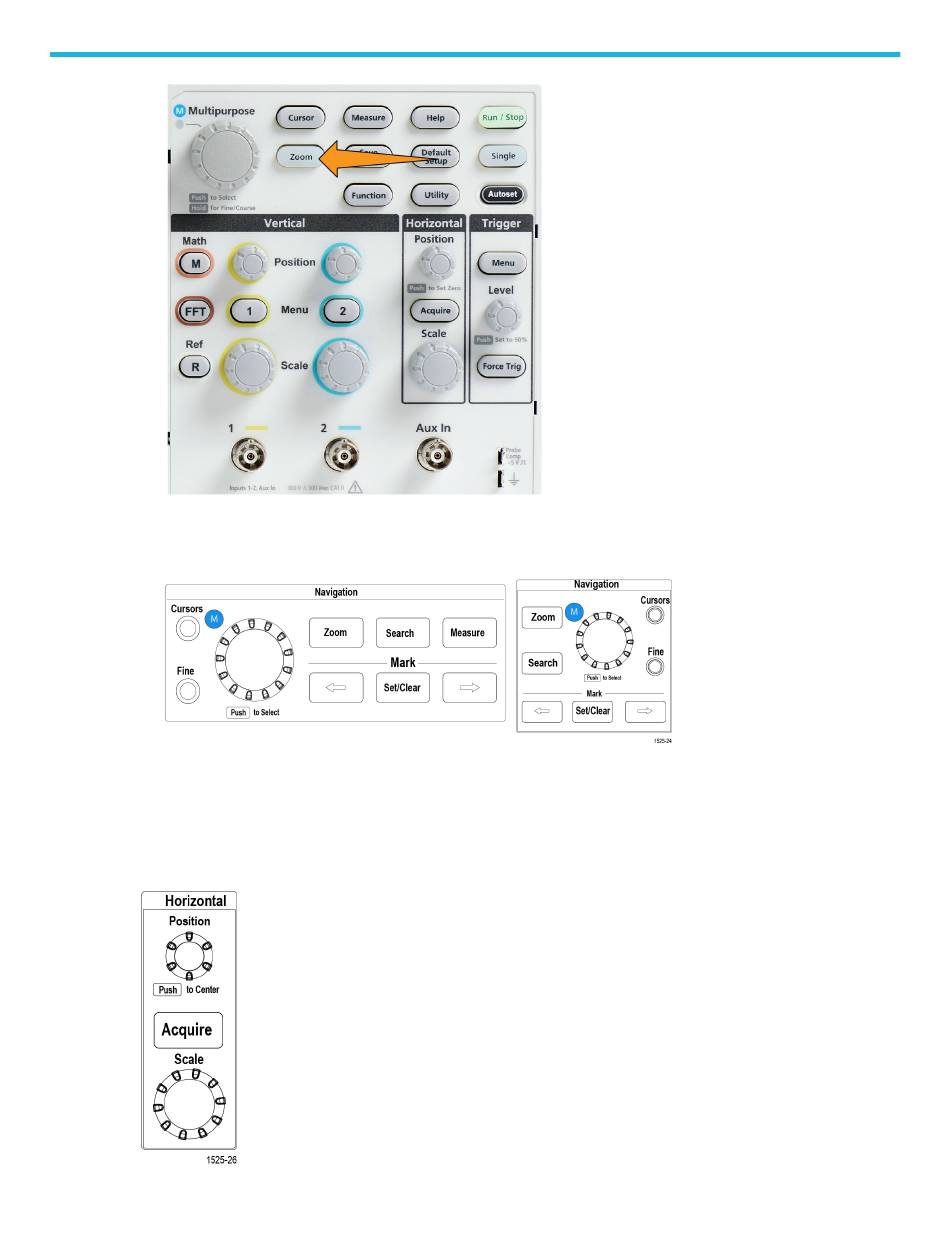

Figure 3: Navigation on 2 and 4 channel on TBS2000B TBS1000C

The Horizontal controls

The Horizontal Position knob adjusts the trigger point location left or right relative to the acquired waveform record.
