Push the Offset side-menu
button.
To set a specific offset voltage,
use the Multipurpose knob to
select and click the offset value
field. Use the knob to change the
value; the waveform on the
screen moves as you change the
value. Click the knob again to exit
the field.
To set the offset value to 0, use
the Multipurpose knob to select
and click Set to 0.

Setting the waveform vertical position

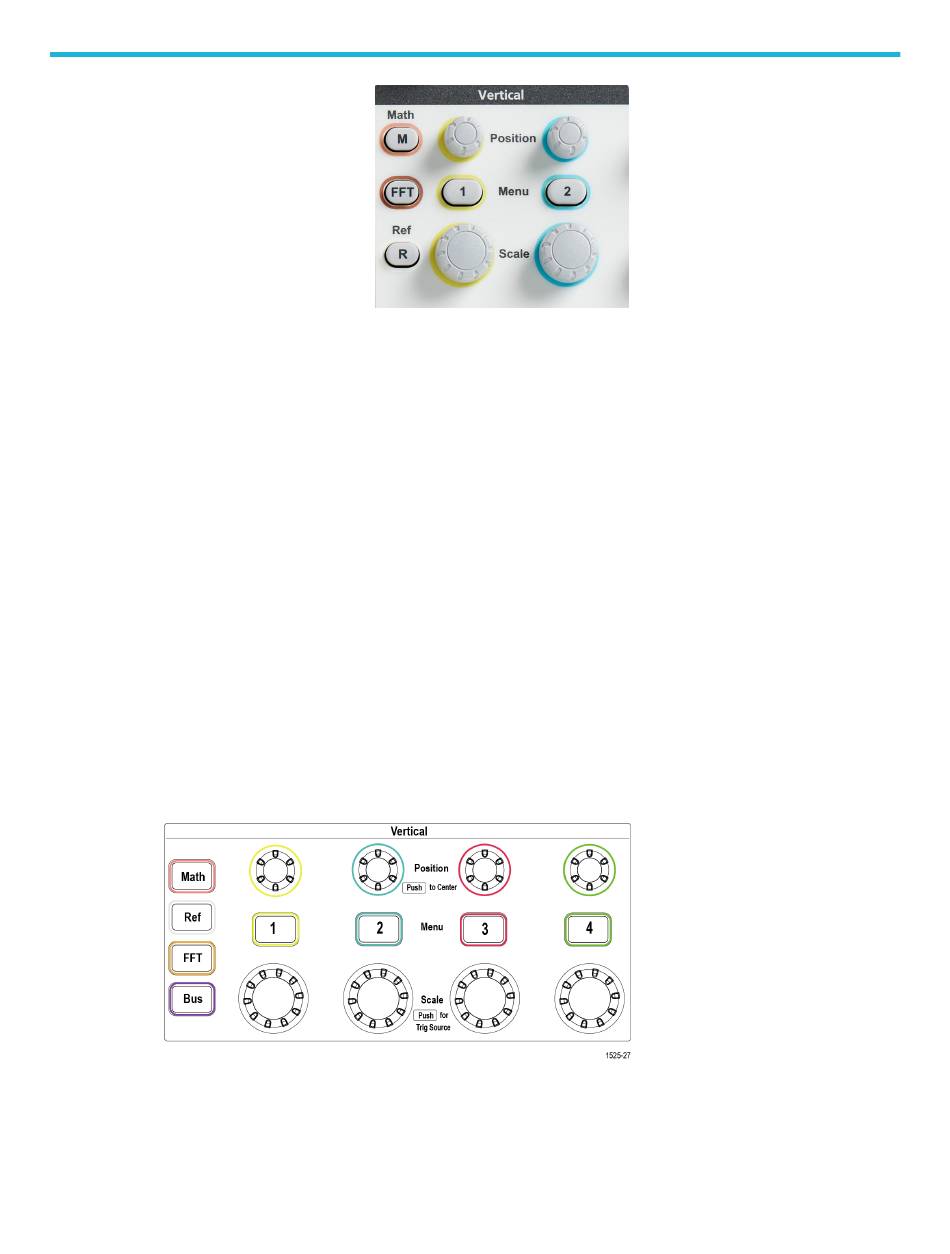

To quickly position a waveform position, use the Vertical Position knob on the front panel for the channel that you want to
move.
The Position submenu lets you set the vertical signal position, which moves the waveform up or down on the screen. This
menu also lets you quickly set the waveform 0 (ground) value to the center horizontal graticule. See
vertical position and vertical offset
1. Push the Vertical Menu button for the channel input that you want to set. Each channel's settings are independent of
the other channels.
TBS2000B Series Oscilloscopes User Manual
on page 54.
Setting channel input parameters
The difference between
53
