Using the USB file utility functions

Use the File Utility functions to do file-related tasks on a connected USB drive. File tasks include:
• Change the default folder where files are saved. See
on page 127.
• Create new folders See
• Delete files and folders See
• Rename files and folders See
• Format the USB drive See

Overview of the File Utility pane

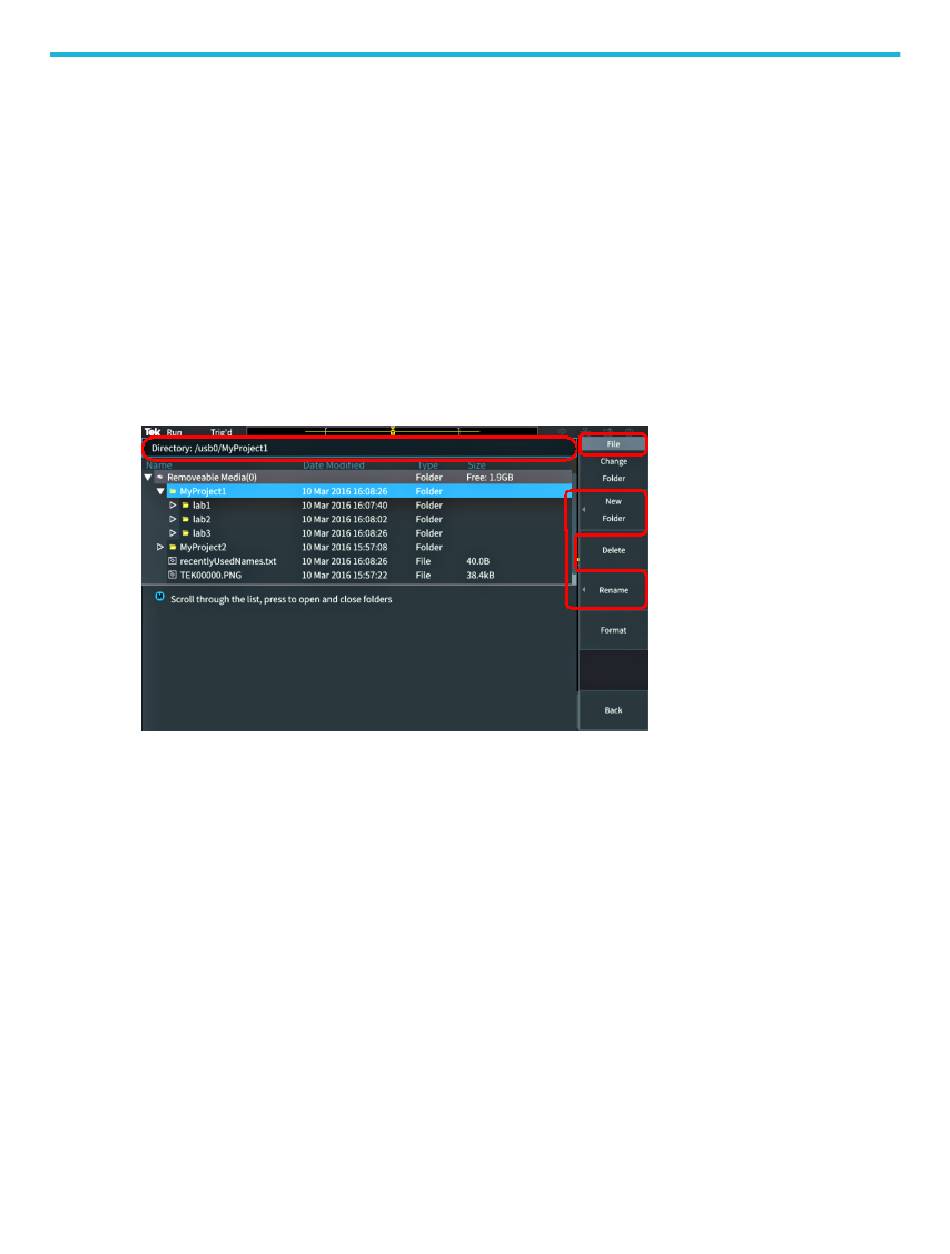

To open the File Utility File Browser pane, push the Save/Recall Save Recall front-panel button and push the File Utility
File Browser side-menu button.
• The Directory field lists the path for the highlighted folder or file. This is also the field you use to enter text to create or
rename files or folders.
• The area below the Directory field shows the files and folders. Use the Multipurpose knob to highlight a name. Push
the Multipurpose to open or close a folder. Folders are marked with a ► when closed, and with a ▼ when that folder
is open.
• The File side-menu buttons perform the indicated file utility functions. Change Folder, and Delete ,and Format directly
perform the indicated tasks.
• New Folder and Rename open the character entry field, keyboard, and side-menu buttons, shown in the following
image.
TBS2000B Series Oscilloscopes User Manual
Changing the default file save location on the USB drive
Creating a new folder on the USB drive
Deleting files or folders from the USB drive
Renaming files or folders on the USB drive
Formatting the USB drive on page 132.
Using the USB file utility functions
on page 128.
on page 130.
on page 130.
