Deskew Tips - Tektronix TBS2000B Series User Manual

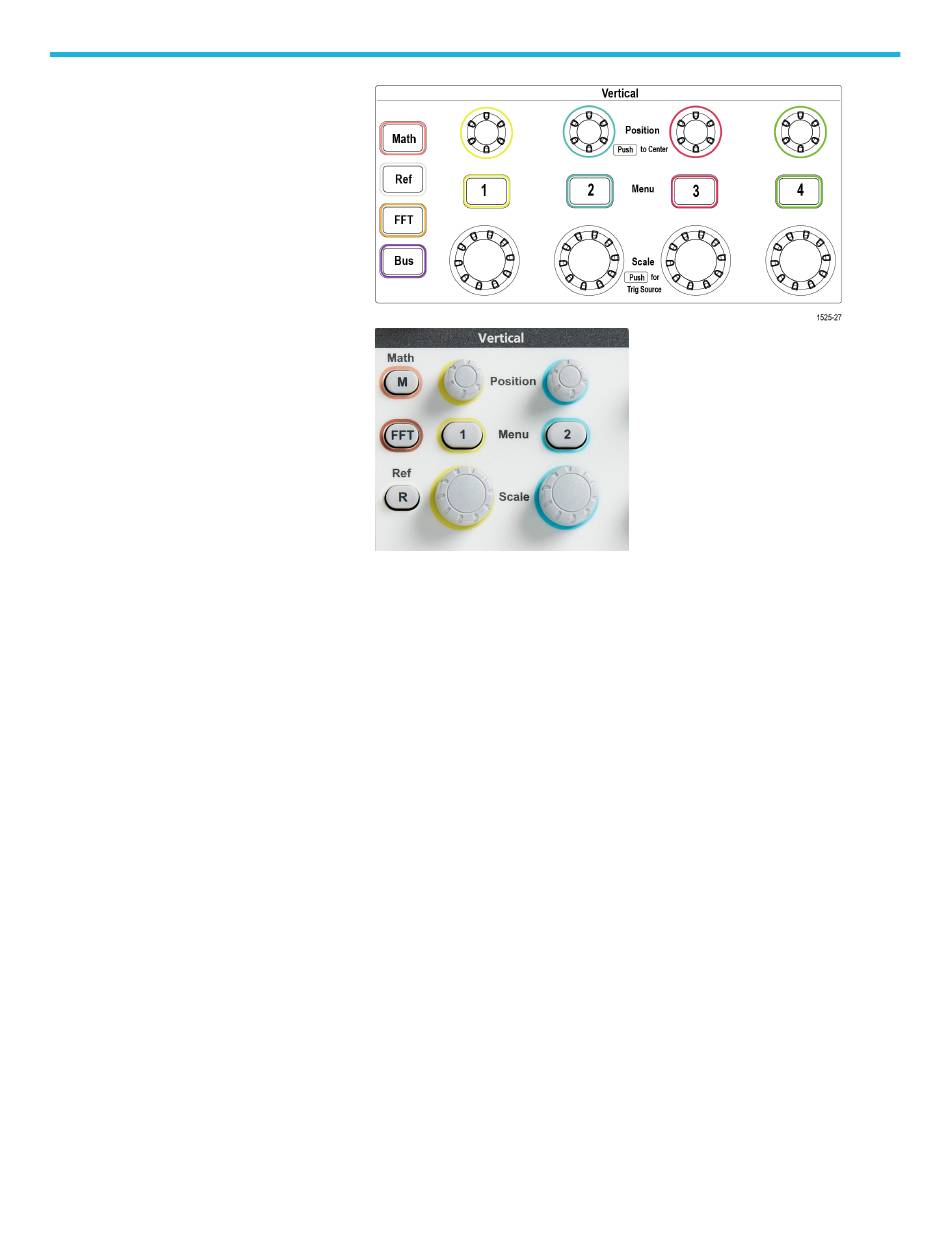

Push the Vertical Menu button for
the channel input that you want
to set.
Push the More side-menu button.
Use the Multipurpose knob to
select and click Deskew.
To set a specific deskew delay,
use the Multipurpose knob to
select and click 0s. Then use the
knob to change and set the value.
The waveform on the screen
moves as you adjust the value.
To set the deskew to the
oscilloscope default (0 delay),
use the Multipurpose knob to
select and click Set to Default.

Deskew tips

• Deskew settings are stored in nonvolatile memory until changed manually for each channel.
• Deskew settings are included in saved setup files.
• Doing a Default Setup resets deskew values to 0 on all channels.
TBS2000B Series Oscilloscopes User Manual
Setting channel input parameters
55
