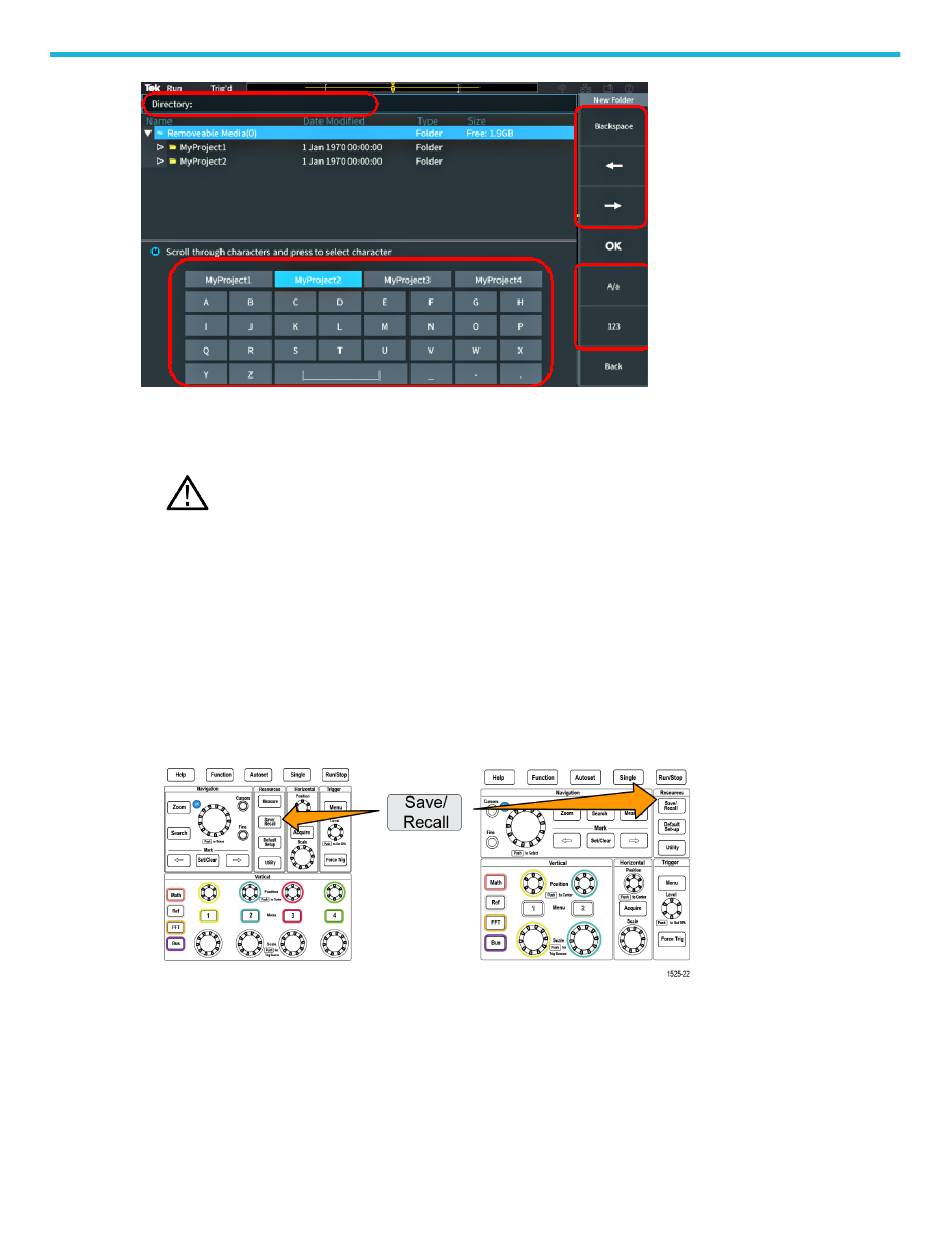

Use the Multipurpose knob to select and click a recently created name (listed at top of the characters list), or highlight
•
the individual letters of the name that you want to enter. Then push the Multipurpose knob to add that letter to the
Directory field. Repeat this process to enter the entire name.
Note: If you are renaming an image, waveform, or setting file, you do not need to add the extension name
when renaming the file.
• Use the upper side-menu buttons to delete the character to the left of the cursor (Backspace). or move the cursor left or
right in the Directory field.
• Use the lower side-menu buttons to show upper-or lower-case letters on the keyboard or show a numeric keypad.
• Push the OK side-menu button to create or rename the file or folder with the name in the Directory field.

Changing the default file save location on the USB drive

By default, the oscilloscope saves image, waveform, and setup files to the top directory of the USB drive. Use this
procedure to select a different default save folder on the USB drive in which to save files.
1. Push the Save/Recall Save Recall front-panel button.
