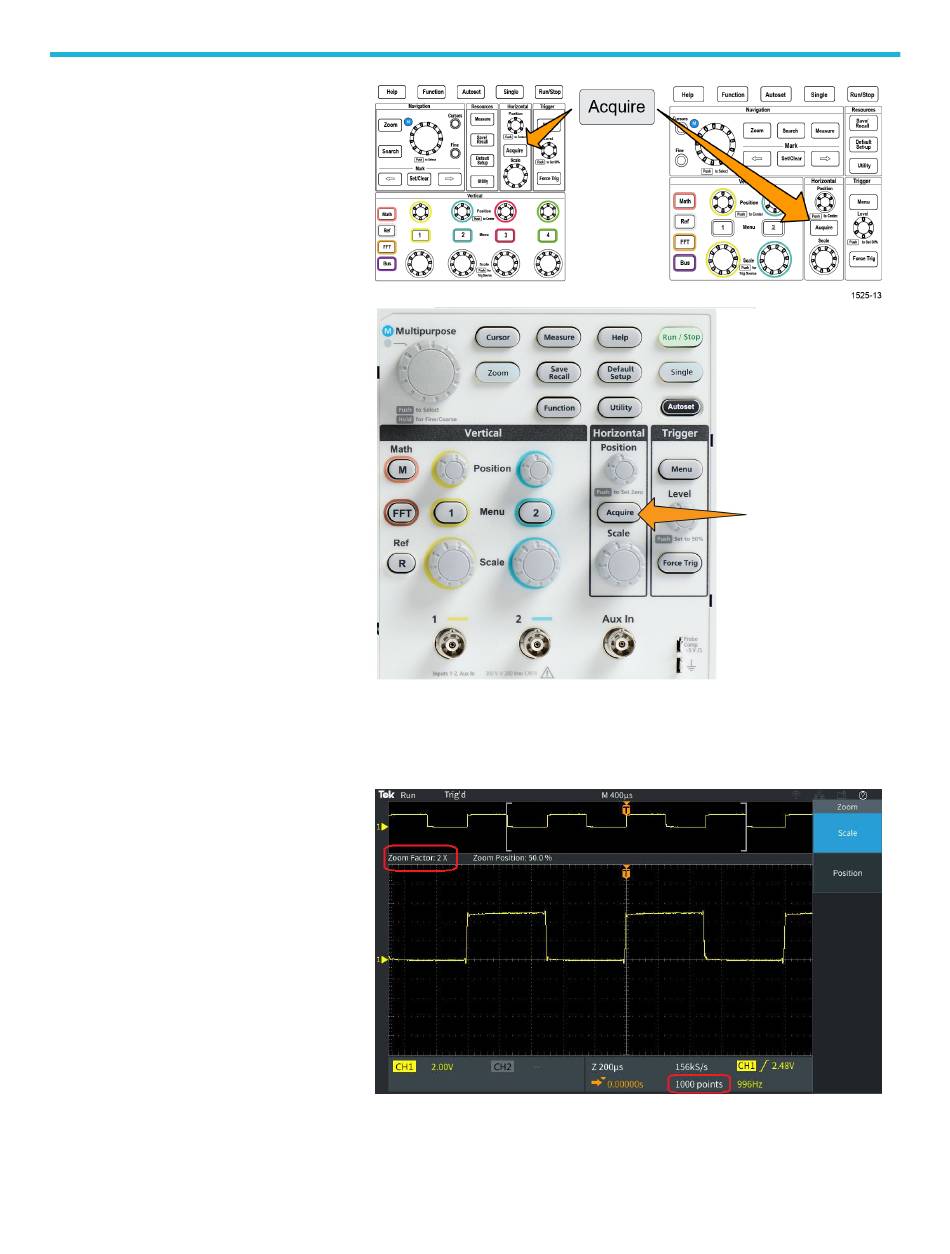

Acquisition setup
Push Acquire.
Push the Record Length side-
menu button.
Use the Multipurpose knob to
select and set the record length.
Use longer record lengths to
either capture more samples for a
waveform record, or capture
more cycles of a waveform, then
use the Zoom controls to
investigate the waveform in more
detail.
TBS2000B Series Oscilloscopes User Manual
71
