4.1 Screen 1: GPS MAP (... cont)

4.1.4 Data Boxes

General.
Data boxes on the GPS MAP screen can
show a wide range of useful data items. Using the
middle right button, 2 or 4 data boxes can be toggled
on and off.
Contents.
The contents of the data boxes can
be selected by touching and holding the databox
or from the SETTINGS menu. Please refer to the
MAIN MENU / Settings Menu section of the User
Guide for full details of each data item.
Data Boxes and Profiles.
An easy way to change
several databoxes at once is to set up different
selection in Profiles. Switching a Profile can thus
be used to change all the data boxes at once.
Alternatively, Press & Hold on the touchscreen will
take you directly to the relevant settings menu.
Independent Boxes.
The contents of the 4 Data
Box selection are independent of the 2 Daya Box
selection. So it is possible to set up 6 separate data
items, or repeat items between the 2 and 4 box
selection.
Elevation Data and Data Boxes.
pressing of the Data Box toggle button will then
reveal the GPS MAP / ELEV screen, and then an
addition 2 Data Boxes. One last press will return to
the GPS MAP screen and no data boxes.
Software v3.13.11

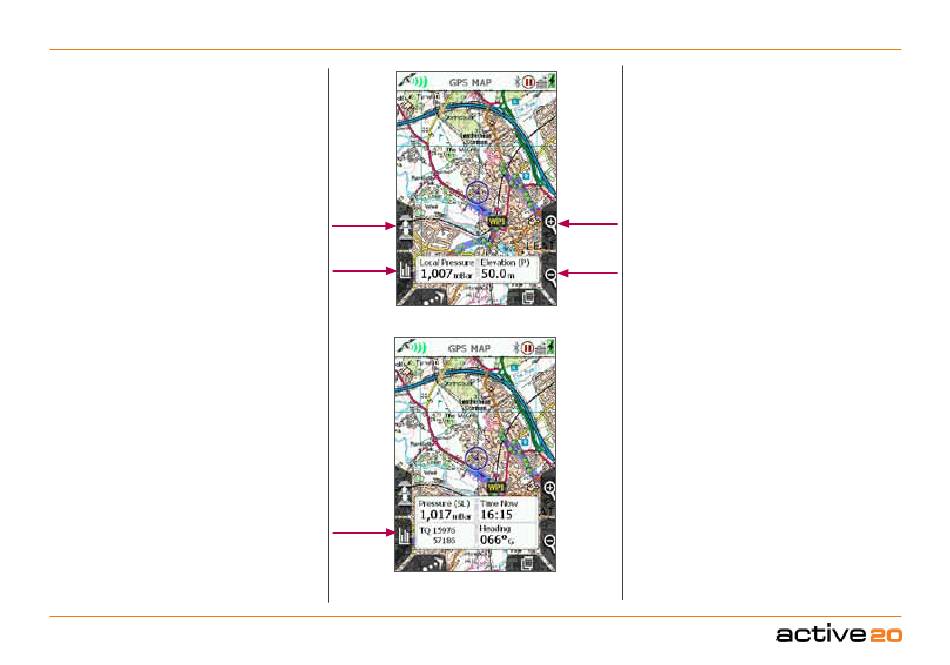

Toggle
Maps
Toggle
Data Boxes
Repeated
2 or 4
Data Boxes
Zoom
In
Zoom
Out
2 Data Boxes
4 Data Boxes
14
Data Items available
Speed Now 42.
1.
Average Speed
2. 43.
Average Moving 44.
3.
4. Max Speed 45.
Wheel Speed 46.
5.
6. Time Now 47.
Time Moving 48.
7.
8. Stopped time 49.
Trip Time 50.
9.
Trip Elapsed Time 51.
10.
Trip Distance 52.
11.
Elevation (Pressure) 53.
12.
Elevation (Maps)
13. 54.
Elevaton (GPS) 55.
14.
Gradient
15. 56.
Max Altitude 57.
16.
17. Min Altitude 58.
Total Ascents 59.
18.
19. Total Descents 60.
Local Pressure 61.
20.
21. Pressure (Sea Level) 62.
HRM 63.
22.
HRM (Avg) 64.
23.
Cadence 65.
24.
Cad (Avg) 66.
25.
Heading
26. 67.
Compass (Graphic) 68.
27.
GoTo Bearing
28. 69.
GoTo Distance 70.
29.
30. GoTo ETA 71.
GoTo Time 72.
31.
32. GoTo VMG 73.
Strt Line Dist 74.
33.
34. Nearest POI 75.
Bearing to POI 76.
35.
Nearest POI Dist 77.
36.
POI ETA
37. 78.
POI Time
38.
POI VMG
39.
Route Name
40.
Route Distance
41.
© Satmap Systems Ltd 2018
Route X-Track Err
Route Done
WP Index
WP Name
Bearing Next WP
Dist Next WP
ETA to Next
Time Next
VMG Next
WP Comments
Bearing to End
Distance to End
ETA to End
Time to End
VMG End
Date
Posn as UTM
Posn as MGRs
Posn as DD MM SS
Posn as DD MM.MM
Posn as DD.DDDDD
Posn as OSGB
Position (Local)
Sunrise
Sunset
Moon Phase
GPS Accuracy
CPU (1 sec)
CPU (5 sec)
CPU (10 sec)
CPU (30 sec)
Battery Voltage
Battery Level
PDOP
HDOP
VDOP
TDOP
