4.6 Screen 7: COMPASS / POINTER (... cont)

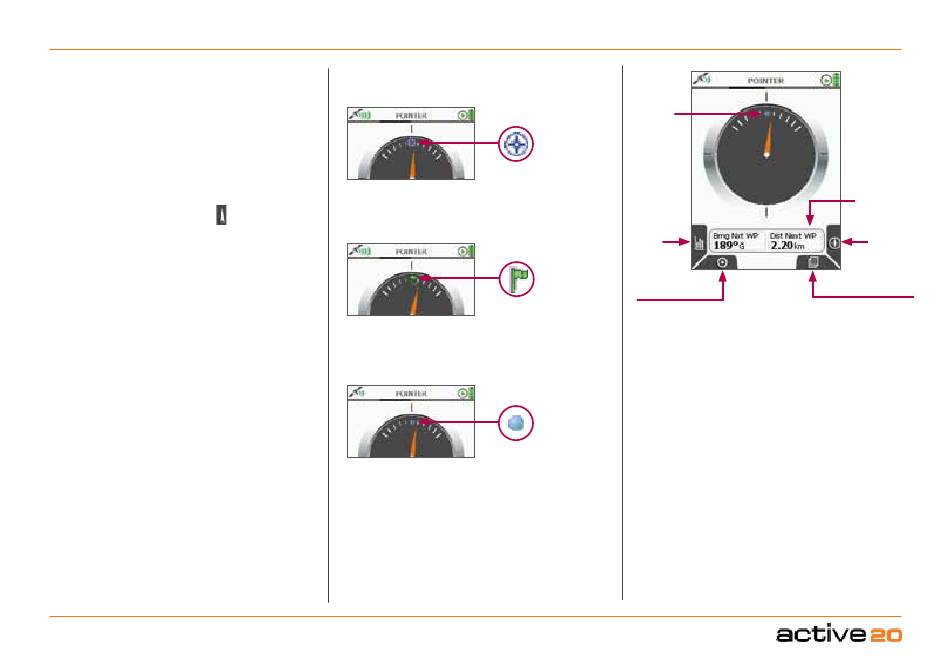

4.6.2 POINTER Screen

(MAIN MENU → COMPASS → POINTER)
Within the COMPASS menu there is the option of
following a Pointer, which points you in the direction
of your desired destination ie. a waypoint, Point
Of Interest (POI), Line Of Interest (LOI), Area Of
Interest (AOI) or GoTo point.
To access the POINTER screen, press the
button on the COMPASS screen
Buttons:
Target type
Scroll through overlays giving data on either nearest
Waypoint, Point Of Interest, Line Of Interest, Area
Of Interest, or Go To Point
GPS Map
Return to GPS MAP screen
Compass
Return to COMPASS screen
Primary Screens
Go to TRIP LOG screen and scroll through primary
screens
Note: You need at least 1 POI or route on the map for
the Pointer to work. (It does not work if you only have
one Grid, AOI or LOI).
There are 3 types of 'target' to select from using the
Target type button.
Software v3.13.11
1. Nearest POI/LOI/AOI
Only available once a POI has been entered.
Pointer
2. GoTo Point
Only available once a GoTo Point has been set. A
green flag will appear at the top of the pointer image.
3. Next WayPoint
Only available once a route has been activated. A
blue dot will appear at the top of the pointer image.
Target
Default icon
Target
type
GPS Map
In each target type, the 2-data field overlay contains
information on bearing and distance to the target.
Note: If you have POIs/LOIs/AOIs/waypoints set to
invisible, the pointer will not show their location.
24
icon
COMPASS
Pointer Screen
© Satmap Systems Ltd 2018
2-data field
overlay
Compass
Primary
Screens
