iii.

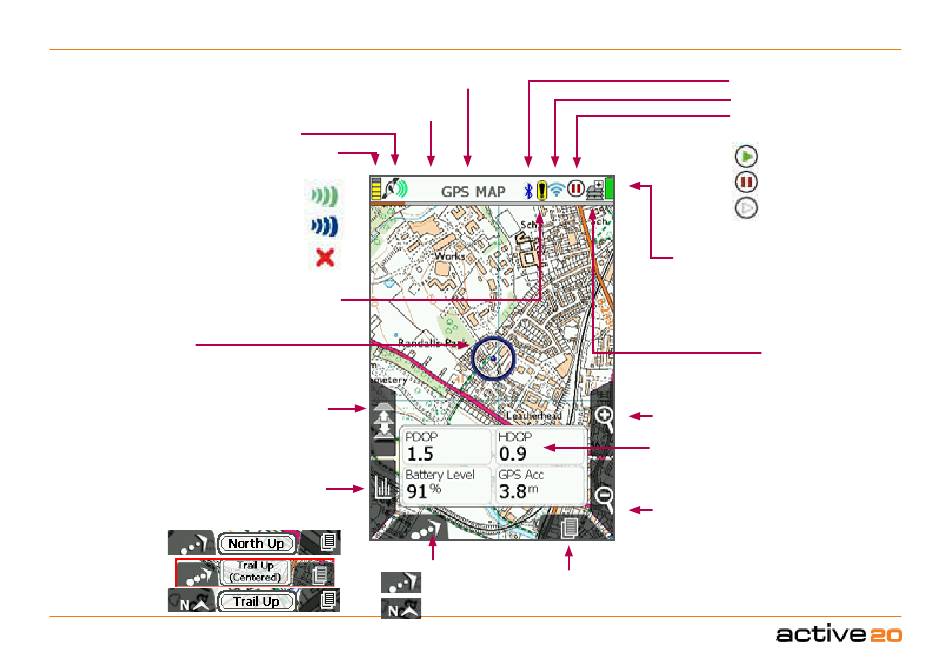

Map Screen Layout

GPS Signal Lock
Screen Brightness Icon
Normal lock
EGNOS/WAAS
lock
No lock
Memory Status Warning
U-R-Here Location Icon
Move the rocker pad left/
right to go into PLANNING
mode and see the
Planning icon, (square)
The icon on the
lower left shows the
orientation that will
next appear if the
front left button is
selected.
Software v3.13.11
Status Bar
All status icons
shown in the
top bar
Map Toggle
This is only
functional when
a toggle-enabled
map card is
loaded
Data Toggle
Show 2 & 4
data boes and
elevation profile
Map orientation
Screen name
Primary Screens
Trail Up
Use to scroll through the
primary screens
North Up
5
Bluetooth Icon
Wi-Fi Icon
Stop/Record Icon
Trip log status
Trip Log Active
Trip Log Inactive
No GPS Lock
Battery icon
When unit is fully
charged icon is a solid
block
Toggle Icon
Shows when a toggle-
enabled map card is
loaded
Zoom In
2 or 4 Data
Boxes. Touch
to adjust
contents
If the Trail Up
is showing, it means
North Up was the last
Zoom Out
option selected.
If the North Up
showing, it means
Up was the last option
selected.
© Satmap Systems Ltd 2018
icon
icon is
Trail
