4.1 Screen 1: GPS MAP

4.1.1 Screen Data Capture

Screenshots may be captured as jpeg files and
accessed in SatSYNC, listed with time/date details.
This might be useful in a variety of circumstances. For
example, sending a screenshot of a particular location
to another person or using a series of screenshots
in conjunction with timed digital photos for use in a
presentation.
Status Bar
Press and hold the for 2-3 seconds; a
camera icon briefly replaces the icons next to the
battery (i.e. Stop/Record icon, toggle icon). A beep
sounds to indicate a successful screenshot capture,
depending on your Beep Alert Count
To access your screenshot:
Connect your Active 20 to the computer via a USB
cable. Open either a Windows Explorer / Finder
or SatSYNC. Screenshots are found in
Storage / Screenshots. Select the screenshot and
either Drag & Drop (or Press Export SatSYNC)
transfer it to your computer.

4.1.2 GPS MAP Screen

For best results in achieving a satellite lock;The
Active 20 should be pointed at clear sky. The unit
can also acquire a lock through glass, i.e. windows/
car windshield.
Getting a GPS whilst moving may take longer. From
a cold start, very large MapCard may also slow the
GPS lock time slightly.
From start-up, the progress of the GPS lock can
be seen on the GPS STATUS screen, using the
Primary Screens (page foward) button.
The primary purpose of the "GPS Map" screen is
Software v3.13.11
to display your own location in the centre of the
screen (blue circle) and the mapping around you.
Buttons Functions (from L to R):
Toggle maps
stacked mapping) Toggle between available maps at
the same zoom level by pressing this button.
Note: You must be zoomed in or out to roughly the
right Map Scale to toggle between maps on your
map card.
Databoxes.
Toggle between none, 2 or 4 data
setting.
boxes on-screen. Keep on toggling and the
MAP / ELEV dynamic elevation screens will appear.
North Up/Trail Up
North Up, Trail Up (Centred), and Trail Up (Low)
Internal
Primary Screens.
Screens. SETTINGS
number of visible screens if you wish.
Zoom In / Out.
after zooming Note: Moving the rocker pad in the GPS
MAP screen will take you into PLANNING mode. To
avoid this, lock your keypad.
A successful satellite lock (a 'fix') is indicated at the
top left of the screen by the red cross changing to a
green or blue signal icon. The number of green or
blue crescents denotes the signal strength. A weak
lock is indicated by a single crescent plus a '2D'
caption.
The unit is EGNOS/WAAS enabled. This means
users in Europe and North America are able to
benefit from 'differential' GPS when one of the
EGNOS/WAAS satellites is in view. When this
service is available, the green signal crescents turn
(The Icon represents three layers of
GPS
. Map display cycles through
Scroll through the 10 Primary
allows you to reduce the
Map scale is displayed monentarily
12
blue and accuracy is enhanced.
Your position is shown as a blue dot in
the centre of the screen. Once moving, a
small pointer appears on the blue circle,
indicating the current direction of travel. As
you move, a snail trail of red dots is laid
down, indicating the path you have taken, as
long as you have started the trip log. To
change the red trail dot size may changed in
the Settings Menu.
The Active 20 logs your position once every
second. The rate at which red dots are
displayed depends on the map scale and
the speed of travel. Dots are laid down so
an appropriate distance is rendered between
them to create a clear track. A power saving
option (in Advanced Power Control), allows
screen data to be set to update once every
Blue "You
Are Here"
pointer
Toggle maps
Data boxes /
Elevation
Graph
North Up/
Trail Up

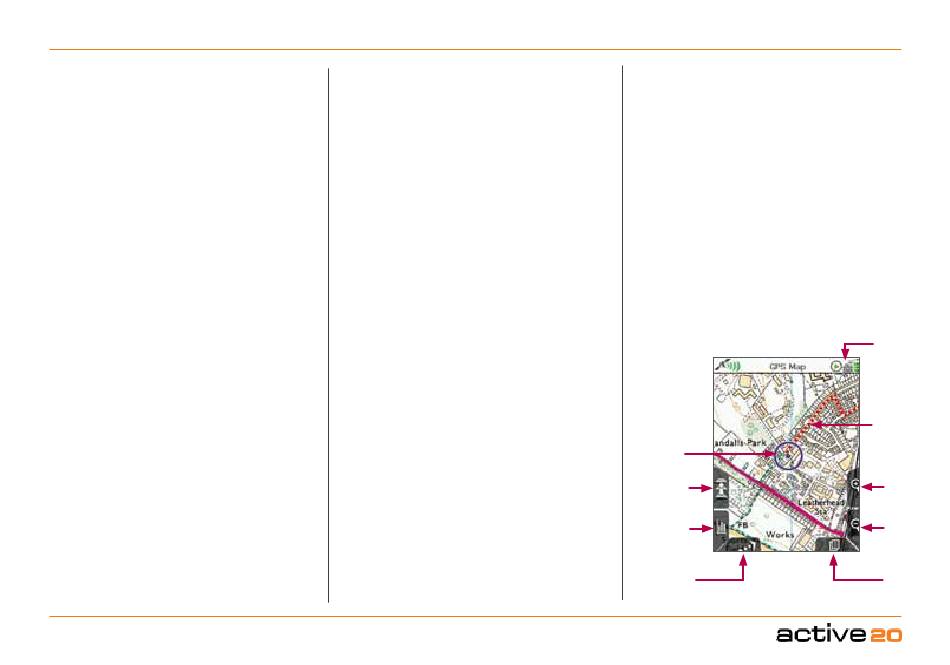

GPS MAP screen with function
buttons
