Screen 3: POSITION INFO

To access POSITION INFO Screen:
(GPS MAP / PLANNING → POSITION INFO, via
Primary Screen page forward)
The POSITION INFO screen is accessed from either
the GPS MAP or PLANNING screens screen either
by a centre press of the rocker pad, or by pressing
the Primary Screen button once.
The purpose of the POSITION INFO
display useful information about that particualr
location, be it your own location (GPS MAP) or
somewhere else on the map (PLANNING).
Buttons:
Set Marker -
This function allows you to measure
the distance and bearing between any two points on
the map, the first point being the centre of the circle
in the middle of the screen, and the second point
being any that you cursor to with the rocker pad,
connected by a red line. Cleared by using the
Marker button.
Map Packs -
Allows you to see the maps that are
present on your SD MapCard. A separate BookCover
will be displayed for each of the MapPacks present
on the SD card.
Spot Button ( Maps ) -
Flicks you back into your
previous map screen (GPS MAP or PLANNING).
Primary Screens -
Pages forward to the TRIP LOG
screen.
Add POI -
Will place a POI menu at the centre of the
circle. A defult name will be given (e.g. POI 1) that
can be over written, and a POI Icon can be selected.
Set GoTo -
This function places a
at the centre of the circle. A solid blue line will then
connect your location to the GoTo point at all times,
until the Clear GoTo button is pressed.
This is a particularly useful and quick way of setting a
simple, single-leg route. Especially when zoomed in
to view map detail, and when in Track Up mode, the
Software v3.13.11
GoTo line still shows the required direction.
Info Boxes: Local Grid & Lat/Long -
This features allows the location of the circle centre
to be simultaneously displayed in two grid formats.
The format of Local Grid is determined in the
SETTINGS / GPS Settings
The format of the right hand box has be pre-set as
Lat/Long (decimals). This feature is very useful if you
screen is to
may need to quickly convert one position format into
another: simply use the rocker pad to cursor to the
desired location, and then read off the other format
version of the grid reference.
Clear
GoTo waypoint

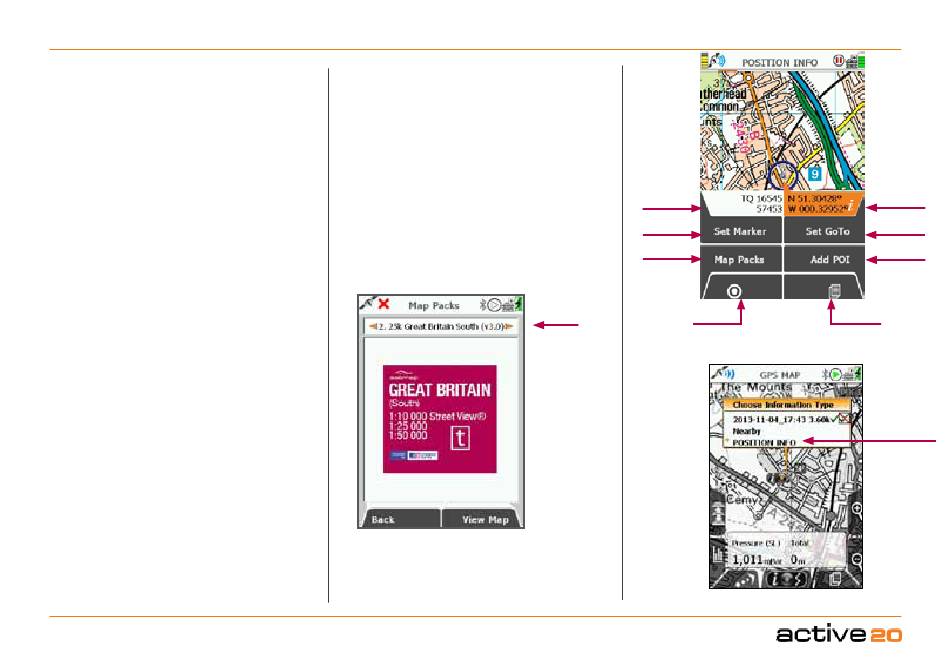

Exampe "Book Cover"
screen.
Local Grid
Set Marker
Map Packs
Map title
18
Lat/Long
Set GoTo
Add POI
Primary
Spot
Screens
Button
Alternate
access if
cursor is
on a Route
or POI
