4.1 Screen 1: GPS MAP (...Cont)

4.1.3 Data Boxes

General.
Data boxes on the GPS MAP screen can
show a wide range of useful data items. Using the
middle right button, 2 or 4 data boxes can be toggled
on and off.
Contents.
The contents of the data boxes can be
selected from the SETTINGS menu. Please refer to
the MAIN MENU / Settings Menu section of the User
Guide for full details of each data item.
Data Boxes and Profiles.
An easy way to change
several databoxes at once is to set up different
selection in Profiles. Switching a Profile can thus be
used to change all the data boxes at once.
Independent Boxes.
The contents of the 4 Data
Box selection is independent of the 2 Daya Box
selection. So it is possible to set up 6 separate data
items, or repeat items between the 2 and 4 box
selection.
Elevation Data and Data Boxes.
pressing of the Data Box toggle button will then
reveal the GPS MAP / ELEV screen, and then an
addition 2 Data Boxes. One last press will return to
the GPS MAP screen and no data boxes.
Software v3.0.9915
Toggle
Maps
Toggle
Data Boxes
Repeated
2 or 4
Data Boxes
Zoom
In
Zoom
Out

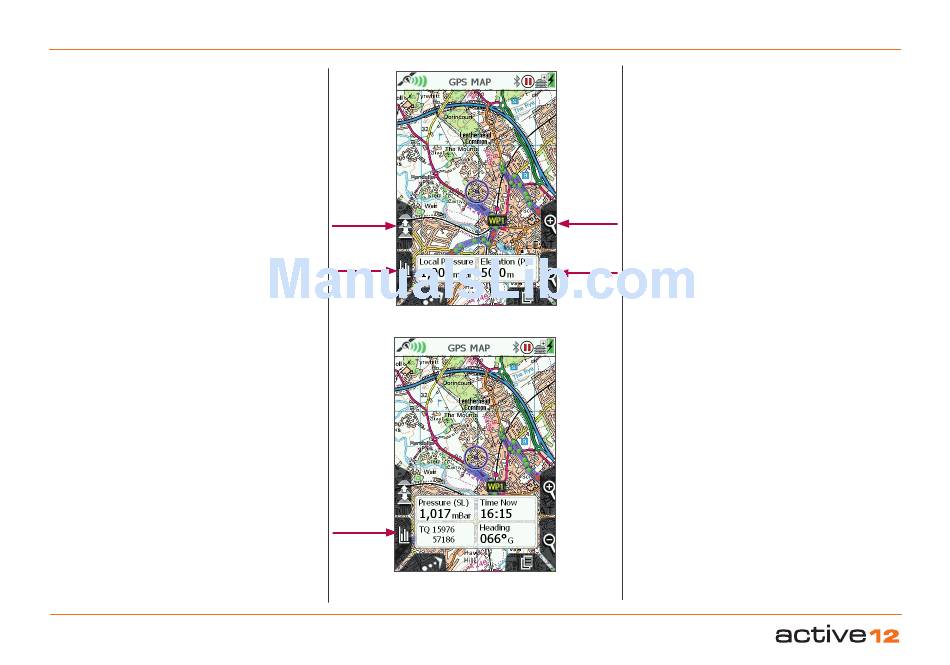

2 Data Boxes
4 Data Boxes
14
Data Items available
42. Bearing Next WP
1. Speed Now
2. Average Speed 43. Dist Next WP
44. ETA to Next
3. Average Moving
45. Time Next
4. Max Speed
46. VMG Next
5. Wheel Speed
47. Bearing to End
6. Time Now
7. Time Moving 48. Distance to End
49. ETA to End
8. Stopped time
9. Trip Time 50. Time to End
51. VMG End
10. Trip Distance
11. Elevation (Pressure) 52. Date
53. Location
12. Elevation (Maps)
13. Elevaton (GPS) 54. Posn as Lat.Long
55. Sunrise
14. Gradient
15. Max Altitude 56. Sunset
57. Moon Phase
16. Min Altitude
58. GPS Accuracy
17. Total Ascents
59. Battery Voltage
18. Total Descents
19. Local Pressure
20. Pressure (Sea Level)
21. HRM
22. HRM (Avg)
23. Cadence
24. Cad (Avg)
25. Heading
26. GoTo Bearing
27. GoTo Distance
28. GoTo ETA
29. GoTo Time
30. GoTo VMG
31. Nearest POI
32. Bearing to POI
33. Nearest POI Dist
34. POI ETA
35. POI Time
36. POI VMG
37. Route Name
38. Route Distance
39. Route X-Track Err
40. Route Done
41. WP Name
