Merging Data Between Sites

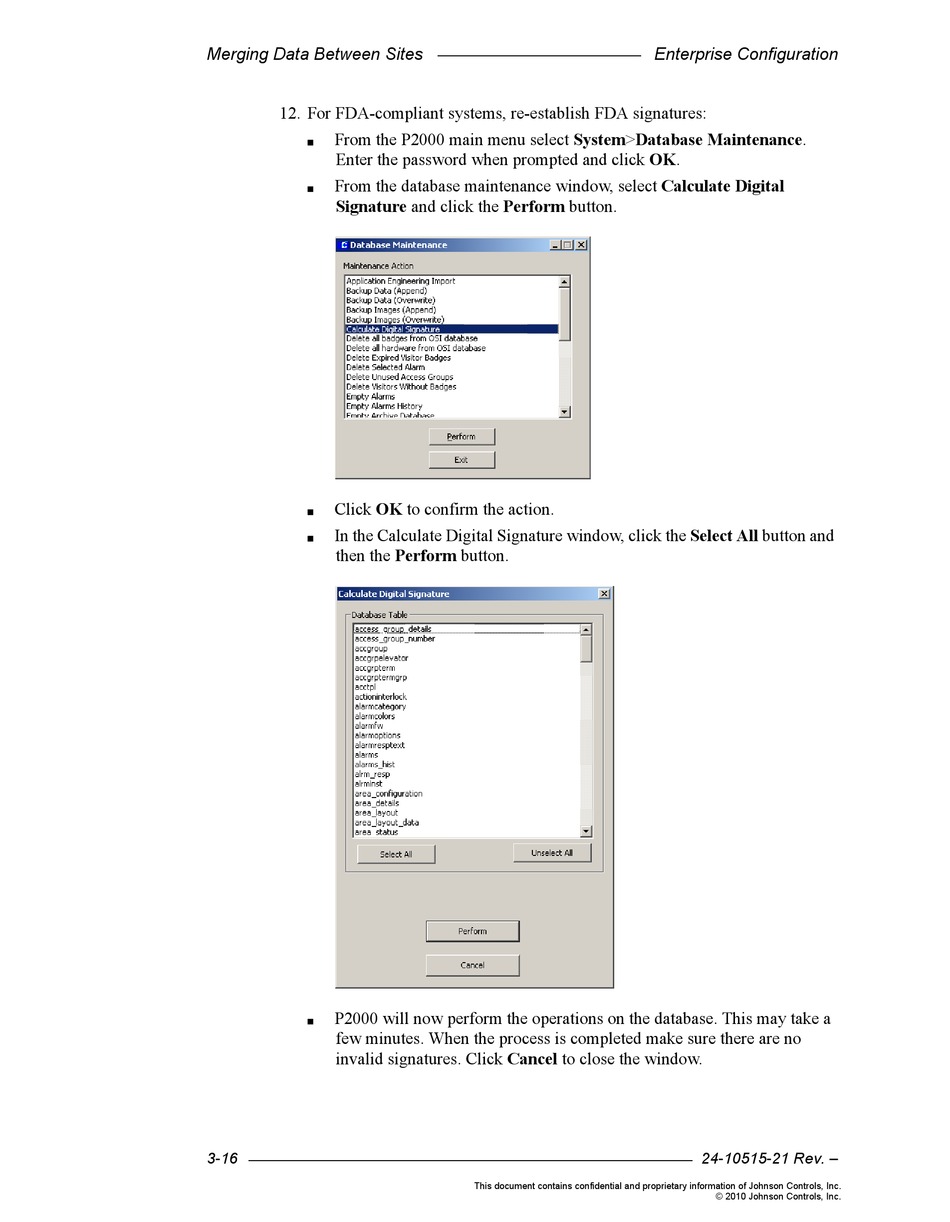

12. For FDA-compliant systems, re-establish FDA signatures:
From the P2000 main menu select System>Database Maintenance.

Enter the password when prompted and click OK.
From the database maintenance window, select Calculate Digital

Signature and click the Perform button.
Click OK to confirm the action.

In the Calculate Digital Signature window, click the Select All button and

then the Perform button.
P2000 will now perform the operations on the database. This may take a

few minutes. When the process is completed make sure there are no
invalid signatures. Click Cancel to close the window.
