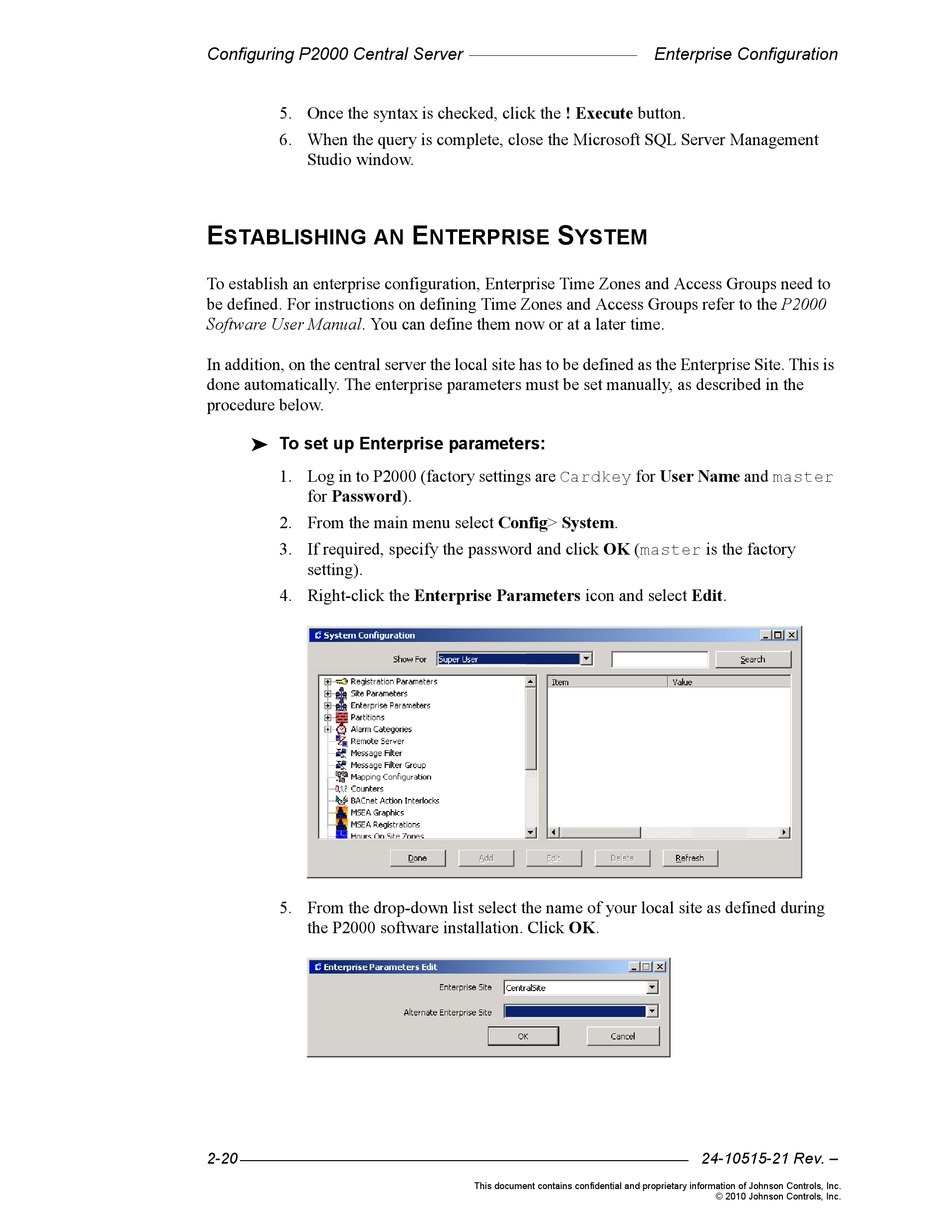

Establishing An Enterprise System - Johnson Controls P2000 Configuration

Configuring P2000 Central Server
5. Once the syntax is checked, click the ! Execute button.
6. When the query is complete, close the Microsoft SQL Server Management
Studio window.
E
STABLISHING AN
To establish an enterprise configuration, Enterprise Time Zones and Access Groups need to
be defined. For instructions on defining Time Zones and Access Groups refer to the P2000
Software User Manual. You can define them now or at a later time.
In addition, on the central server the local site has to be defined as the Enterprise Site. This is
done automatically. The enterprise parameters must be set manually, as described in the
procedure below.
 To set up Enterprise parameters:
1. Log in to P2000 (factory settings are Cardkey for User Name and master
for Password).
2. From the main menu select Config> System.
3. If required, specify the password and click OK (master is the factory
setting).
4. Right-click the Enterprise Parameters icon and select Edit.
5. From the drop-down list select the name of your local site as defined during
the P2000 software installation. Click OK.
2-20
E S
NTERPRISE YSTEM
This document contains confidential and proprietary information of Johnson Controls, Inc.
Enterprise Configuration
24-10515-21 Rev. –
© 2010 Johnson Controls, Inc.
