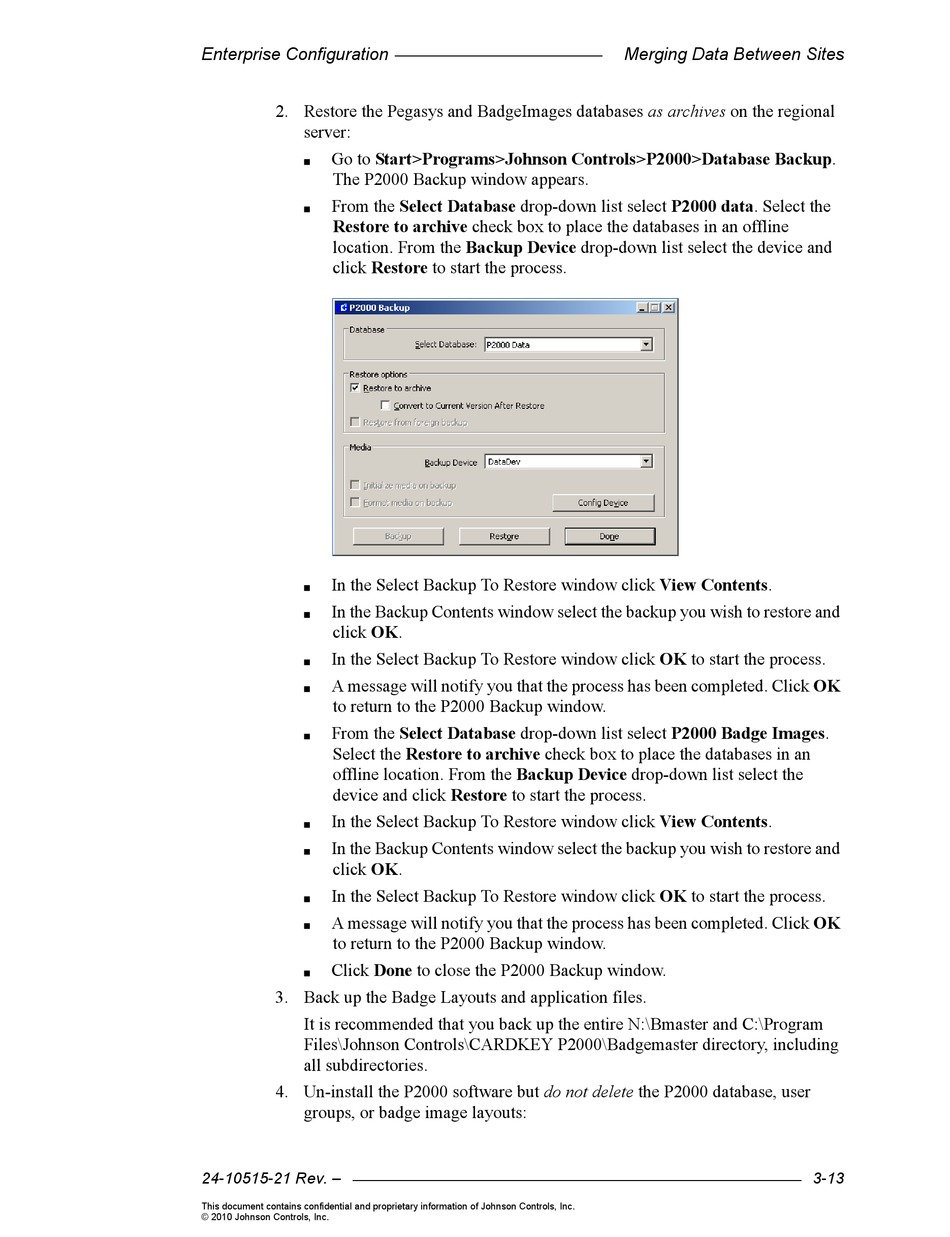

Johnson Controls P2000 Configuration page 55

Enterprise Configuration
2. Restore the Pegasys and BadgeImages databases as archives on the regional
server:
Go to Start>Programs>Johnson Controls>P2000>Database Backup.

The P2000 Backup window appears.
From the Select Database drop-down list select P2000 data. Select the

Restore to archive check box to place the databases in an offline
location. From the Backup Device drop-down list select the device and
click Restore to start the process.
In the Select Backup To Restore window click View Contents.

In the Backup Contents window select the backup you wish to restore and

click OK.
In the Select Backup To Restore window click OK to start the process.

A message will notify you that the process has been completed. Click OK

to return to the P2000 Backup window.
From the Select Database drop-down list select P2000 Badge Images.

Select the Restore to archive check box to place the databases in an
offline location. From the Backup Device drop-down list select the
device and click Restore to start the process.
In the Select Backup To Restore window click View Contents.

In the Backup Contents window select the backup you wish to restore and

click OK.
In the Select Backup To Restore window click OK to start the process.

A message will notify you that the process has been completed. Click OK

to return to the P2000 Backup window.
Click Done to close the P2000 Backup window.

3. Back up the Badge Layouts and application files.
It is recommended that you back up the entire N:\Bmaster and C:\Program
Files\Johnson Controls\CARDKEY P2000\Badgemaster directory, including
all subdirectories.
4. Un-install the P2000 software but do not delete the P2000 database, user
groups, or badge image layouts:
24-10515-21 Rev. –
This document contains confidential and proprietary information of Johnson Controls, Inc.
© 2010 Johnson Controls, Inc.
Merging Data Between Sites
3-13
