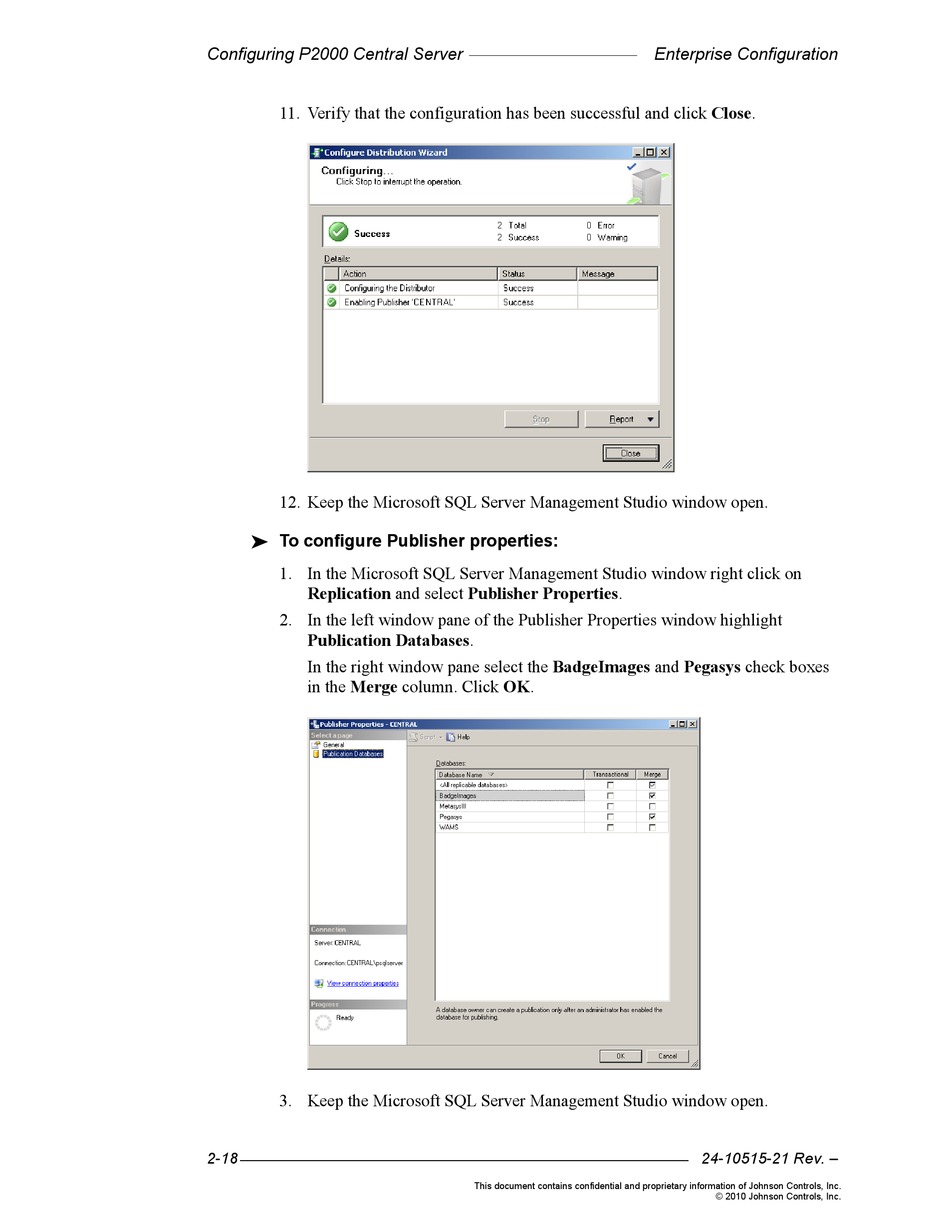

Johnson Controls P2000 Configuration page 32

Configuring P2000 Central Server
11. Verify that the configuration has been successful and click Close.
12. Keep the Microsoft SQL Server Management Studio window open.
 To configure Publisher properties:
1. In the Microsoft SQL Server Management Studio window right click on
Replication and select Publisher Properties.
2. In the left window pane of the Publisher Properties window highlight
Publication Databases.
In the right window pane select the BadgeImages and Pegasys check boxes
in the Merge column. Click OK.
3. Keep the Microsoft SQL Server Management Studio window open.
2-18
This document contains confidential and proprietary information of Johnson Controls, Inc.
Enterprise Configuration
24-10515-21 Rev. –
© 2010 Johnson Controls, Inc.
