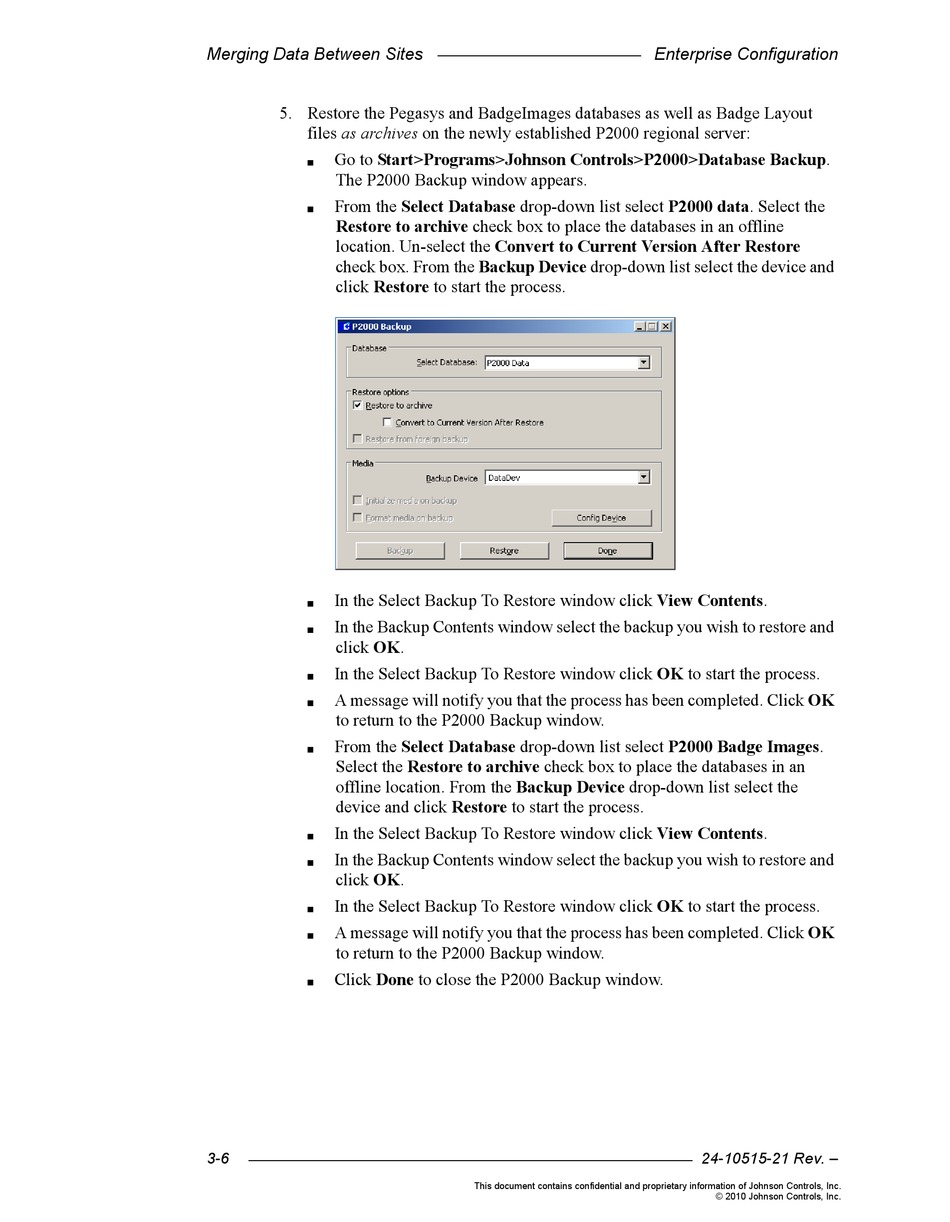

Johnson Controls P2000 Configuration page 48

Merging Data Between Sites
5. Restore the Pegasys and BadgeImages databases as well as Badge Layout
files as archives on the newly established P2000 regional server:
Go to Start>Programs>Johnson Controls>P2000>Database Backup.

The P2000 Backup window appears.
From the Select Database drop-down list select P2000 data. Select the

Restore to archive check box to place the databases in an offline
location. Un-select the Convert to Current Version After Restore
check box. From the Backup Device drop-down list select the device and
click Restore to start the process.
In the Select Backup To Restore window click View Contents.

In the Backup Contents window select the backup you wish to restore and

click OK.
In the Select Backup To Restore window click OK to start the process.

A message will notify you that the process has been completed. Click OK

to return to the P2000 Backup window.
From the Select Database drop-down list select P2000 Badge Images.

Select the Restore to archive check box to place the databases in an
offline location. From the Backup Device drop-down list select the
device and click Restore to start the process.
In the Select Backup To Restore window click View Contents.

In the Backup Contents window select the backup you wish to restore and

click OK.
In the Select Backup To Restore window click OK to start the process.

A message will notify you that the process has been completed. Click OK

to return to the P2000 Backup window.
Click Done to close the P2000 Backup window.

