Merging Data Between Sites
There are two possible scenarios for establishing a live P2000 site version 3.10 as a part of an
Enterprise system. In the first scenario, you will be using additional server hardware taking
on the P2000 server functions during the transition.In the second scenario, no additional
hardware is necessary.
Please refer to the following sections:
"Live System Upgrade to Enterprise Configuration Using Additional Hardware" on

page 3-2
"Live System Upgrade to Enterprise Configuration Without Additional Hardware"

on page 3-12
Live System Upgrade to Enterprise Configuration Using
Additional Hardware
You are starting with the P2000 system version 3.10 that is to become a regional site
in the P2000 Enterprise Configuration.
Hub
Panels and P2000 Workstations
version 3.10

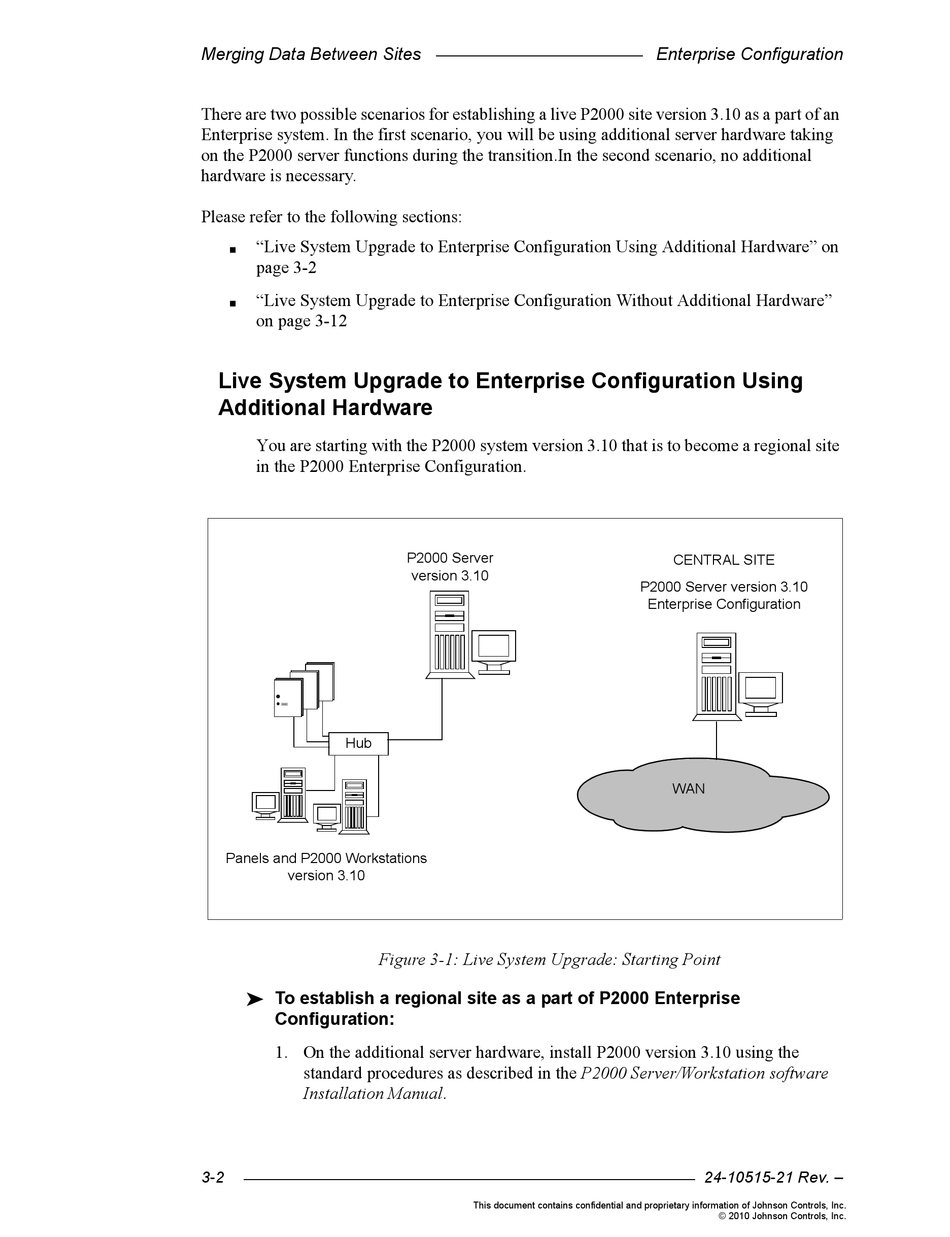

Figure 3-1: Live System Upgrade: Starting Point
 To establish a regional site as a part of P2000 Enterprise
Configuration:
1. On the additional server hardware, install P2000 version 3.10 using the
standard procedures as described in the P2000 Server/Workstation software
Installation Manual.
3-2
P2000 Server
version 3.10
This document contains confidential and proprietary information of Johnson Controls, Inc.
Enterprise Configuration
CENTRAL SITE
P2000 Server version 3.10
Enterprise Configuration
WAN
24-10515-21 Rev. –
© 2010 Johnson Controls, Inc.
