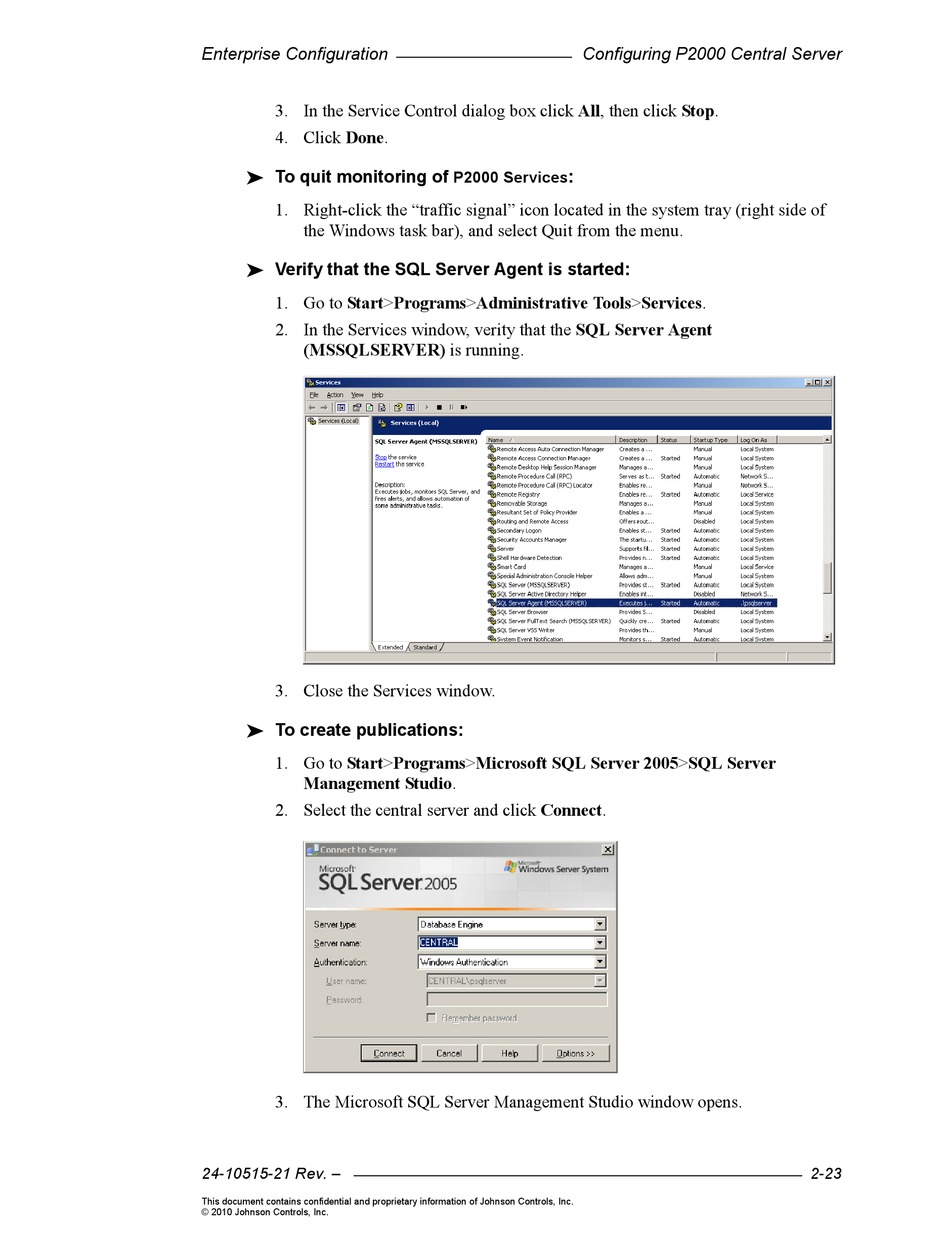

Johnson Controls P2000 Configuration page 37

Enterprise Configuration
3. In the Service Control dialog box click All, then click Stop.
4. Click Done.
 To quit monitoring of
1. Right-click the "traffic signal" icon located in the system tray (right side of
the Windows task bar), and select Quit from the menu.
 Verify that the SQL Server Agent is started:
1. Go to Start>Programs>Administrative Tools>Services.
2. In the Services window, verity that the SQL Server Agent
(MSSQLSERVER) is running.
3. Close the Services window.
 To create publications:
1. Go to Start>Programs>Microsoft SQL Server 2005>SQL Server
Management Studio.
2. Select the central server and click Connect.
3. The Microsoft SQL Server Management Studio window opens.
24-10515-21 Rev. –
This document contains confidential and proprietary information of Johnson Controls, Inc.
© 2010 Johnson Controls, Inc.
Configuring P2000 Central Server
:
P2000 Services
2-23
