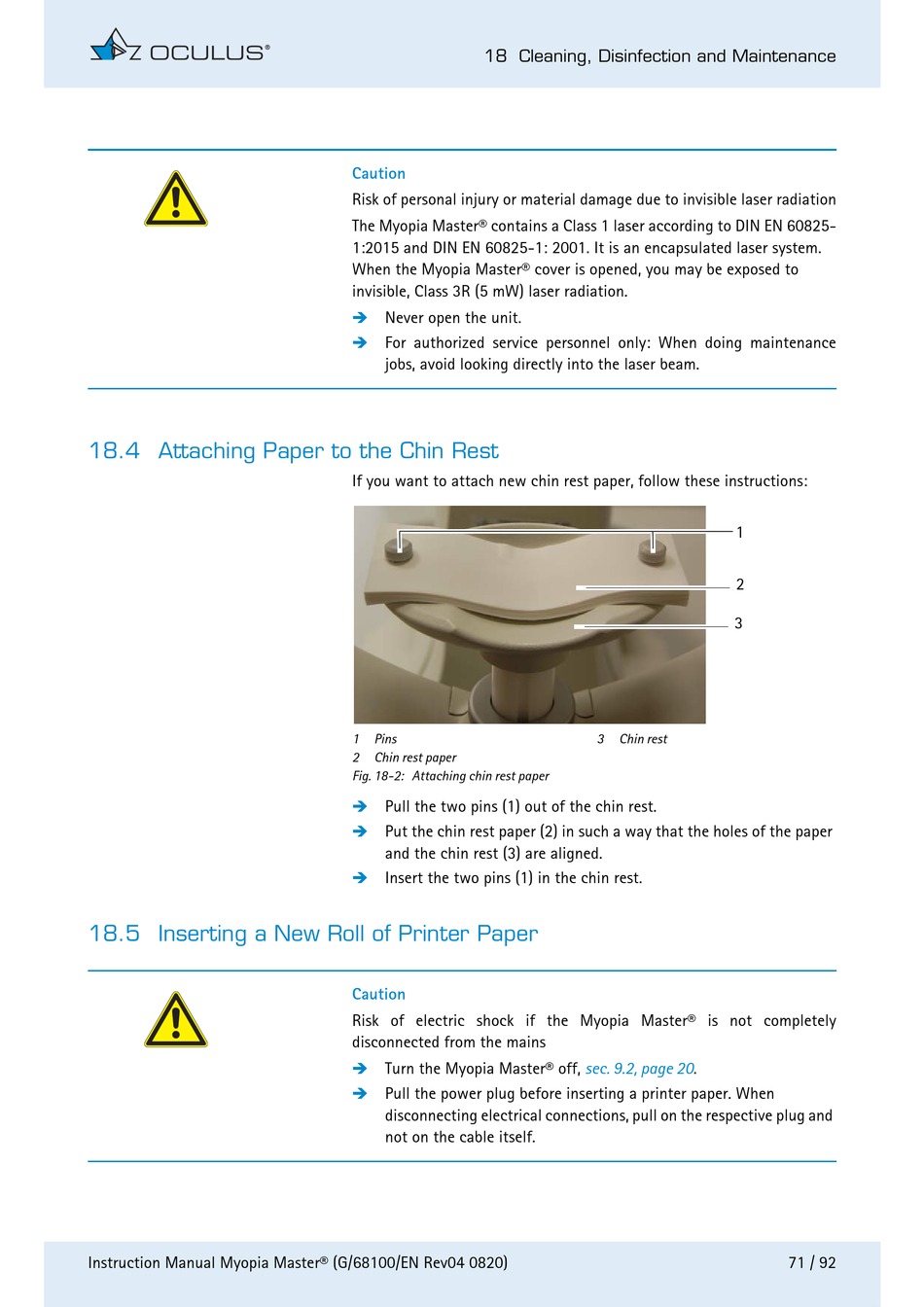

18.4 Attaching Paper to the Chin Rest

18.5 Inserting a New Roll of Printer Paper

Instruction Manual Myopia Master® (G/68100/EN Rev04 0820)
18 Cleaning, Disinfection and Maintenance
Caution
Risk of personal injury or material damage due to invisible laser radiation
The Myopia Master® contains a Class 1 laser according to DIN EN 60825-
1:2015 and DIN EN 60825-1: 2001. It is an encapsulated laser system.
When the Myopia Master® cover is opened, you may be exposed to
invisible, Class 3R (5 mW) laser radiation.

Never open the unit.

For authorized service personnel only: When doing maintenance
jobs, avoid looking directly into the laser beam.
If you want to attach new chin rest paper, follow these instructions:
1 Pins
2 Chin rest paper
Fig. 18-2: Attaching chin rest paper

Pull the two pins (1) out of the chin rest.

Put the chin rest paper (2) in such a way that the holes of the paper
and the chin rest (3) are aligned.

Insert the two pins (1) in the chin rest.
Caution
Risk of electric shock if the Myopia Master® is not completely
disconnected from the mains

Turn the Myopia Master® off,

Pull the power plug before inserting a printer paper. When
disconnecting electrical connections, pull on the respective plug and
not on the cable itself.
1
2
3
3 Chin rest
sec. 9.2, page 20.
71 / 92
