stepper motor control port. and PIN10-PIN13,PIN15 are input PINs, which can be set as probe,
limit, estop and home. See as table 2-1.
No.
1
2
3
4
5
6
7
Manual of NC200

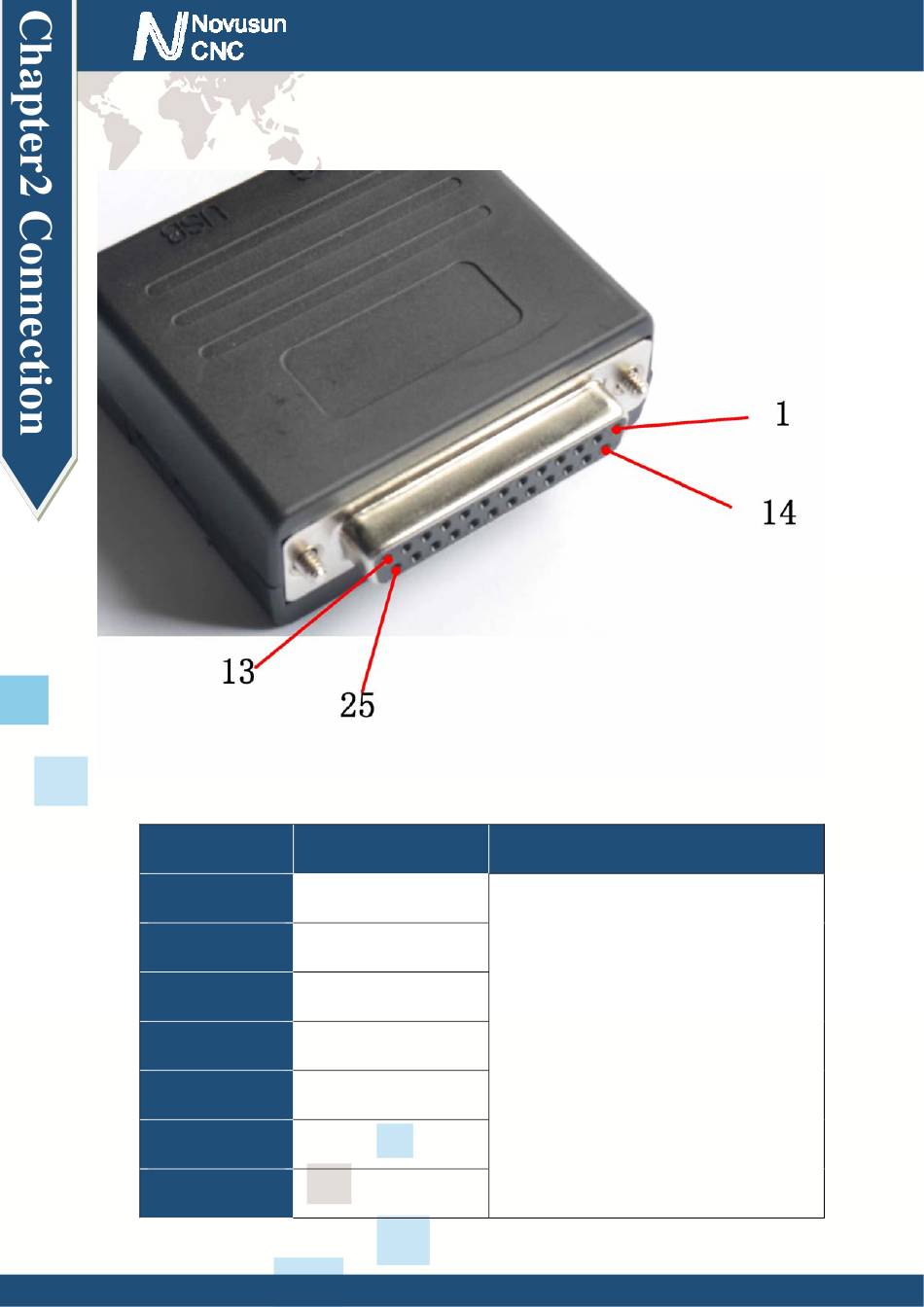

Figure2-2.
sequence of LPT port
INPUT & OUTPUT
OUTPUT PORT
OUTPUT PORT
OUTPUT PORT
OUTPUT PORT
OUTPUT PORT
OUTPUT PORT
OUTPUT PORT
- 6 -
Note
Can be set as usual output\stepper
motor controller port and spindle
PWM output
www.nvcnc.net
