Manual of NC200

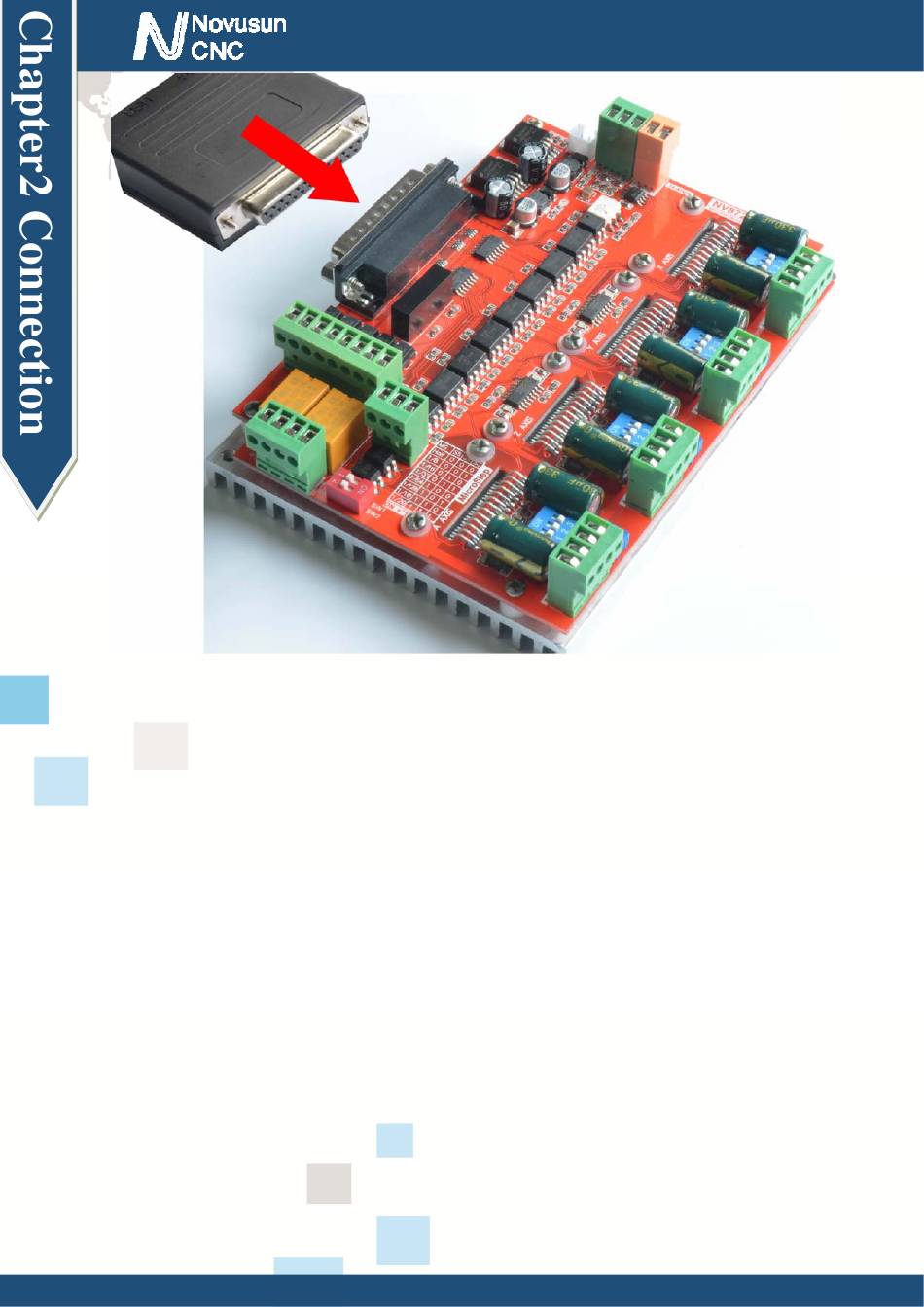

Figure2-3. Connect with Stepper driver board
2.2.2 MPG connection
As shown in Figure 2-2 marked 2 of the location of the serial port MPG, the port type is
RJ45, that is, the common standard network interface. Serial pulse generator pulse generator is the
standard pulse generator, the axis of choice, such as the choice of power through the serial port and
host interaction. Serial port hand pin, pin label reference figure 2-4, from left to right in order
PIN1-PIN8. Serial port hand pulse pin definition reference table 2-2. serial port manual pulse
using method reference serial port manual pulse user manual.
