Novusun CNC NC200 Manual page 11

No.
1
2
3
4
5
6
7
8
2.2.3 USB Port
As the Figure 2-1 show,The marked No. 3 port is USB communication port, NC200
communicate with mach 3 through it.
Manual of NC200

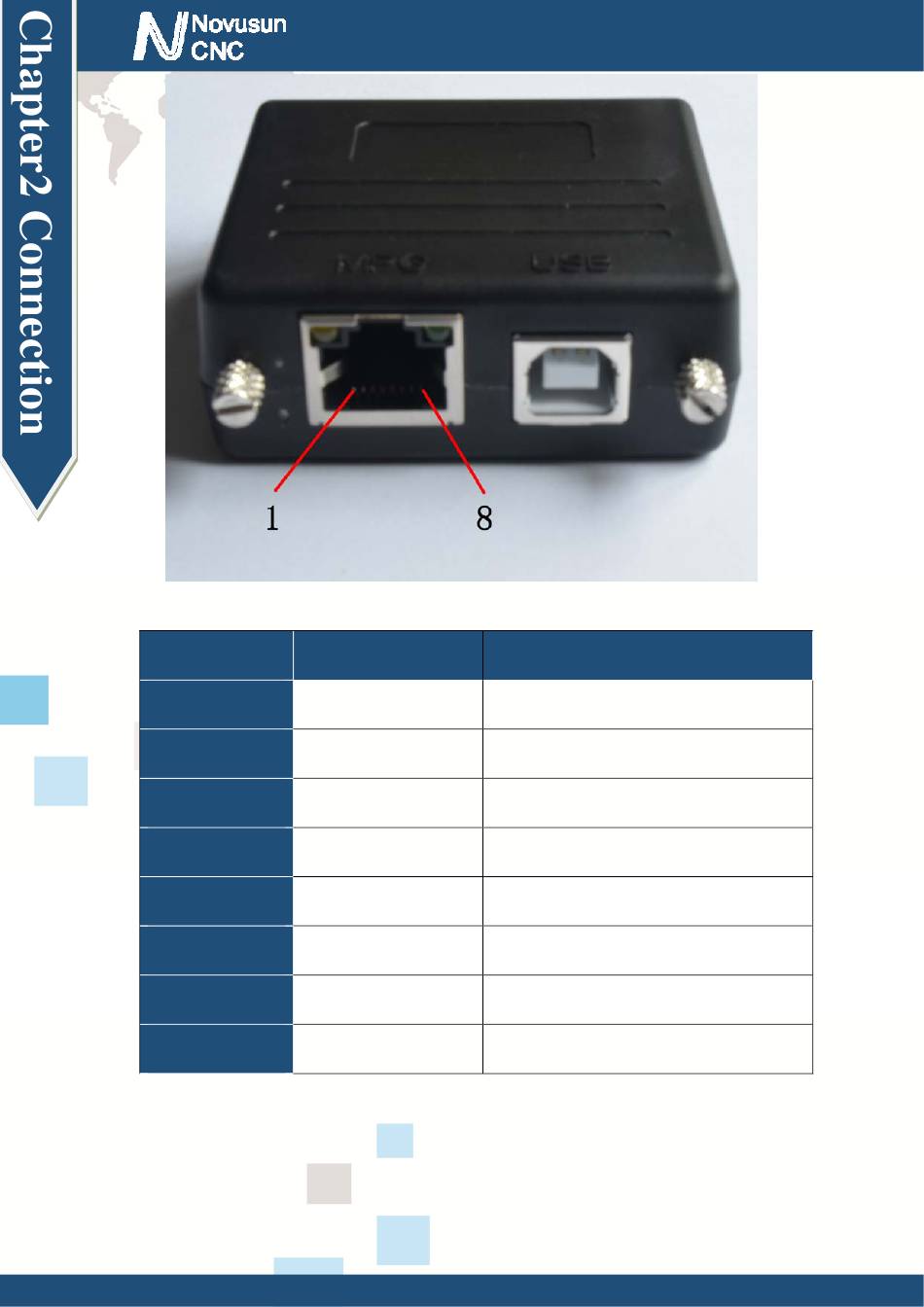

Figure2-4. Pins Number of MPG
Mark
GND
RXD
TXD
+5V
FHA+
FHA-
FHB+
FHB-
- 9 -
Definition
GND of MPG
Serial input communication port
Serial output communication port
5V power port
A+ of MPG
A- of MPG
B+ of MPG
B- of MPG
www.nvcnc.net
