Chapter 2.
2.1 Product connection define and method

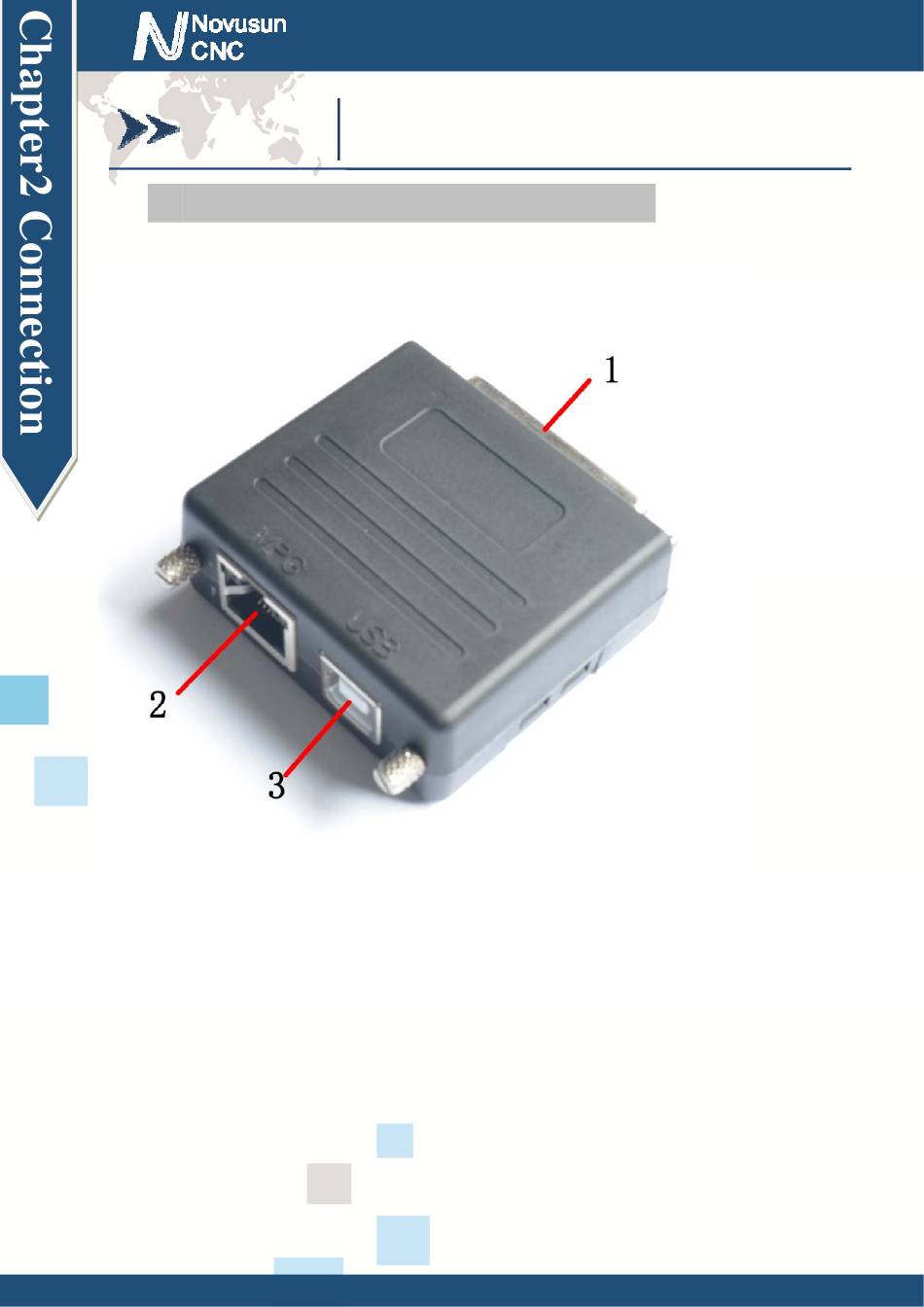

Figure2-1.
As the Figure 2-1 showed,the connection of the controller includes USB connection
interface, MPG interface and LPT controller port. Now we descript them in details as below.
2.2.1
LPT Controller interface
As Figure 2-1 showed,No.1 is LPT Controller interface. In the first row, from right to left,
it's PIN1 to PIN13; in the second row, from right to left, it's PIN14-PIN25.
PIN1-PIN9,PIN14,PIN16,PIN17 are output PINs, which can be set as PWM, usual output and
Manual of NC200
Connection
Product wiring section and interface summary
- 5 -
