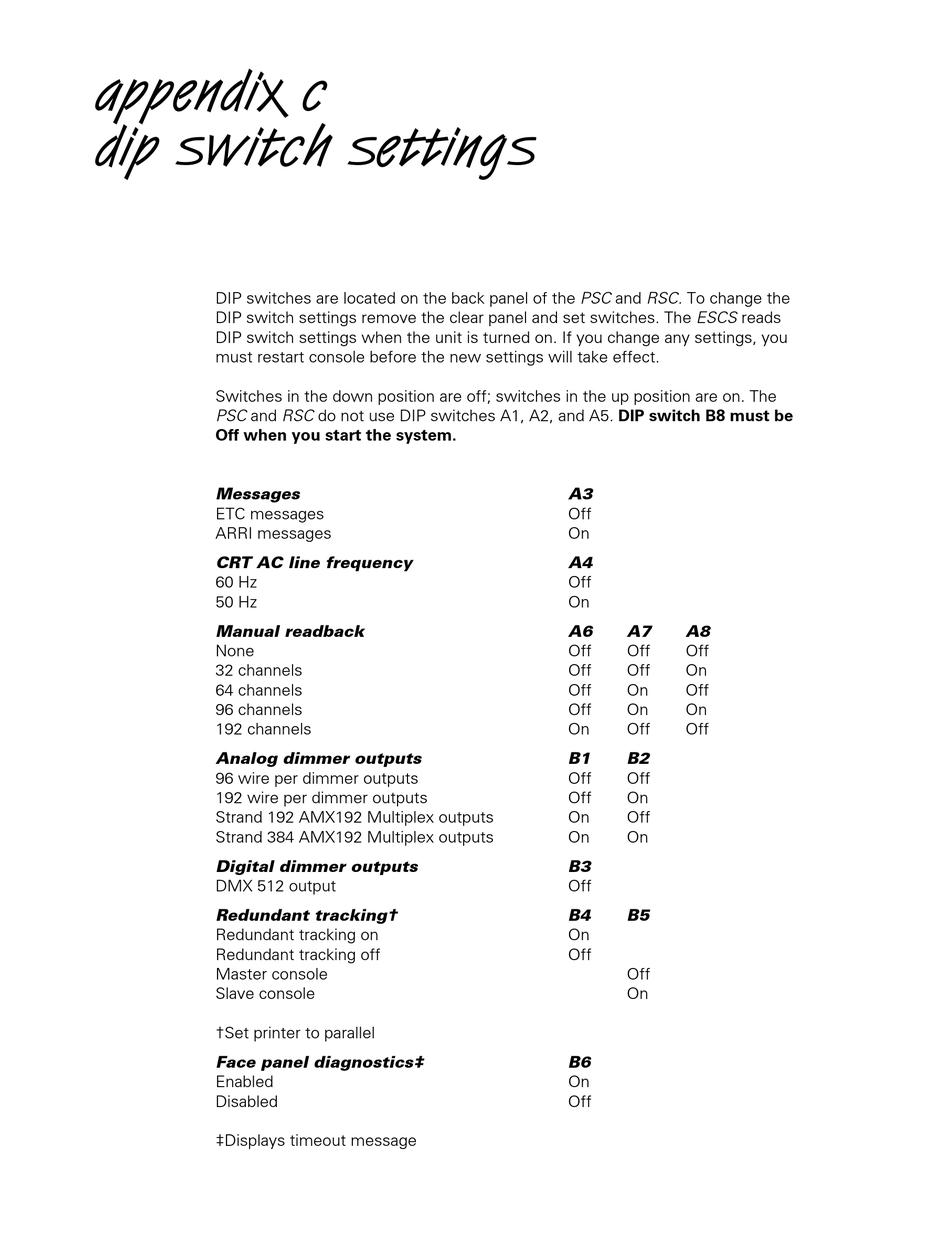

appendix c
dip switch settings
DIP switches are located on the back panel of the PSC and RSC. To change the
DIP switch settings remove the clear panel and set switches. The ESCS reads
DIP switch settings when the unit is turned on. If you change any settings, you
must restart console before the new settings will take effect.
Switches in the down position are off; switches in the up position are on . The
PSC and RSC do not use DIP switches A1, A2, and A5 . DIP switch B8 must be
Off when you start the system.
Messages
ETC messages
ARRI messages
CRT AC line frequency
60 Hz
50 Hz
Manual readback
None
32 channels
64 channels
96 channels
192 channels
Analog dimmer outputs
96 wire per dimmer outputs
192 wire per dimmer outputs
Strand 192 AMX192 Multiplex outputs
Strand 384 AMX192 Multiplex outputs
Digital dimmer outputs
DMX 512 output
Redundant tracking†
Redundant tracking on
Redundant tracking off
Master console
Slave console
†Set printer to parallel
Face panel diagnostics‡
Enabled
Disabled
‡Displays timeout message
A3
Off
On
A4
Off
On
A6 A7 A8
Off Off Off
Off Off On
Off On Off
Off On On
On Off Off
B1 B2
Off Off
Off On
On Off
On On
B3
Off
B4 B5
On
Off
Off
On
B6
On
Off
