ETC ECHO Inspire Programming Manual
Hide thumbs Also See for ECHO Inspire:

Advertisement

Quick Links

Inspire Station
Programming Guide
Software Version 2.0.1
Rev A
Copyright © 2015 Electronic Theatre Controls, Inc.
All rights reserved. Product information and specifications subject to change.
Part Number: 7186M1220-2.0.1 Rev: A
Released: 2015-02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECHO Inspire and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ETC ECHO Inspire

  • Page 1 Inspire Station Programming Guide Software Version 2.0.1 Rev A Copyright © 2015 Electronic Theatre Controls, Inc. All rights reserved. Product information and specifications subject to change. Part Number: 7186M1220-2.0.1 Rev: A Released: 2015-02...
  • Page 2 United States and other c ountries. All other trademarks, both marked and not marked, are the property of thei r respective owners. ETC i ntends thi s document, whether pri nted or electroni c, to be pri nted i n its entirety.
  • Page 3: Table Of Contents

    Document Conventions .......1 Help from ETC Technical Services......2 Overview .
  • Page 4 4 Button and Fader ........25 Preset Control Mode .
  • Page 5: Introduction

    Introduction Welcome to the Echo Inspire Station Programming Guide. This document will guide you in the programming and configuration of your Echo Inspire Stations, including the 1 button, 2 button, 4 button, 6 button, 8 button, and the 4 button and fader station.
  • Page 6: Help From Etc Technical Services

    To search more widely, try the ETC website at www.etcconnect.com. If none of these resources are sufficient, contact ETC Technical Services directly at one of the offices identified below. Emergency service is available from all ETC offices outside of normal business hours.
  • Page 7: Overview

    Reference Station Functionality page 13 for detailed information about each station type and its possible function settings or download the Inspire Station data sheet located on the ETC website www.etcconnect.com for the complete listing including model and ordering information. Overview...
  • Page 8: Station Configuration

    8 - Restore Defaults Settings on page for more information. LISTED IND. CONTROL EQUIP 9Z49 ENERGY MGMT. EQUIP Also reference the Echo Inspire Station Installation Guide for detailed information regarding these switches and settings. rear of station Inspire Station Programming Guide...
  • Page 9: Preset Control Mode

    Preset Control Mode Preset control mode on an Inspire station allows you to perform preset related actions such as preset toggle, Off, record (snapshot levels), space raise / lower, and sequence control (1 button station only). To place your station in preset control mode, set the Function switch to Preset mode by sliding the switch to the highest position.
  • Page 10: Sequence Control

    Sequence Control Sequence control is available using the 1 button station in conjunction with ETC power control products that support sequences. Dip switch 1 must be set to the On position to enabled sequence mode. For more information Dip Switch Settings...
  • Page 11: Zone Control Mode

    Zone Contro l Mode Zone control mode on an Inspire station allows you to manually control the level of a zone using on / off and raise / lower functionality. To place the station in zone control mode, set the Function switch to Zone by sliding the switch to its lowest position.
  • Page 12 Button Control With a Zone Selected The selected zone button LED lights blue to indicate its active state. • A single push of the raise or lower button increments/decrements the level. • Push and hold the raise or lower button to fade the level gradually. •...
  • Page 13: Record/Program Mode

    Record/Program Mode Program mode allows adjustment of the consecutive range of presets and zones assigned to the station by allowing you to set the starting preset or zone, respectively. Enter program mode by pressing and holding the [Record / Program Mode] for three seconds. The Function switch determines whether edits are made to the consecutive range of presets or zones.
  • Page 14 Program Zone Start Step 1: Set the station into Zone control mode by sliding the Function switch to its lowest position. Step 2: Press and hold the [Record / Program Mode] button for three seconds to enter Program mode. The “Mode” LED illuminates (steady amber) and the first zone control button LED flashes the current (first) zone controlled.
  • Page 15: Space Combine (4 Button Only)

    Space Combine (4 button only) Placing the 4 button station (model # E1004) in space combine mode, accomplished by setting dip switch 3 On, allows for combined control of multiple spaces. For more information on dip switch settings, see Dip Switch Settings page In space combine mode, the zones with the same number but in different spaces will respond identically when the spaces are combined.
  • Page 16: Program Mode For Space Combine

    Program Mode for Space Combine Program mode behaves in a slightly different manner when the 4 button station is set to space combine mode. Step 1: Press and hold the [Record / Program Mode] button for three seconds to enter Program mode.
  • Page 17: Appendix A Station Functionality

    A p p e n d i x A Station Functionality This appendix contains the following sections: • 1 Button Station ........14 •...
  • Page 18: Button Station

    1 Button Station The 1 button Inspire station offers control of a single preset or zone as determined by the Function switch. Factory Defaults The 1 button Inspire station ships from the factory in the following default settings: • Rotary switches are set to Address 1, Space 1. Reference Rotary Switch Assignments page...
  • Page 19: Zone Control Mode

    Zone Control Mode In Zone control mode, the 1 button station supports the following button actions: Push Butt Toggle zone 1 Hold Butt Zone 1 raise Double-tap Double-tapping the button toggles the zone to its full or off, using a 1/2 second fade time. Butt Toggle zone 1 Station Functionality...
  • Page 20: Custom Control Mode

    Custom Control Mode In Custom control mode, the 1 button station provides the following button actions: Push Butt Toggle zone 2 Hold Butt Zone 2 raise Double-tap Double-tapping the button toggles the zone to its full or off, using a 1/2 second fade time. Butt Toggle zone 2 Note:...
  • Page 21: Button Station

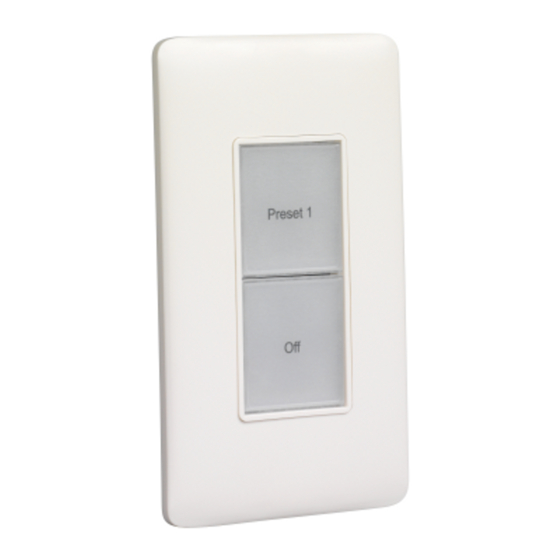

    2 Button Station The 2 button Inspire station offers control of two presets or 1 zone as determined by the Function and dip switch settings. Factory Defaults The 2 button Inspire station ships from the factory in the following default settings: •...
  • Page 22: Zone Control Mode

    Zone Control Mode In Zone control mode, the 2 button station supports the following button actions: Push Butto Zone 1 raise Butto Zone 1 lower Hold Butto Zone 1 raise Butto Zone 1 lower Double-tap Double-tapping the button toggles the zone to its extents using a 1/2 second fade time. Butto Zone 1 to full Butto...
  • Page 23: Custom Control Mode

    Custom Control Mode In Custom control mode, the 2 button station provides the following button actions: Push Butto Zone 2 raise Butto Zone 2 lower Hold Butto Zone 2 raise Butto Zone 2 lower Double-tap Double-tapping the button toggles the zone to its extents using a 1/2 second fade time. Butto Zone 2 to full Butto...
  • Page 24: Button Station

    4 Button Station The 4 button Inspire station offers control of four presets or two zones, or space combine actions for up to five consecutive spaces as determined by the Function and dip switch settings. Factory Defaults The 4 button Inspire station ships from the factory in the following default settings: •...
  • Page 25: Zone Control Mode

    Zone Control Mode In Zone control mode, the 4 button station supports the following button actions: Push Raise selection Select zone 1 Button Select zone 2 Button Lower selection Button Hold Raise selection Select zone 1 Button Select zone 2 Button Lower selection Button...
  • Page 26: Custom Control Mode

    Custom Control Mode In Custom control mode, the 4 button station supports the following button actions: Push Raise selection Select zone 3 Button Select zone 4 Button Lower selection Button Hold Raise selection Select zone 3 Button Select zone 4 Button Lower selection Button...
  • Page 27: Space Combine In Preset Control Mode

    Space Combine in Preset Control Mode Setting the Function switch to Preset control mode with dip switch # 3 On, enables space combine mode on the 4 button station. The 4 button station in space combine mode supports the following button actions: Push Combine 1 &...
  • Page 28: Space Combine In Zone Control Mode

    Space Combine in Zone Control Mode In Zone control mode and dip switch 3 On, which enables space combine mode, the 4 button station supports the following button actions: Push Combine 1 & 2 Combine 2 & 3 Button Combine 3 & 4 Button Combine 4 &...
  • Page 29: Button And Fader

    4 Button and Fader The 4 button 1 fader Inspire station offers control of up to five presets or four zones as determined by the Function and dip switch settings. Factory Defaults The 4 button 1 fader Inspire station ships from the factory in the following default settings: •...
  • Page 30: Zone Control Mode

    Zone Control Mode In Zone control mode, the 4 button 1 fader station support the following button and fader actions: Push Button Button Select zone 1 select zone 2 Button Button Select zone 3 Select zone 4 Rotate clockwise - raise selection *Selection toggle Rotate counter - lower selection Button 1...
  • Page 31: Custom Control Mode

    Custom Control Mode In Zone control mode, the 4 button 1 fader station supports the following button and fader actions: Push Button Button Select zone 5 select zone 6 Button Button Select zone 7 Select zone 8 Rotate clockwise - raise selection *Selection toggle Rotate counter - lower selection Button 1...
  • Page 32: Button

    6 Button offers control of up to six presets or four The 6 button Inspire station zones as determined by the Function and dip switch settings Factory Defaults The 6 button Inspire station ships from the factory in the following default settings: •...
  • Page 33: Zone Control Mode

    Zone Control Mode In Zone control mode, the 6 button station supports the following button actions: Push Raise selection Butto Butto Butto Select zone 2 Select zone 1 Butto Butto Select zone 4 Select zone 3 Lower selection Butto Hold Raise selection Butto Butto...
  • Page 34: Custom Control Mode

    Custom Control Mode In Custom control mode, the 6 button station supports the following button actions: Push Raise selection Butto Butto Butto Select zone 5 Select zone 6 Butto Butto Select zone 7 Select zone 8 Lower selection Butto Hold Raise selection Butto Butto...
  • Page 35: Button

    8 Button offers control of up to eight presets or The 8 button Inspire station four zones as determined by the Function and dip switch settings Factory Defaults The 8 button Inspire station ships from the factory in the following default settings: •...
  • Page 36: Zone Control Mode

    Zone Control Mode In Zone control mode, the 8 button station supports the following button actions: Push Zone 1 select Butto Zone 2 select Zone 3 select Butto Butto Zone 4 select Zone 5 select Butto Butto Zone 6 select Raise selection Butto Butto...
  • Page 37: Custom Control Mode

    Custom Control Mode In Custom control mode, the 8 button station supports the following button actions: Push Zone 7 select Butto Zone 8 select Zone 9 select Butto Butto Zone 10 select Zone 11 select Butto Butto Zone 12 select Raise selection Butto Butto...
  • Page 38 Inspire Station Programming Guide...
  • Page 39: Appendix B Station Miscellaneous

    A p p e n d i x B Station Miscellaneous This appendix contains the following sections: • Remove or Install the Wall Plate ......36 •...
  • Page 40: Remove Or Install The Wall Plate

    Remove or Install the Wall Plate Remove Wall Plate After station installation is complete, to gain further access to the Record/Program Mode features and set the station Function switch, you must first remove the station wall plate. The wall plate is secured to the station with magnets that are attached to the wall plate. Step 1: Using your index finger and thumb, lift the left and right side edges of the bottom of the wall plate, disengaging the magnets.
  • Page 41: Install Button Legends

    Note: Customize and print your own button legends on standard transparency. Download the button legend template provided on the ETC website www.etcconnect.com. Each button can have a legend, installed beneath the button lens. To remove, install, or replace a button legend you must first remove the bezel and button lens from the station electronics.
  • Page 42: Rotary Switch Assignments

    Rotary Switch Assignments Two rotary switches on the rear panel of the station provide for station address and space assignment. Each station must be set to a unique station address for the assigned space. By default, these switches are set to Station Address 1, Space 1. Events and commands are shared by all devices within an assigned space.
  • Page 43: Dip Switch Settings

    Note: ETC recommends that you reset power to the station after changing a dip switch setting. Switch # Use When enabled, switch 1 provides “Use Off” functionality or “Sequence toggle”, depending on the station type.
  • Page 44 Service: (DE) techserv-hoki@etcconnect.com   Hong Kong Tel +852 2799 1220 Service: (Asia) service@etcasia.com   Web: www.etcconnect.com Copyright © 2015 ETC. All Rights Reserved. Product information and specifications subject to change.   7186M1220-2.0.1 Rev A Released 2015-02  ...
