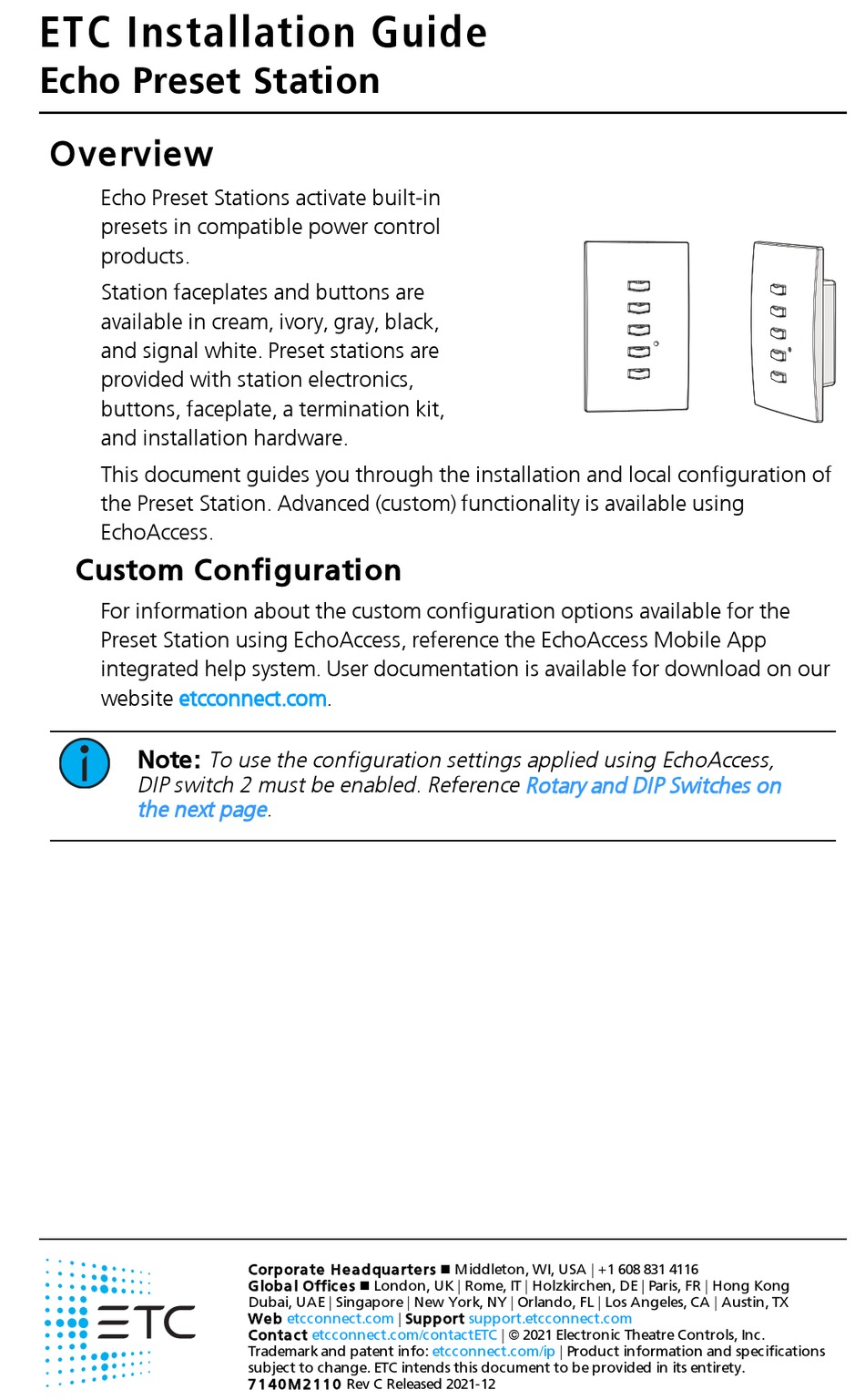

ETC Installation Guide

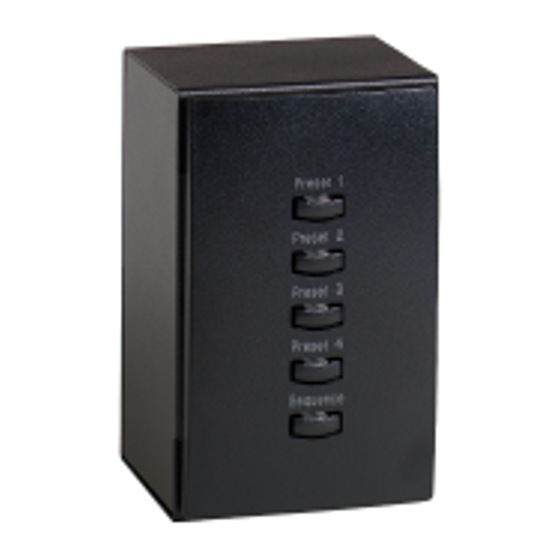

Echo Preset Station

Overview

Echo Preset Stations activate built-in
presets in compatible power control
products.
Station faceplates and buttons are
available in cream, ivory, gray, black,
and signal white. Preset stations are
provided with station electronics,
buttons, faceplate, a termination kit,
and installation hardware.
This document guides you through the installation and local configuration of
the Preset Station. Advanced (custom) functionality is available using
EchoAccess.

Custom Configuration

For information about the custom configuration options available for the
Preset Station using EchoAccess, reference the EchoAccess Mobile App
integrated help system. User documentation is available for download on our
website etcconnect.com.
Note:
DIP switch 2 must be enabled. Reference
the next
To use the configuration settings applied using EchoAccess,
page.
Corpora te He a dqua rte rs n Middleton, WI, USA | +1 608 831 4116
Globa l Offic e s n London, UK | Rome, IT | Holzkirchen, DE | Paris, FR | Hong Kong
Dubai, UAE | Singapore | New York, NY | Orlando, FL | Los Angeles, CA | Austin, TX
We b
etcconnect.com
Conta c t
etcconnect.com/contactETC
Trademark and patent info:
subject to change. ETC intends this document to be provided in its entirety.
7 1 4 0 M 2 1 1 0 Rev C Released 2021-12
| Support
support.etcconnect.com
| © 2021 Electronic Theatre Controls, Inc.
etcconnect.com/ip
| Product information and specifications

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Echo and is the answer not in the manual?

Questions and answers

Related Manuals for ETC Echo

Summary of Contents for ETC Echo

  • Page 1 | © 2021 Electronic Theatre Controls, Inc. Trademark and patent info: etcconnect.com/ip | Product information and specifications subject to change. ETC intends this document to be provided in its entirety. 7 1 4 0 M 2 1 1 0 Rev C Released 2021-12...
  • Page 2 EchoConnect is a bi-directional protocol that uses one pair of wires (data + and data -) for both data and power. ETC recommends using Belden 8471 Class 2 wire (or approved equal – see the ETC cable cross database etcconnect.com/Support/Cable-Cross-Database for equal alternatives). The total combined length of an EchoConnect wire run using Belden 8471 may not exceed 500 m (1,640 ft), with a maximum distance of 400 m (1,312 ft)
  • Page 3 ETC Installation Guide Echo Preset Station By default, these switches are set to Address 1 and Space 1. Station commands are shared by all devices within an assigned space. 1. Set the Space rotary switch to the desired number (1 through 16) for the space you want the station to provide lockout.
  • Page 4 ETC Installation Guide Echo Preset Station Installation Installation should follow all local codes and standard electrical practices. The back box should be installed level and square for best results. Ensure that the back box is clean and free of obstructions.
  • Page 5 ETC Installation Guide Echo Preset Station 3. Terminate EchoConnect wires. EchoConnect is topology free; you may install the wires in any combination of bus, star, loop, or home-run. a. Strip 11 mm (7/16 in) from the ends of each power pigtail wire provided in the termination kit and from the installed control wires.
  • Page 6 ETC Installation Guide Echo Preset Station Install the Faceplate The faceplate is secured to the station with two magnets that are located on the bottom edge of the faceplate. 1. Align the top of the faceplate approximately 20 degrees to the station.
  • Page 7 ETC Installation Guide Echo Preset Station Settings Settings for Basic config mode (DIP switch 2 set to Off) can be modified locally, including changing which presets are assigned to the station, changing the button LED color, and preset recording at the station.
  • Page 8 Service If you have any difficulties installing your system or with system startup please, contact ETC Technical Services at the office nearest you. ETC contact information is located at the bottom of page 1 Echo Preset Station...
