Assembling Lamp Socket - ETC Source Four Assembly Manual

Reference Part
Number Number
20 HW2125
21 HW2181
22 HW3103
23 7060A3204
24 HW5123
25 HW534
26 HW746
27 HW747
28 HW748
29 HW749
30 HW8209
31 W6195
32 W689-1
Note:

Assembling lamp socket

Tools Required:
• Open-end adjustable wrench or a 7/16" socket
• Needle-nose pliers
• #2 Phillips screwdriver
1: Set the crossbar of the retainer clip (9) under the two hooks on the clip bracket as shown in
Figure 3
2: Place the Tinnerman clip (30) over the retainer clip crossbar between the two hooks and press it
down firmly until it snaps into place.
6
Screw, 6-32 x 3/8" PhFHTC (lamp blocking screw not pictured)
Screw, self tap, 6-32 x 5/8, black zinc
Screw, 8-32 x 5/8 PhFHMS, black zinc
Bolt, 1/4-20 x 1 3/4", full thread
Nut, hex, 9/16-18, black zinc
Nut, hex, 1/4-20, black zinc
Screw Retainer Flat 12-6-1
Washer, wave
Spring, compression CO720-072
Spring Ground
Clip, Tinnerman
Sleeve, fiberglass 39", 5/16", Black
Sleeve, fiberglass 39", 5/16", White
Any part that is indicated as "Black" may be also ordered in white or silver. When
ordering white, use the part number suffix -1, and for silver, use the part number
suffix -5.
30
9
.
Description
Quantity
Required
1
4
2
1
1
1
1
1
1
1
1
1
1

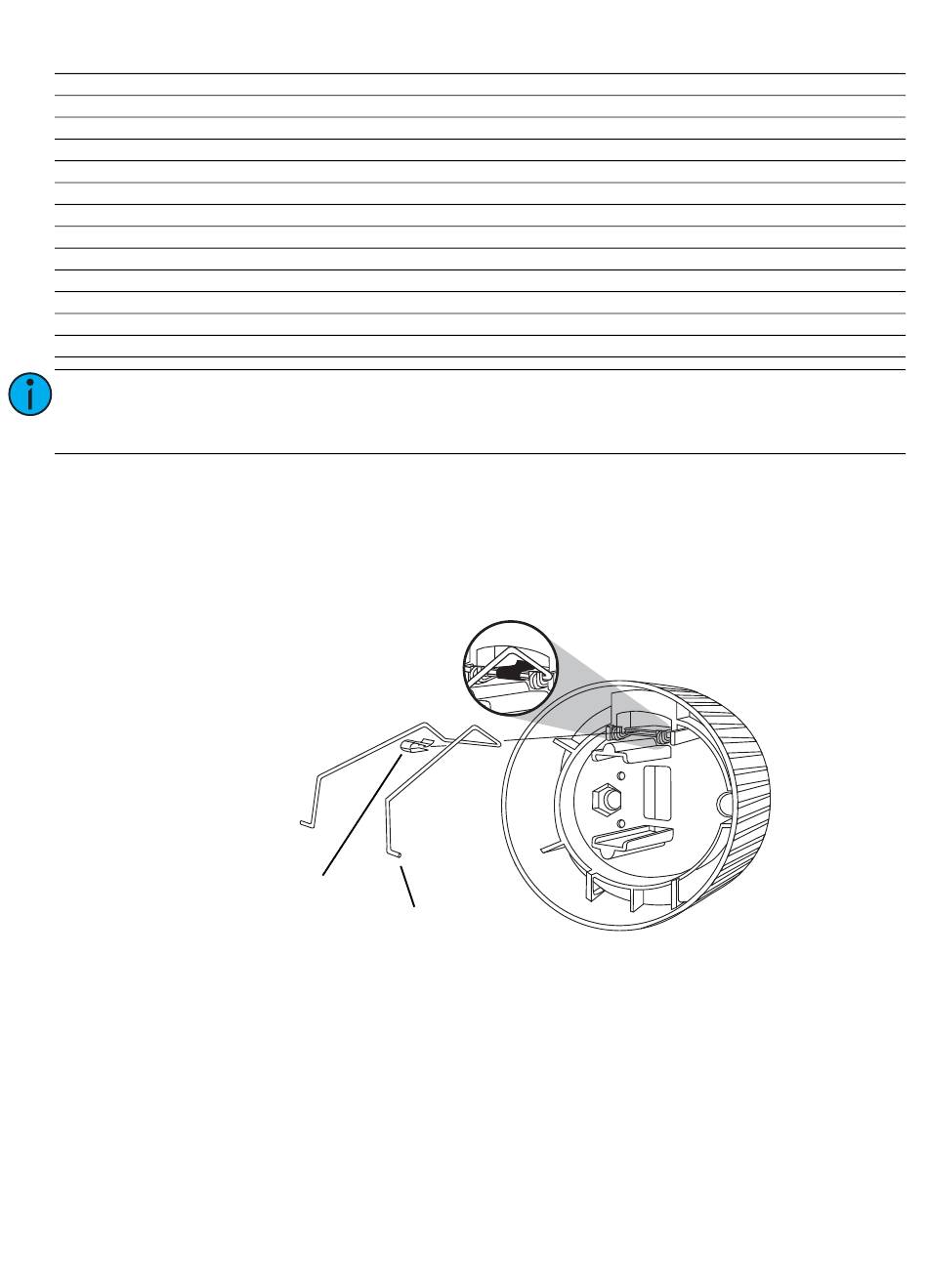

Figure 3
Source Four Assembly Guide
