StarTech.com SECTBLTDT Quick Start Manual page 2

For Tablet sizes of 7.9 - 10 Inches (200.66 - 254 mm), use the Lower Hole.
--Or--
For Tablet sizes of 10.1 - 13 Inches (256.54 - 330.2 mm), use the Upper Hole.
2. Insert the M4 Screw through the Tablet Holder, the Washer, and into the Pivot
Point on the Tablet Stand.
3. Tighten the M4 Screw, using a Phillips Head Screwdriver.
4. For Tablet sizes of 7.9 - 10 Inches (200.66 - 254 mm), slide and hold the Tab on one
of the bottom Tablet Holder Arms while pushing the Tablet Holder Arm inwards to
collapse the Tablet Holder Arm, then release the Tab. (Figure 3)
--Or--
For Tablet sizes of 10.1 - 13 Inches (256.54 - 330.2 mm), slide and hold the Tab on one
of the bottom Tablet Holder Arms while pulling the Tablet Holder Arm outwards to
extend the Tablet Holder Arm, then release the Tab. (Figure 4)
5. Repeat step 7 for the second bottom Tablet Holder Arm.

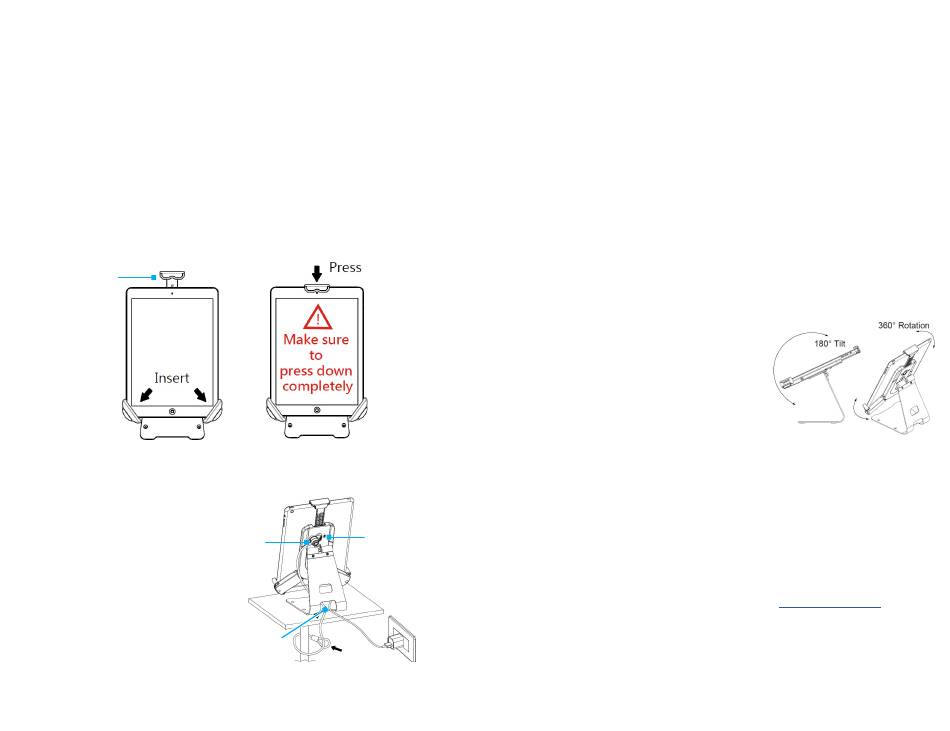

Insert the Tablet into the Tablet Holder
Tablet Holder Arm
(Top)
Figure 5
1. Insert the Tablet into the Tablet Holder Arms, bottom-end first. (Figure 5)
2. Press the top Tablet Holder Arm down until it is seated against the top of the Tablet.
(Figure 6)
Secure the Tablet and Mount
1. Wrap the looped end of the K-Slot Style Laptop Lock around the Mounting Point
(e.g. table leg, fixed desk mounting point, etc.) and feed the lock head of the K-Slot
Style Laptop Lock through the looped end. (Figure 7)
Figure 6
K-Slot Style
Lock Slot
Laptop Lock
Cable
Management
Hole
Figure 7
2. Route the K-Slot Style Laptop Lock Cable through one of the Cable Management
Holes in the rear of the Tablet Stand.
3. Insert the K-Slot Style Laptop Lock into one of the Lock Slots in the rear of the
Secure Articulating Universal Tablet Mount.
4. (Optional -- for Mounting Surfaces made of wood) Place the Tablet Mount
Assembly onto the desired Mounting Surface and mark the location of the four
Screw Holes in the Tablet Stand with a Writing Utensil.
5. Remove the Tablet Mount Assembly and drill four 2.5 mm Pilot Holes into the
marked locations on the Mounting Surface, using an Electric Drill.
6. Place the Tablet Mount Assembly back onto the desired Mounting Surface and
align the four Holes in the Tablet Stand with the four Pilot Holes in the Mounting
Surface.
7. Insert the four 3x12 mm Screws through the Tablet Stand and into the Tablet
Surface.
8. Tighten the 3x12 mm Screws, using a Phillips Head Screwdriver.
Operation
Note: Ensure the Cables are not tangled before completing all adjustments.
Adjust the Tilt
Place one hand on the top edge of the Tablet and the
other hand on the bottom edge of the Tablet. Apply
light pressure to tilt the Tablet either upwards or
downwards. (Figure 8)
Adjust the Rotation
• Place one hand on the left side of the Tablet and
the other hand on the right side of the Tablet. Apply
light pressure to rotate the Tablet into a portrait or
landscape view.
Warning Statements
Make sure that you assemble this product according to the instructions.
This product is intended for indoor use only and should not be used outdoors.
Pinch hazard! Ensure fingers are not placed along any of the moving parts when making adjustments.
