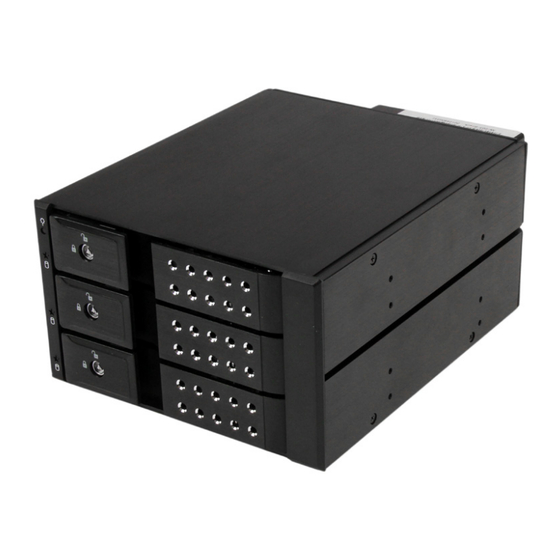

3 Drive Trayless 3.5" SATA/SAS Mobile Rack
HSB3SATSASBA
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 02/12/2018
Advertisement
Table of Contents
Related Manuals for StarTech.com STCHSB3SATSASBA
Summary of Contents for StarTech.com STCHSB3SATSASBA
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 02/12/2018...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Product Diagram ..................1 Front View ..............................1 Rear View ..............................1 Introduction ....................2 Packaging Contents ..........................2 System Requirements ..........................2 Installation ....................3 Hardware Installation ..........................3 3.5in Hard Drive Installation ........................4 3.5in Hard Drive Removal ........................5 How to Use ....................6 Connecting the Hard Drive ........................ -
Page 4: Product Diagram
Product Diagram Front View 1. 1 x Power LED indicator 2. 3 x 3.5” Drive bay key hole 3. 3 x /3.5in LED indicators 4. 3 x 3.5” Drive bay Rear View 1. 2 x SATA Drive Power Connector ports 2. -
Page 5: Introduction
Introduction Packaging Contents • 1 x 3 SATA HDD Backplane • 3 x 18” SATA Cable • 2 x Bay Key • 1 x Installation Screw kit • 1 x Instruction Manual System Requirements • 1X Computer System with SATA connectivity and two available 5.25” bays •... -
Page 6: Installation
Installation Hardware Installation 1. Ensure your computer system is powered down, and the power cable has been disconnected from the Power Supply. 2. Open your computer case (refer to the computer user manual for details), and place the 3.5in SATA/SAS HDD Backplane into two available 5.25” slots, lining up the side installation holes on the HSB3SATSASBA (pictured below), with installation holes on the 5.25”... -
Page 7: In Hard Drive Installation
3.5in Hard Drive Installation 1. Insert either of the included bay keys into the your desired 3.5in Drive bay key holes depending on which drawer you intend to install the drive into. And Turn the key clockwise into the unlock position. 2. -
Page 8: In Hard Drive Removal
3.5in Hard Drive Removal 1. Insert either of the included bay keys into the “3.5in/3.5in Drive bay key holes depending on which type of drive you intend to install. And Turn the key clockwise into the unlock position. 2. Pull the drive door handle to open the drive bay 3. -
Page 9: How To Use
How to Use Connecting the Hard Drive Once the drive has been installed in the drive bay, the drivers will install automatically, and the inserted drive will be accessible as though it were installed within the system. Note: some operating systems may require that the system be scanned for hardware changes from within device manager, for the newly connected drive(s) to be recognized. -
Page 10: Initializing The Hard Drive
Initializing the Hard Drive 1. If the SATA Hard Drive is blank it may need to be initialized and formatted before use. From the main Windows desktop, right-click on “My Computer” (“Computer” in Vista/ 7 / 8), then select Manage. In the new Computer Management window, select Disk Management from the left window panel. -
